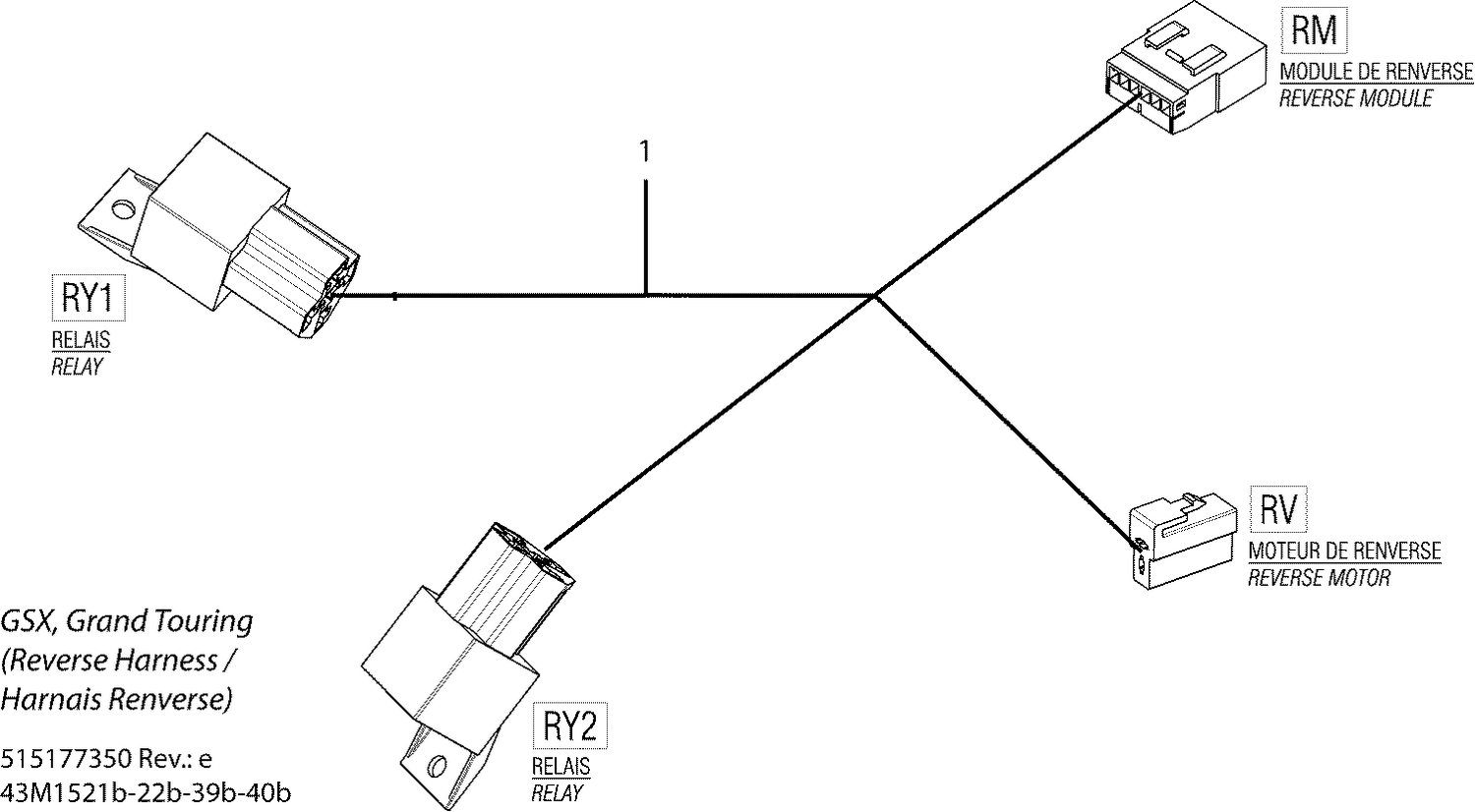

10- Electrical Harness Reverse_43M1540b
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| RM | 515175232 | Male Terminal |
| RM | 515175662 | Male Terminal Housing, 6 Circuits |
| RV | 515175282 | Female Terminal |
| RV | 515176550 | Female Terminal Housing |
| RY1 | 409209900 | Female Housing, 5 Circuits |
| RY1 | 561503100 | FEMALE TERMINAL - Call your local BRP dealership |
| RY1 | 710010053 | Relay This part replaces 515177041. |
| RY2 | 409209900 | Female Housing, 5 Circuits |
| RY2 | 710010053 | Relay This part replaces 515177041. |
