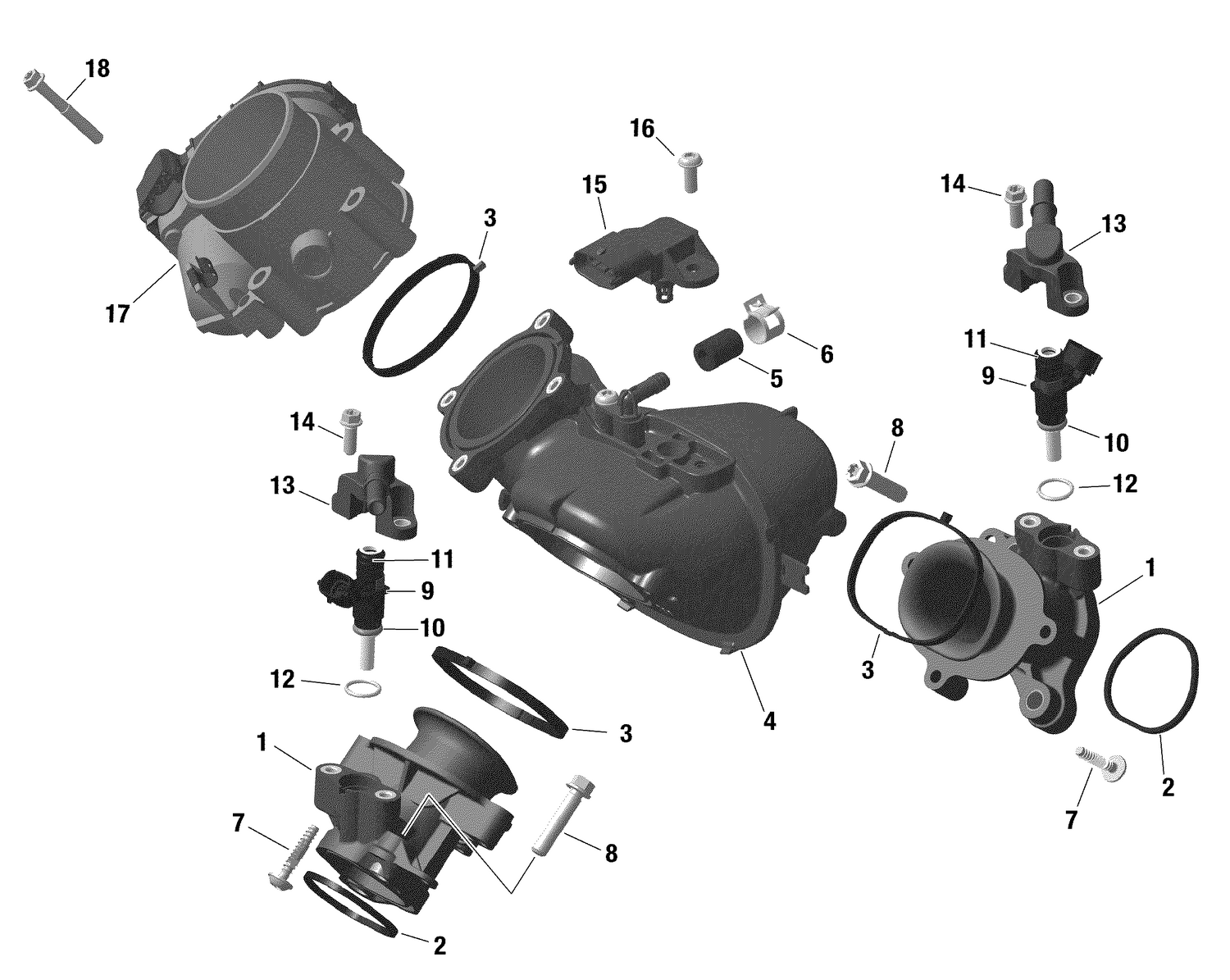

01- Rotax - Air Intake Manifold And Throttle Body
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420267610 | Air Intake Manifold |
| 2 | 420630642 | Gasket |
| 3 | 420431900 | Gasket |
| 4 | 420667798 | Air Inlet Manifold |
| 5 | 420201910 | Cap |
| 6 | 420853512 | Spring Type Clamp 14 |
| 7 | 420441575 | Torx Screw 6X30 |
| 8 | 420641188 | Torx Flange Screw M8 X 35 |
| 10 | 420431890 | O-Ring |
| 11 | 420631220 | O-Ring |
| 12 | 420631296 | O-Ring |
| 13 | 420874901 | Fuel Rail |
| 14 | 420440162 | Torx Flange Screw M6 X 16 |
| 15 | 707000995 | Pressure And Temperature Sensor |
| 16 | 420641588 | Torx Flange Screw M6 X 16 |
| 17 | 420892596 | Throttle Body Socket Ass'y |
