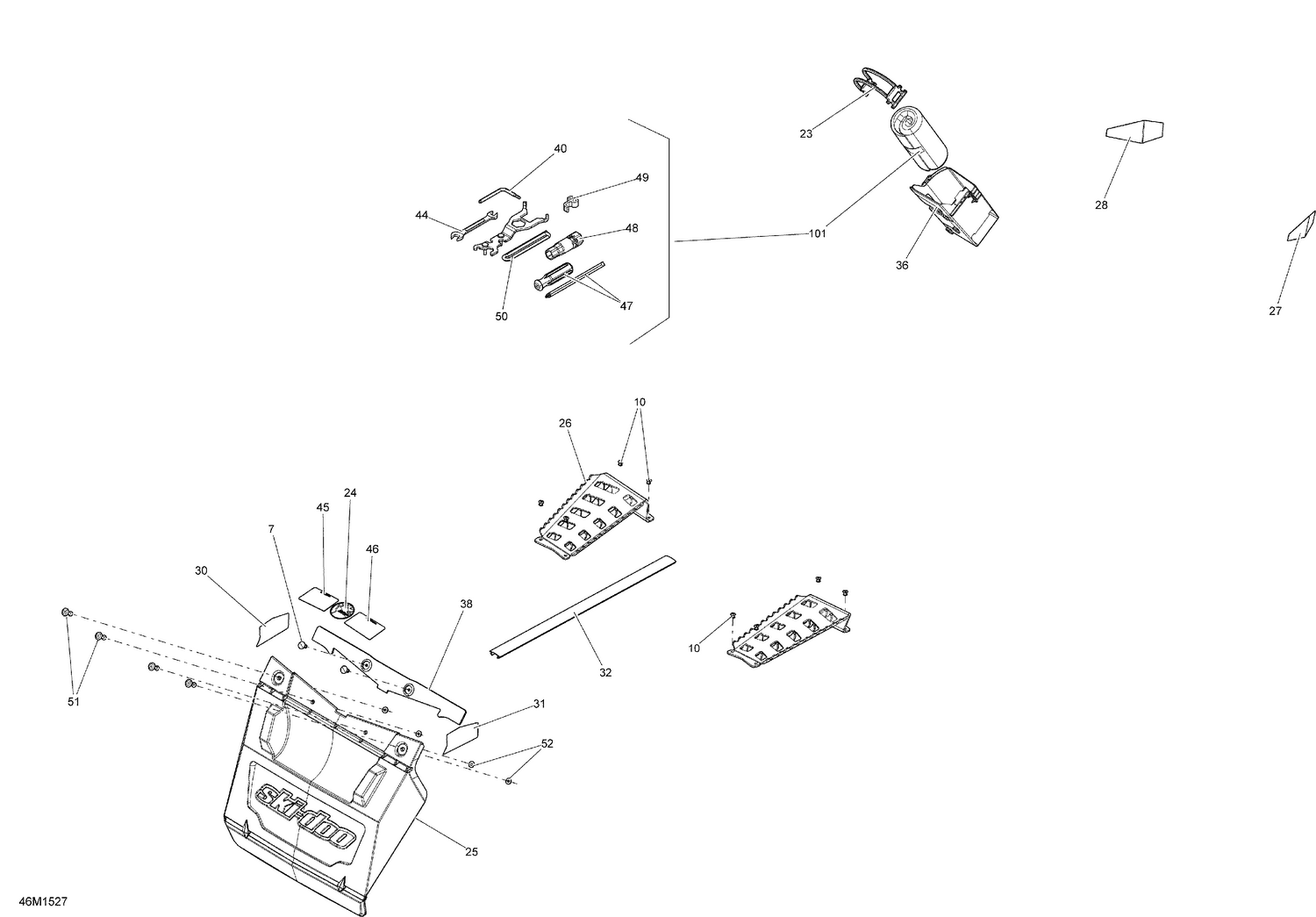

09- Utilities _46M1527
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 10 | 390402200 | Pop Rivet 3/16" |
| 23 | 520000528 | Latch |
| 24 | 219903947 | BRP Logo 48 mm |
| 25 | 520000659 | Snow Guard |
| 26 | 520000887 | RH Footrest |
| 26 | 520000888 | LH Footrest |
| 27 | 520000718 | Yellow, RH Front Reflector |
| 28 | 520000719 | Yellow, LH Front Reflector |
| 30 | 520000880 | Red, LH Rear Reflector |
| 31 | 520000881 | Red, RH Rear Reflector |
| 32 | 520000829 | Radiator Trim |
| 36 | 520000894 | Tool Kit Rack |
| 38 | 520000953 | ESTHETIC PLATE - Call your local BRP dealership |
| 40 | 520001142 | Spacing Tool |
| 44 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 45 | 516006431 | LH Warning Decal, Safety |
| 46 | 516005587 | RH Warning Decal, Safety |
| 47 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 48 | 529000046 | Set Key, 16/21 mm |
| 49 | 529000060 | Starter Grip |
| 50 | 219704403 | Was 412500100 Rope-Starter |
| 51 | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
| 52 | 517124300 | Washer |
