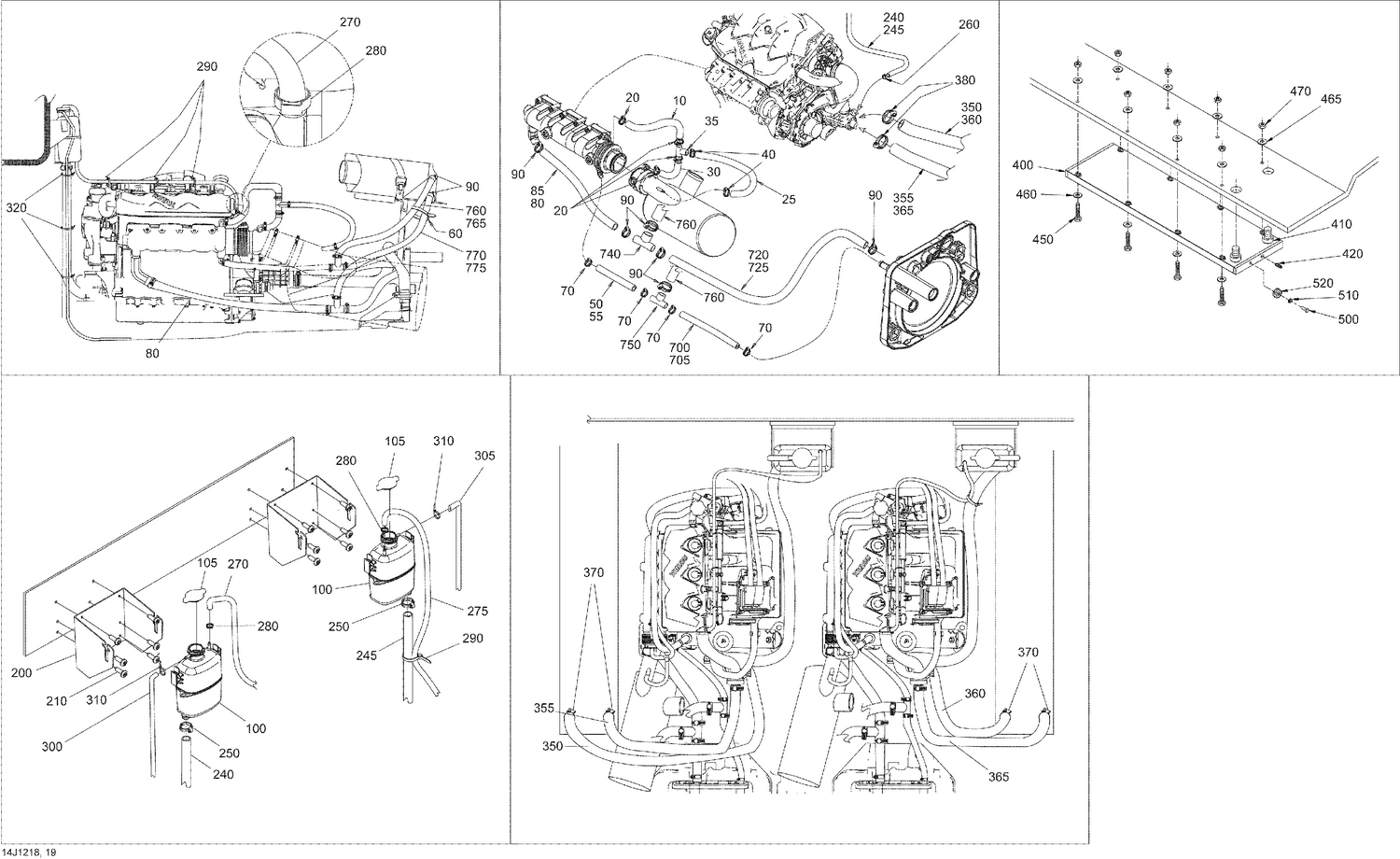

01- Cooling System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000484 | Hose, Bypass Upper This part replaces 276000244. |
| 20 | 293650172 | Tridon Gear Clamp |
| 25 | 276000246 | Formed Hose |
| 30 | 276000455 | Hose, Bypass Lower This part replaces 276000245. |
| 35 | 293710116 | T-Fitting |
| 40 | 293650171 | Tridon Gear Clamp |
| 50 | 219704394 | Was 276000001 Hose 12.5 mm |
| 55 | 219704394 | Was 276000001 Hose 12.5 mm |
| 60 | 293750008 | Tie Wrap 368 mm |
| 70 | 293650172 | Tridon Gear Clamp |
| 80 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 85 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 90 | 293650051 | Tridon Gear Clamp |
| 100 | 276000086 | Coolant Tank |
| 105 | 276000100 | Pressure Cap |
| 200 | 276000288 | COOLANT TANK BRACKET - Call your local BRP dealership |
| 210 | 204100073 | SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership |
| 240 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 245 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 250 | 293650051 | Tridon Gear Clamp |
| 260 | 293650019 | Tridon Gear Clamp |
| 270 | 219704357 | Was 275500549 Hose 1/4" |
| 275 | 219704357 | Was 275500549 Hose 1/4" |
| 280 | 293650025 | Oetiker Gear Clamp |
| 290 | 293750002 | Tie Wrap 142 mm |
| 300 | 219704410 | Polyurethane Hose 10000Mm Long |
| 305 | 219704410 | Polyurethane Hose 10000Mm Long |
| 310 | 293750001 | Tie Wrap 94 mm |
| 320 | 293750002 | Tie Wrap 142 mm |
| 350 | 423465057 | Formed Hose This part replaces 204300199. |
| 355 | 423465058 | Ride Plate Hose This part replaces 204300172. |
| 360 | 423465057 | Formed Hose This part replaces 204300199. |
| 365 | 204300174 | Starboard Formed Hose - Call your local BRP dealership |
| 370 | 293650045 | Tridon Gear Clamp |
| 380 | 293650045 | Tridon Gear Clamp |
| 400 | 276000299 | HEAT EXCHANGER - Call your local BRP dealership |
| 410 | 204300133 | Hose Fitting - Call your local BRP dealership |
| 420 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt |
| 450 | 205405060 | SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership |
| 460 | 234000600 | Flat Washer 10 mm, Stainless |
| 465 | 234002600 | Flat Washer 10 mm, Stainless |
| 470 | 232001600 | HEX. NUT M10 - Call your local BRP dealership |
| 500 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 510 | 234061600 | Stainless Flat Washer M6 |
| 520 | 271001813 | Anode Zinc |
| 700 | 219704394 | Was 276000001 Hose 12.5 mm |
| 705 | 219704394 | Was 276000001 Hose 12.5 mm |
| 720 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 725 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 740 | 293710131 | T-Fitting |
| 750 | 293710132 | T-Fitting |
| 760 | 276000242 | FORMED HOSE - Call your local BRP dealership |
| 765 | 276000242 | FORMED HOSE - Call your local BRP dealership |
| 770 | 276000242 | FORMED HOSE - Call your local BRP dealership |
