Home / BRP / STERN DRIVE / 1994 / 5.70 / 572ACPMDA 1994 / INTAKE MANIFOLD & FUEL PUMP

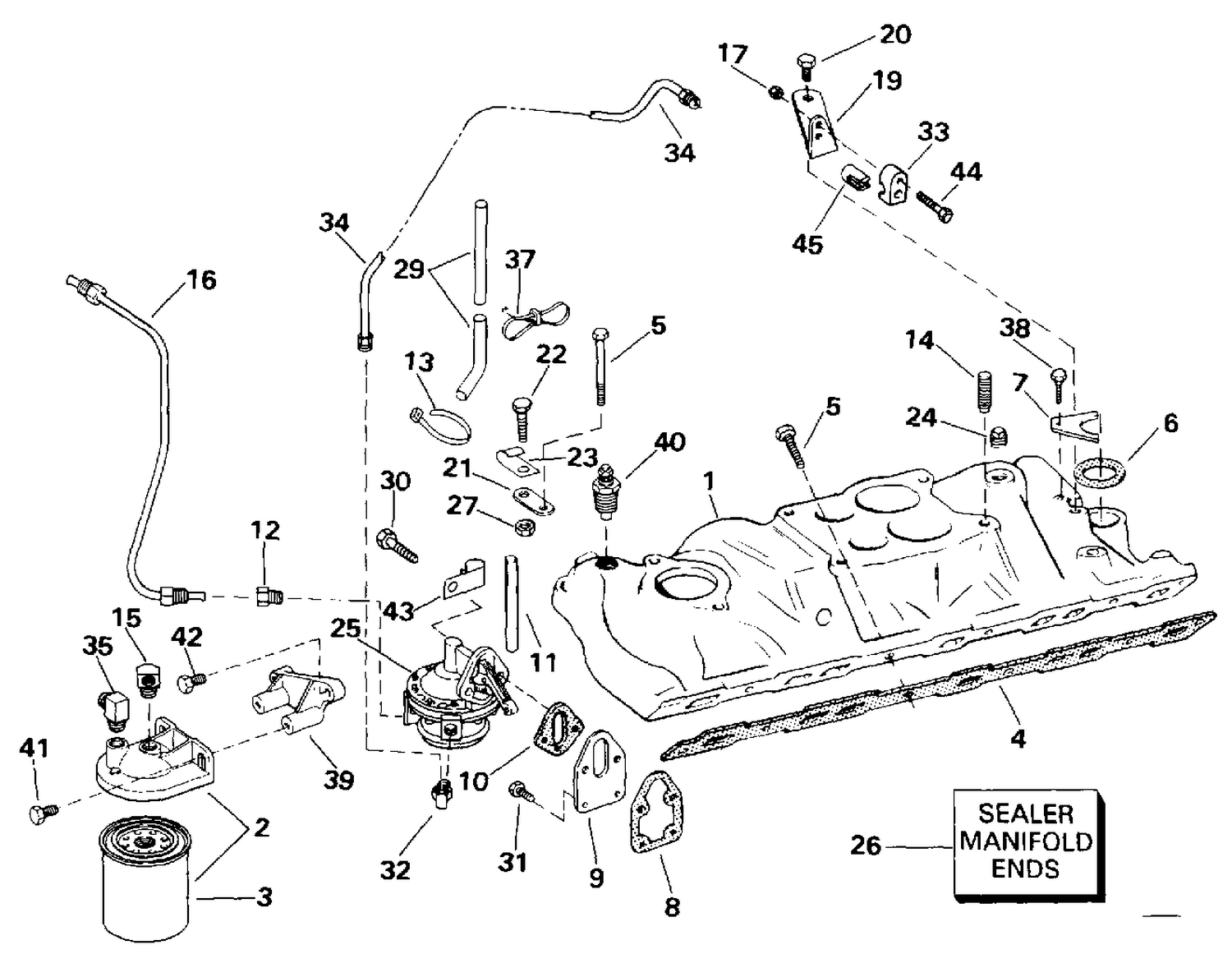

INTAKE MANIFOLD & FUEL PUMP

INTAKE MANIFOLD & FUEL PUMP

Parts (39)

RefPart NumberDescription
1 3854268 MANIFOLD, Intake
2 3850861 COVER & FUEL FILTER ASSY
3 5012363 Filter Ay This part replaces 0987754.
4 3854269 GASKET SET, Intake manifold
5 3855983 BOLT, Intake manifold, long This part replaces 3852580.
5 3856129 BOLT, Intake manifold, short This part replaces 3853196.
6 0312780 GASKET, Dist. to manifold This part replaces 3852109.
7 3852108 CLAMP, Distributor
8 3852113 GASKET, Plate to engine
9 0312801 PLATE, Fuel pump mounting This part replaces 3852114.
10 0311064 GASKET, Fuel pump This part replaces 3852095.
11 3852112 PUSH ROD, Fuel pump
12 3852017 ADAPTER, Fuel line
13 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158.
14 3853333 STUD, Carburetor mounting
15 3852702 FITTING, Filter outlet
16 3853997 FUEL LINE, Filter to pump
18 3850682 STUD, Anchor block
19 3856728 ANCHOR BRACKET This part replaces 3850222.
20 3853428 SCREW, Anchor bracket
21 3852621 BRACKET, Fuel line clamp
23 0511514 CLAMP, Cable This part replaces 3852231.
24 3850740 PLUG, 1/4 NPTF
25 3855276 FUEL PUMP ASSY. This part replaces 3853792.
26 3853169 SEALER, Manifold ends
27 0311375 NUT This part replaces 3852099.
29 0909938 HOSE, Fuel overflow This part replaces 3854242.
30 3853393 SCREW, Bracket to manifold
31 0306487 SCREW This part replaces 3852062.
32 3852453 FITTING, Cover, return line
33 3850266 ANCHOR BLOCK
34 3854104 FUEL LINE, Pump to carburetor
35 3852013 ELBOW, Filter inlet
38 3853557 SCREW, Brace to alterntr bracket
39 3853310 BRACKET, Fuel filter
40 3852029 SENDER, Water temperature
41 3853326 SCREW, Bracket to engine
42 3853326 SCREW, Bracket to engine
44 0303459 ECREW,Exhaust cover,1-1/2"long This part replaces 3852048.
