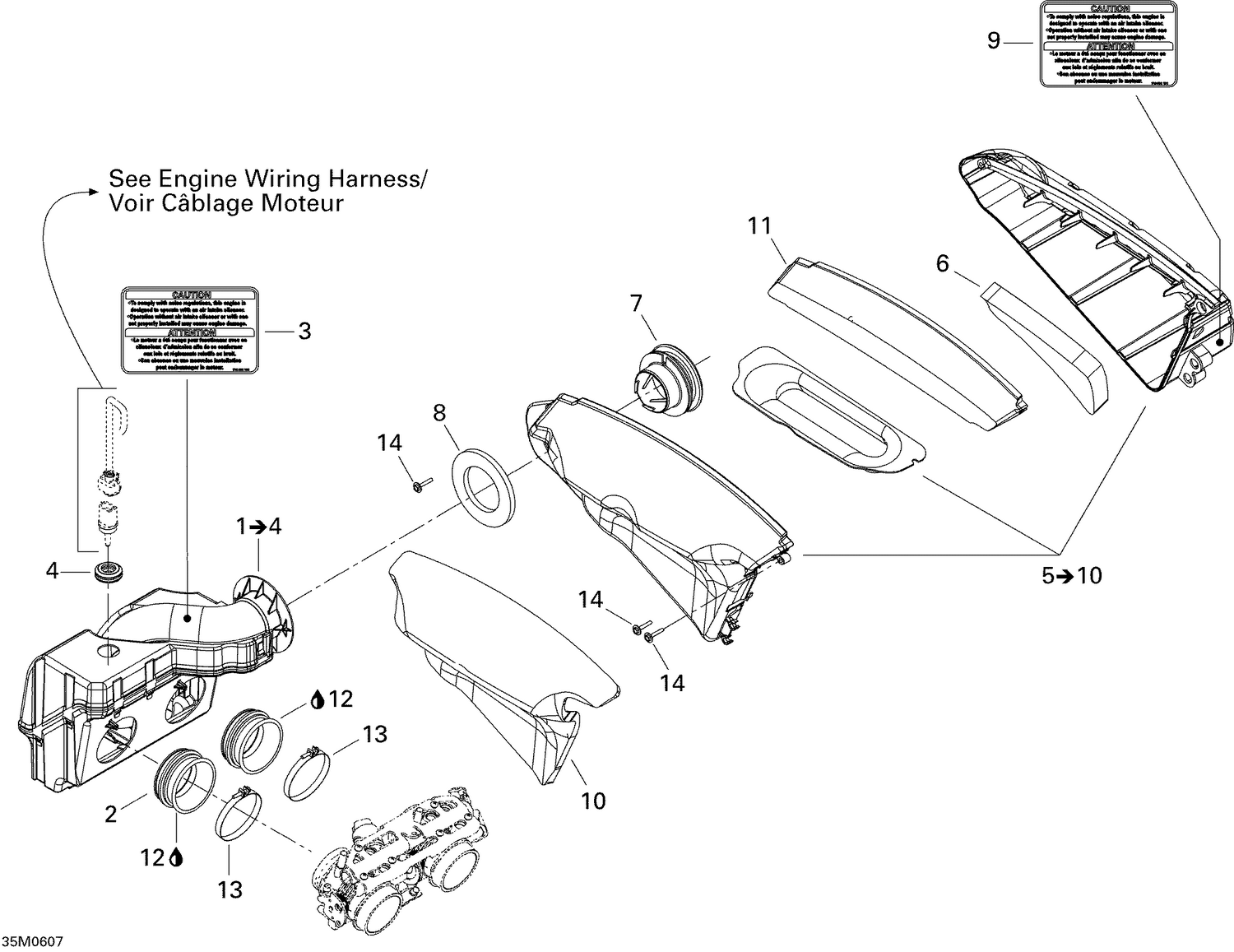

| Ref | Part Number | Description |
|---|
| 2 |
508000374 |
Air Intake Adaptor |
| 3 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 4 |
570065500 |
GROMMET - Call your local BRP dealership |
| 6 |
508000145 |
Inner Foam |
| 7 |
508000240 |
GUIDE - Call your local BRP dealership |
| 8 |
508000199 |
OUTER FOAM - Call your local BRP dealership |
| 9 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 10 |
508000310 |
OUTER FOAM - Call your local BRP dealership |
| 11 |
508000394 |
Air Filter |
| 12 |
293600072 |
SEMI-SYNTHETIC OIL, 3 X 4 LITERS - Call your local BRP dealership |
| 12 |
293600073 |
SEMI-SYNTHETIC OIL, 205 LITERS - Call your local BRP dealership |
| 12 |
293600100 |
OIL 2T 12X1BLEND - Call your local BRP dealership This part replaces 293600071. |
| 13 |
508000346 |
Gemi Clamp |
