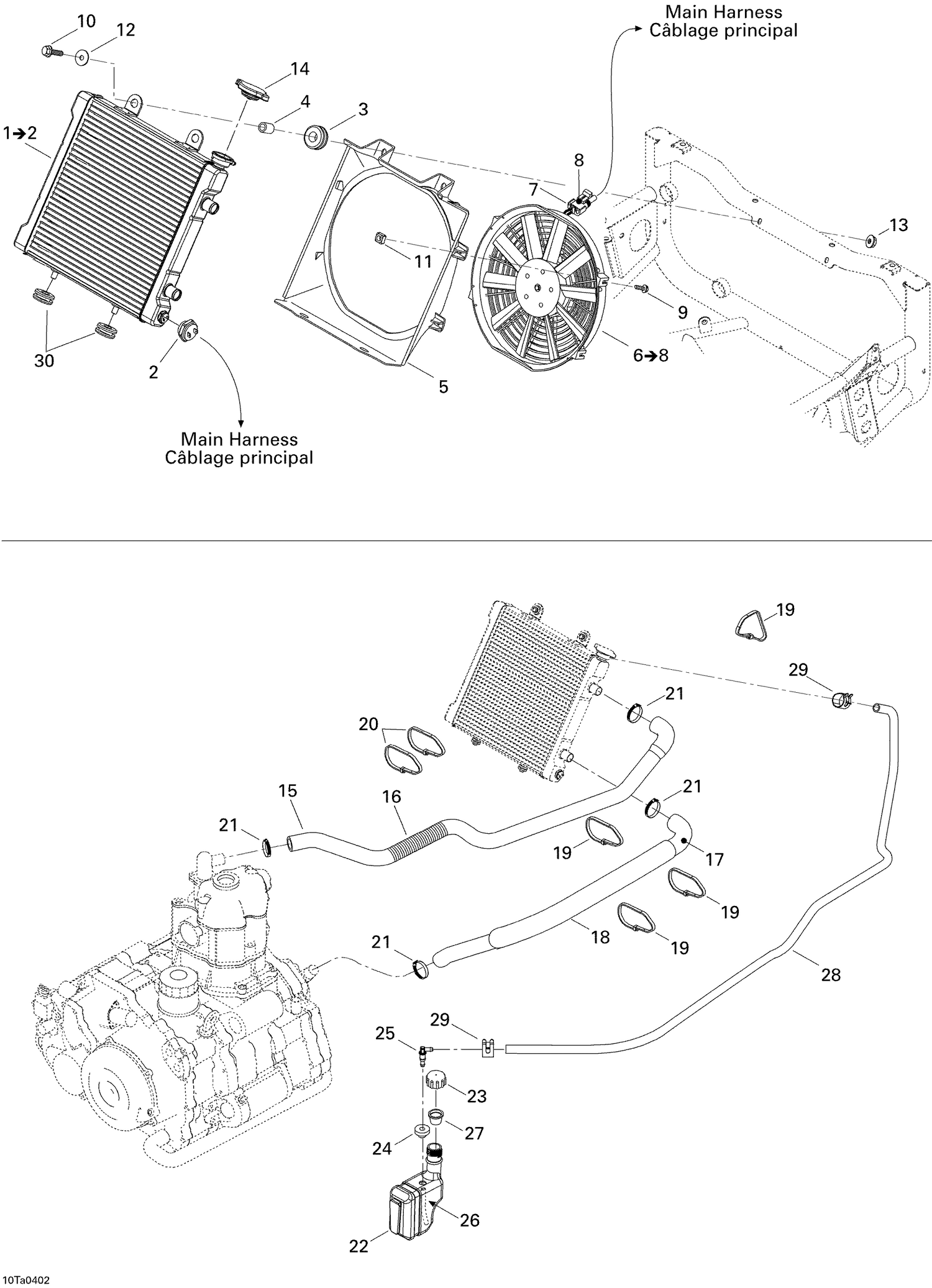

| Ref | Part Number | Description |
|---|
| 2 |
715900095 |
Temperature Sensor This part replaces 709200089. |
| 3 |
709000582 |
Grommet This part replaces 293720053. |
| 4 |
293900019 |
Bushing |
| 5 |
709200111 |
OUTER SHROUD - Call your local BRP dealership |
| 7 |
278000220 |
Male Connector, 2 Circuits |
| 8 |
409007300 |
Female Terminal |
| 9 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 10 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 11 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 12 |
250200082 |
Flat Washer This part replaces 391302000. |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
709200207 |
Radiator Pressure Cap This part replaces 709200033. |
| 16 |
709200031 |
PROTECTION SHIELD - Call your local BRP dealership |
| 18 |
709200032 |
PROTECTION SHIELD - Call your local BRP dealership |
| 20 |
293750008 |
Tie Wrap 368 mm |
| 21 |
293650109 |
Norma Spring Clamp |
| 22 |
709200099 |
COOLANT TANK - Call your local BRP dealership |
| 23 |
709200009 |
TANK CAP - Call your local BRP dealership |
| 24 |
709200285 |
Grommet This part replaces 570135100. |
| 25 |
414580600 |
Elbow Male Connector |
| 26 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 27 |
709200205 |
PROTECTION CAP - Call your local BRP dealership This part replaces 709200034. |
| 29 |
414554800 |
Spring Clamp |
