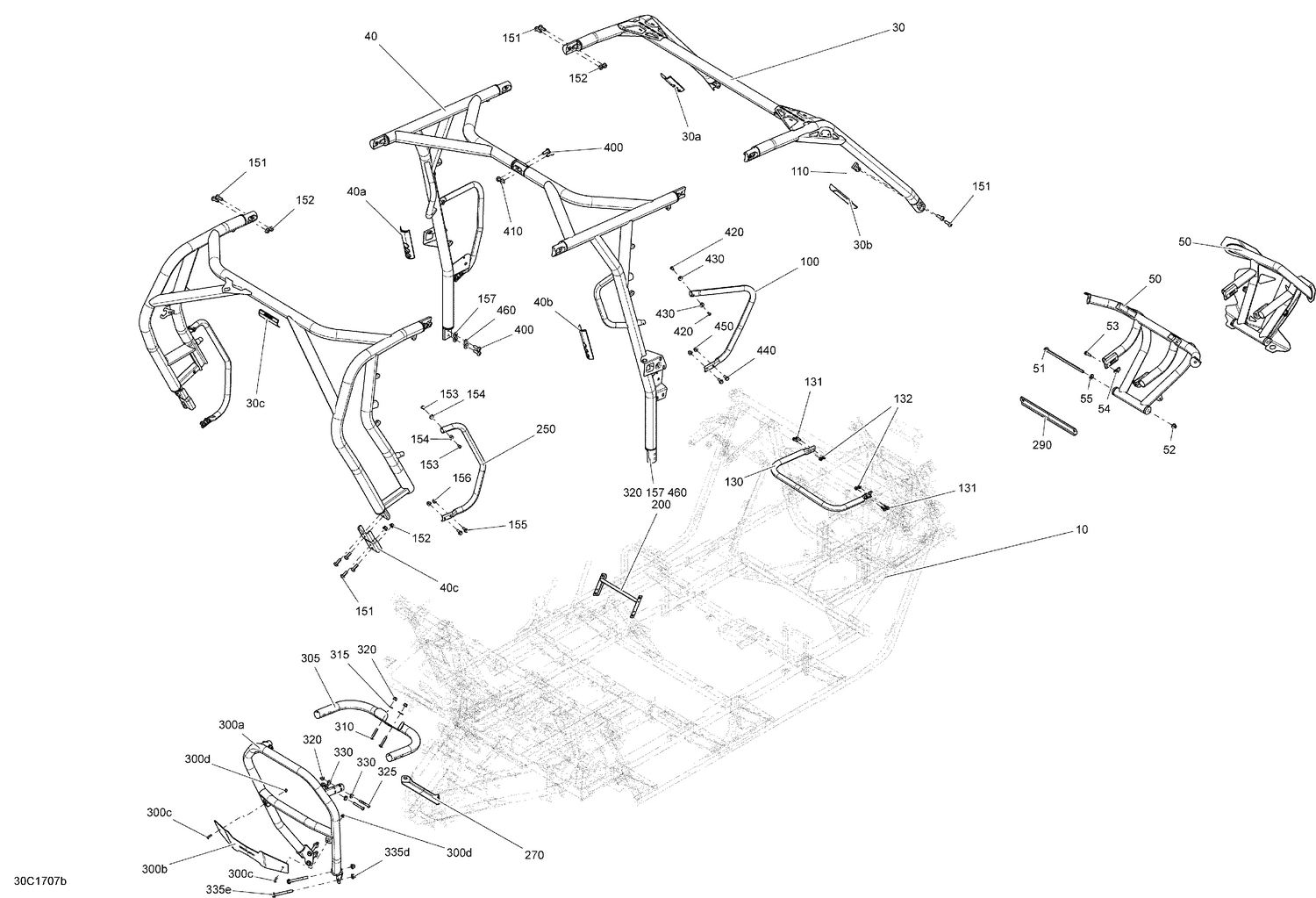

| Ref | Part Number | Description |
|---|
| 30a |
704903679 |
Warning Label |
| 30b |
704903680 |
Warning Label |
| 30c |
704903492 |
Warning Label |
| 40a |
704903679 |
Warning Label |
| 40b |
233181414 |
Hex. Flange Nut M8 |
| 40b |
704903680 |
Warning Label |
| 40c |
705203514 |
Rear Hand Mounting |
| 51 |
250000597 |
Hex. Flange Screw |
| 52 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 53 |
207382544 |
SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership |
| 54 |
250100118 |
Panel Nut M8 X 1.25 |
| 55 |
234201474 |
Conical Spring Washer 10 mm |
| 100 |
705203642 |
Black RH Front Side Protector Tube |
| 100 |
705203643 |
Black LH Front Side Protector Tube |
| 100 |
705204068 |
RED LH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership |
| 100 |
705204069 |
RED RH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership |
| 100 |
705204818 |
BLUE LH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership |
| 100 |
705204819 |
BLUE RH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership |
| 110 |
705203415 |
Binding Block |
| 130 |
705203332 |
Black Handle |
| 131 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 132 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 151 |
250000848 |
Screw Pan M10 X 30 |
| 152 |
233101464 |
Hex. Elastic Flange Nut , M10 X 1.5 |
| 153 |
250000789 |
Torx Truss M6X14 |
| 154 |
705202223 |
Offset Washer |
| 155 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 156 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 157 |
250200154 |
Washer |
| 250 |
705203649 |
Black LH Rear Side Protector Tube |
| 250 |
705203652 |
Black RH Rear Side Protector Tube |
| 250 |
705204064 |
RED LH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership |
| 250 |
705204065 |
RED RH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership |
| 250 |
705204820 |
SIDE PROTECT - Call your local BRP dealership |
| 250 |
705204821 |
BLUE RH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership |
| 290 |
705203454 |
FRONT SUSPENSION LINK - Call your local BRP dealership |
| 400 |
250000848 |
Screw Pan M10 X 30 |
| 410 |
233101464 |
Hex. Elastic Flange Nut , M10 X 1.5 |
| 420 |
250000789 |
Torx Truss M6X14 |
| 430 |
705202223 |
Offset Washer |
| 440 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 450 |
233281414 |
Hex. Flange Elastic Nut M8 |
