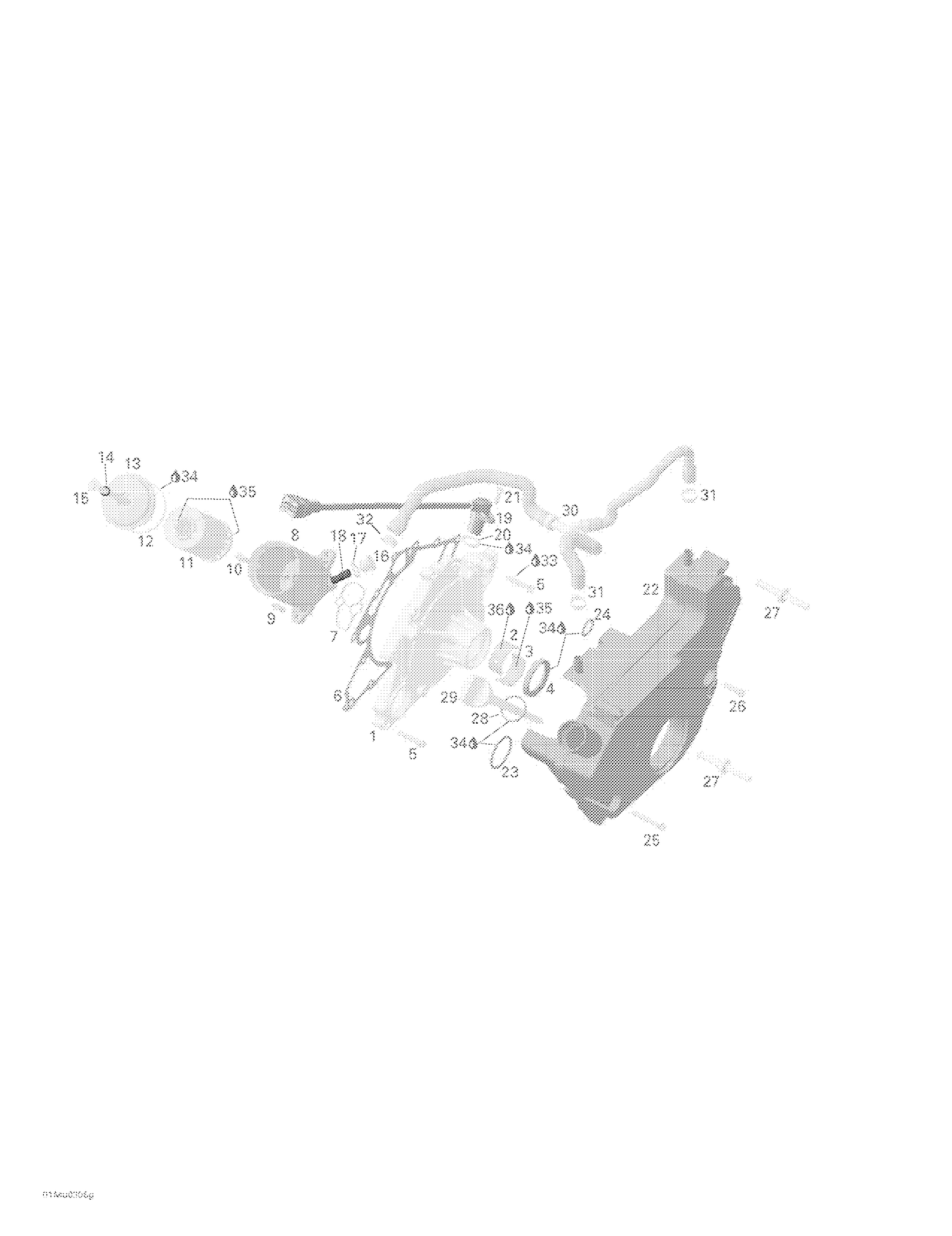

| Ref | Part Number | Description |
|---|
| 2 |
420933540 |
HALF BUSHING - Call your local BRP dealership |
| 3 |
420933545 |
PLAIN BEARING - Call your local BRP dealership |
| 4 |
420931150 |
Oil Seal |
| 5 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440272. |
| 6 |
420950610 |
GASKET - Call your local BRP dealership |
| 7 |
420950990 |
GASKET - Call your local BRP dealership |
| 8 |
420811901 |
Oil Filter Housing Ass’Y |
| 9 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 10 |
420440602 |
Hex. Flange Screw M6 X 65 |
| 11 |
420956741 |
Oil Filter This part replaces 420956740. |
| 12 |
420230923 |
O-Ring This part replaces 420230920. |
| 13 |
420610326 |
OIL FILTER COVER - Call your local BRP dealership |
| 14 |
420950860 |
O-Ring |
| 15 |
295501207 |
Oil Filter Screw Kit This part replaces 420641105. |
| 16 |
420240234 |
Plug Screw M16 X 1.5 This part replaces 420240230. |
| 17 |
420430622 |
O-Ring |
| 18 |
420960470 |
Stuffing Plug |
| 19 |
420265920 |
Crank Position Trigger |
| 20 |
Not |
Available As Spare Part - O-ring |
| 21 |
420440162 |
Torx Flange Screw M6 X 16 |
| 23 |
420631400 |
O-RING - Call your local BRP dealership |
| 24 |
420631410 |
O-RING - Call your local BRP dealership |
| 25 |
420440324 |
Torx Flange Screw M6 X 45 This part replaces 420440322. |
| 26 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 27 |
420660860 |
FIXATION BOLT - Call your local BRP dealership |
| 28 |
420430590 |
O-ring |
| 29 |
420956890 |
OIL DIPSTICK - Call your local BRP dealership |
| 30 |
420660720 |
Molded Hose Ass’y |
| 31 |
420853143 |
Clamp |
| 32 |
420853313 |
Clamp |
| 33 |
293800060 |
Loctite 243, 10 ml |
| 34 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 35 |
293600054 |
Synth Oil 4T 12x1 |
