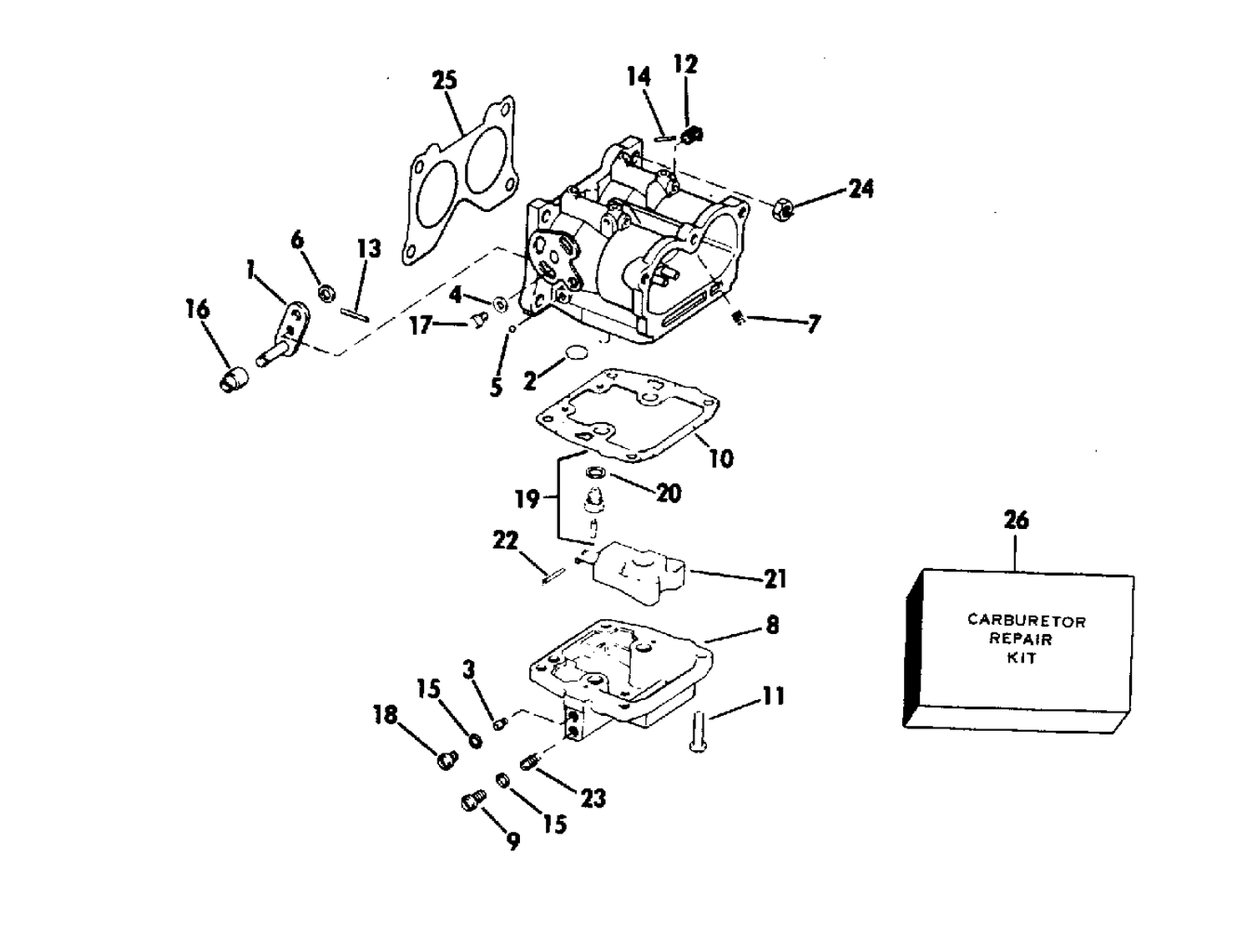

| Ref | Part Number | Description |
|---|
| 1 |
0387839 |
LEVER & PIN ASSY |
| 3 |
0324652 |
ORIFICE No.26 200TX only |
| 8 |
0391755 |
FLOAT CHAMBER ASSY |
| 8 |
0391761 |
FLOAT CHAMBER ASSY., Upper |
| 9 |
0330131 |
CLAMP, Fuel filter This part replaces 0323783. |
| 10 |
0338884 |
GASKET, Float bowl This part replaces 0323784. |
| 18 |
0317501 |
SCREW PLUG, Orifice |
| 21 |
0383437 |
FLOAT ASSEMBLY |
| 23 |
0317183 |
ORIFICE PLUG |
| 23 |
0321449 |
ORIFICE PLUG 175 ONLY, No. 60c |
| 24 |
0316291 |
NUT |
| 25 |
0327707 |
GASKET, Air silencer |
| 0392596 |
0392596 |
CARB ASSY., Upper, 90 |
| 0392597 |
0392597 |
CARB ASSY., Lower, 90 |
| 0392598 |
0392598 |
CARB ASSY., Upper, 140 |
| 0392599 |
0392599 |
CARB ASSY., Lower, 140 |
| 0392600 |
0392600 |
CARB ASSY., Upper, 115 |
| 0392601 |
0392601 |
CARB ASSY., Lower, 115 |
