Home / BRP / Can-Am ATV / 2018 / 001 - North America - Outlander 450/570 Series / Outlander 450 4X4 - North America, 2018 / North America - OUTLANDER - 4X4 - DPS - 450 EFI - 2WJA - Orange Crush, 2018 0002WJA00 / 07- Body - Skid Plate and Bumper

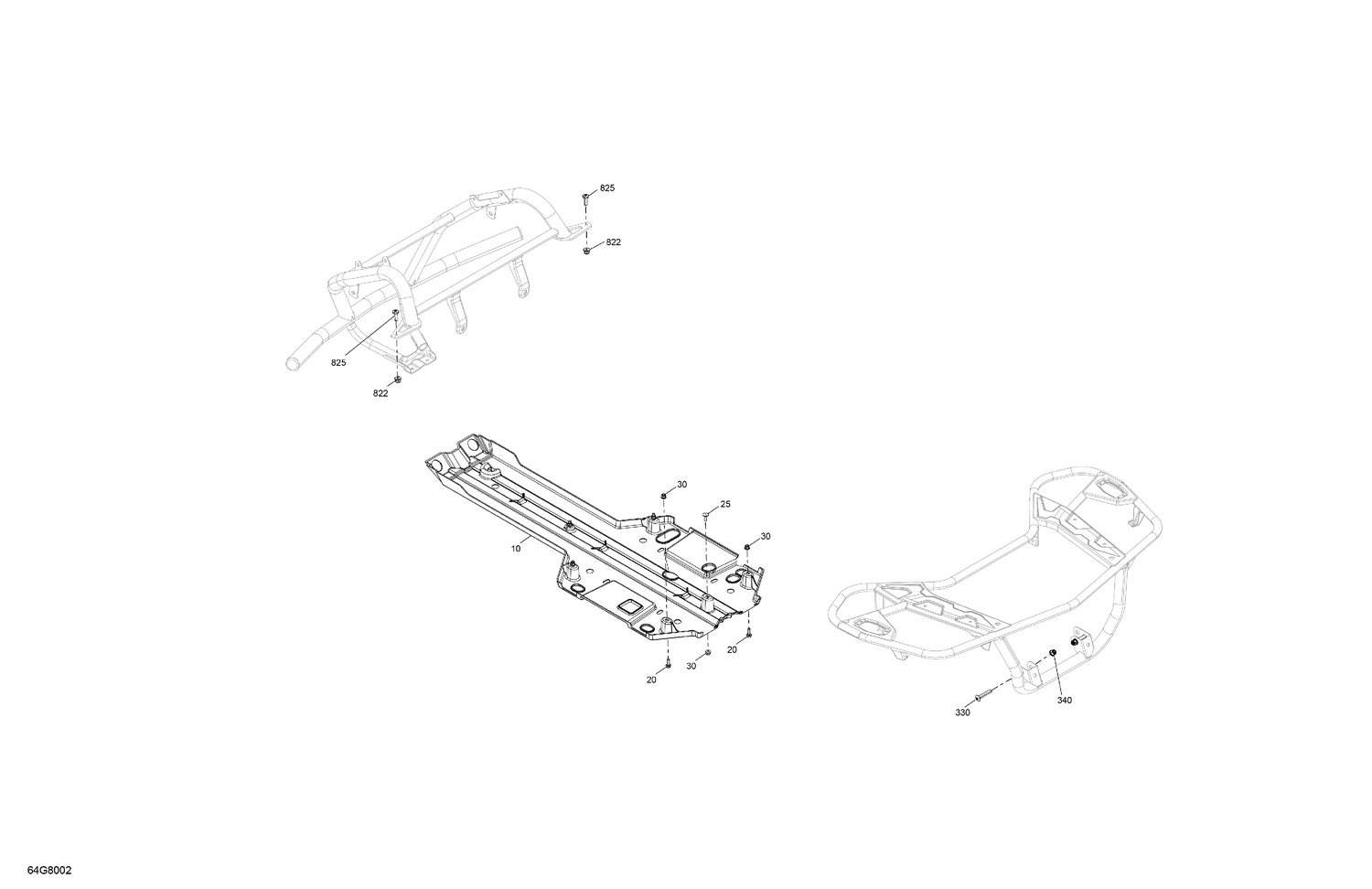

07- Body - Skid Plate and Bumper

07- Body - Skid Plate and Bumper

Parts (7)

RefPart NumberDescription
10 715002374 Protective Plate Kit
20 207662054 Hex. Flange Screw M6 X 20
25 207762044 Carriage Bolt M6 X 20
30 233261434 Flange Elastic Nut M6
330 250000761 Torx Truss Screw M8 X 50
340 233281464 Elastic Flange Nut M8
822 233281464 Elastic Flange Nut M8
