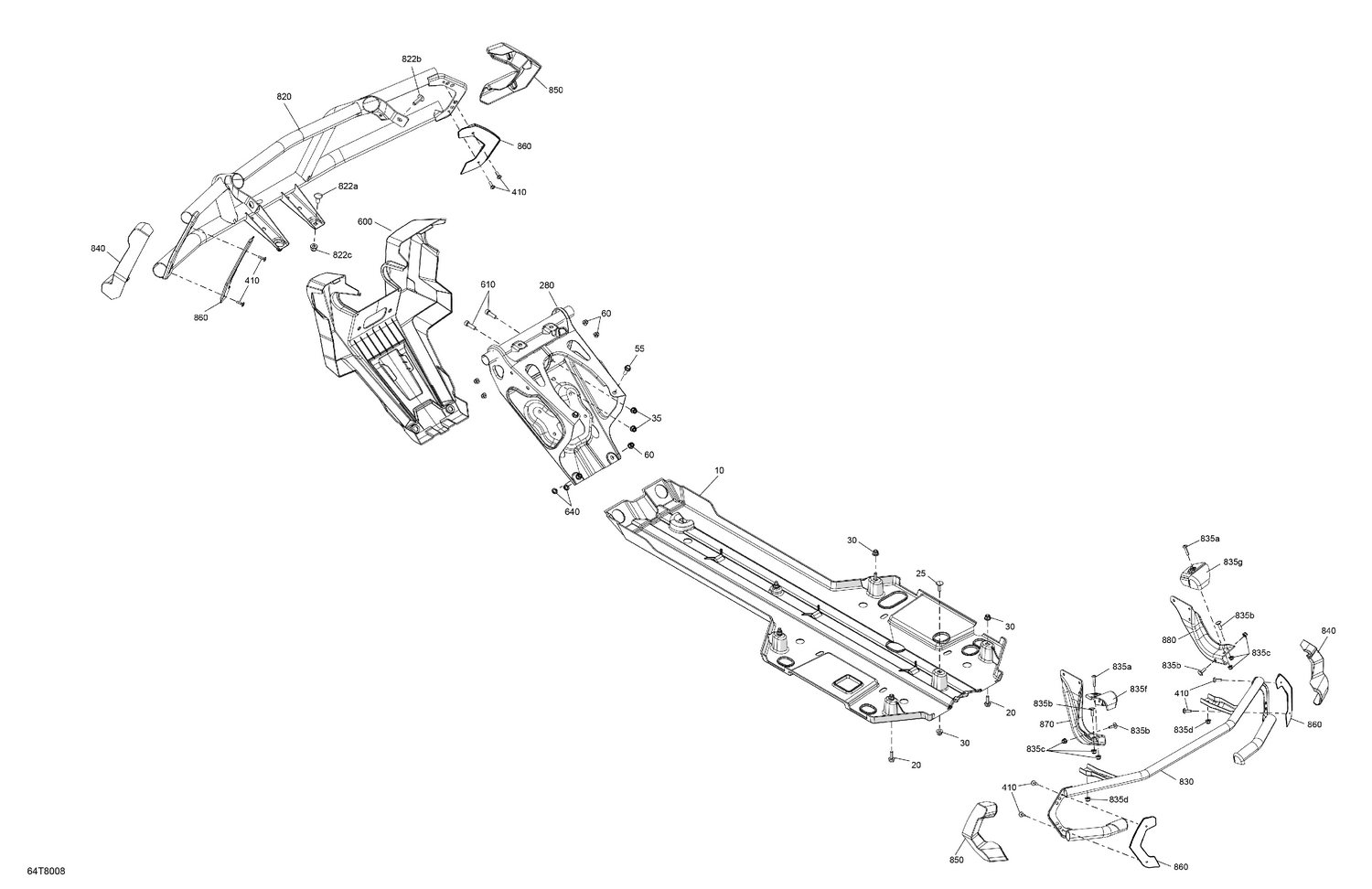

07- Body - Skid Plate and Bumper
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715002374 | Protective Plate Kit |
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233201434 | Hex. Flange Elastic Nut M10 |
| 55 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 280 | 705016893 | Front Bumper Support This part replaces 705009253. |
| 410 | 250000720 | Torx Screw K50 X 16 |
| 600 | 705006299 | Front Guard Plate |
| 610 | 205003044 | Socket Screw M10 x 30 |
| 640 | 705004497 | Ring |
| 820 | 715004837 | Deep Black, Bumber Kit |
| 822a | 207782044 | Carriage Bolt, M8 X 20 |
| 822b | 250000886 | Torx Screw M8 X 30 |
| 822c | 233281414 | Hex. Flange Elastic Nut M8 |
| 830 | 715004920 | Rear Bumper |
| 835a | 250000842 | Stainless, Torx Screw M6 X 30 |
| 835b | 207762044 | Carriage Bolt M6 X 20 |
| 835c | 233261434 | Flange Elastic Nut M6 |
| 835d | 233281434 | Hex. Flange Elastic Nut M8 |
| 835f | 705005094 | LH Bracket |
| 835g | 705005095 | RH Bracket |
| 840 | 705004409 | Cap (Front LH) (Rear RH) |
| 850 | 705004410 | Cap (Front RH) (Rear LH) |
| 860 | 705004987 | Bracket Cover |
| 870 | 705008164 | LH Rear Bracket |
