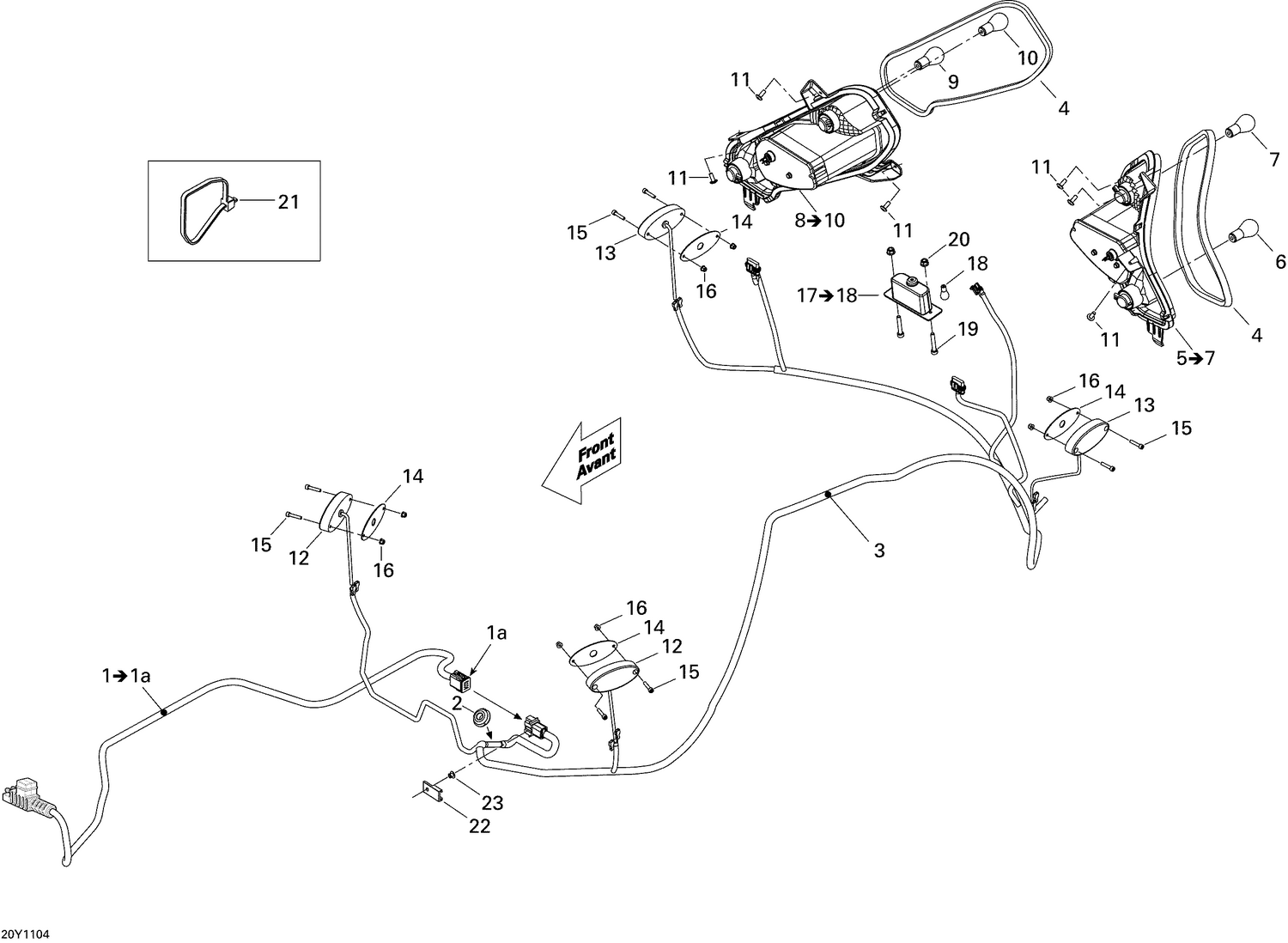

| Ref | Part Number | Description |
|---|
| 1a |
710002510 |
HARNESS LOCK - Call your local BRP dealership |
| 2 |
705003264 |
Grommet |
| 3 |
710003904 |
WIRING HARNESS MAIN - Call your local BRP dealership This part replaces 710002441. |
| 4 |
293250230 |
STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 6 |
520000758 |
Bulb This part replaces 415129425. |
| 7 |
219800122 |
Flasher Bulb |
| 9 |
520000758 |
Bulb This part replaces 415129425. |
| 10 |
219800122 |
Flasher Bulb |
| 11 |
250000767 |
Torx Truss Screw M6 X 12 This part replaces 250000325. |
| 12 |
710001924 |
FRONT SIDE MARKER - Call your local BRP dealership |
| 13 |
710001997 |
REAR SIDE MARKER - Call your local BRP dealership |
| 14 |
710002073 |
RUBBER PAD - Call your local BRP dealership |
| 15 |
205052588 |
Socket Head Screw M5 X 25 |
| 16 |
233251434 |
Flange Elastic Nut M5 |
| 18 |
219800128 |
Bulb |
| 19 |
205042560 |
Socket Head Screw M4 X 25 |
| 20 |
232541484 |
Elastic Stop Nut M4 |
| 21 |
293750008 |
Tie Wrap 368 mm |
| 22 |
270000141 |
Clip |
