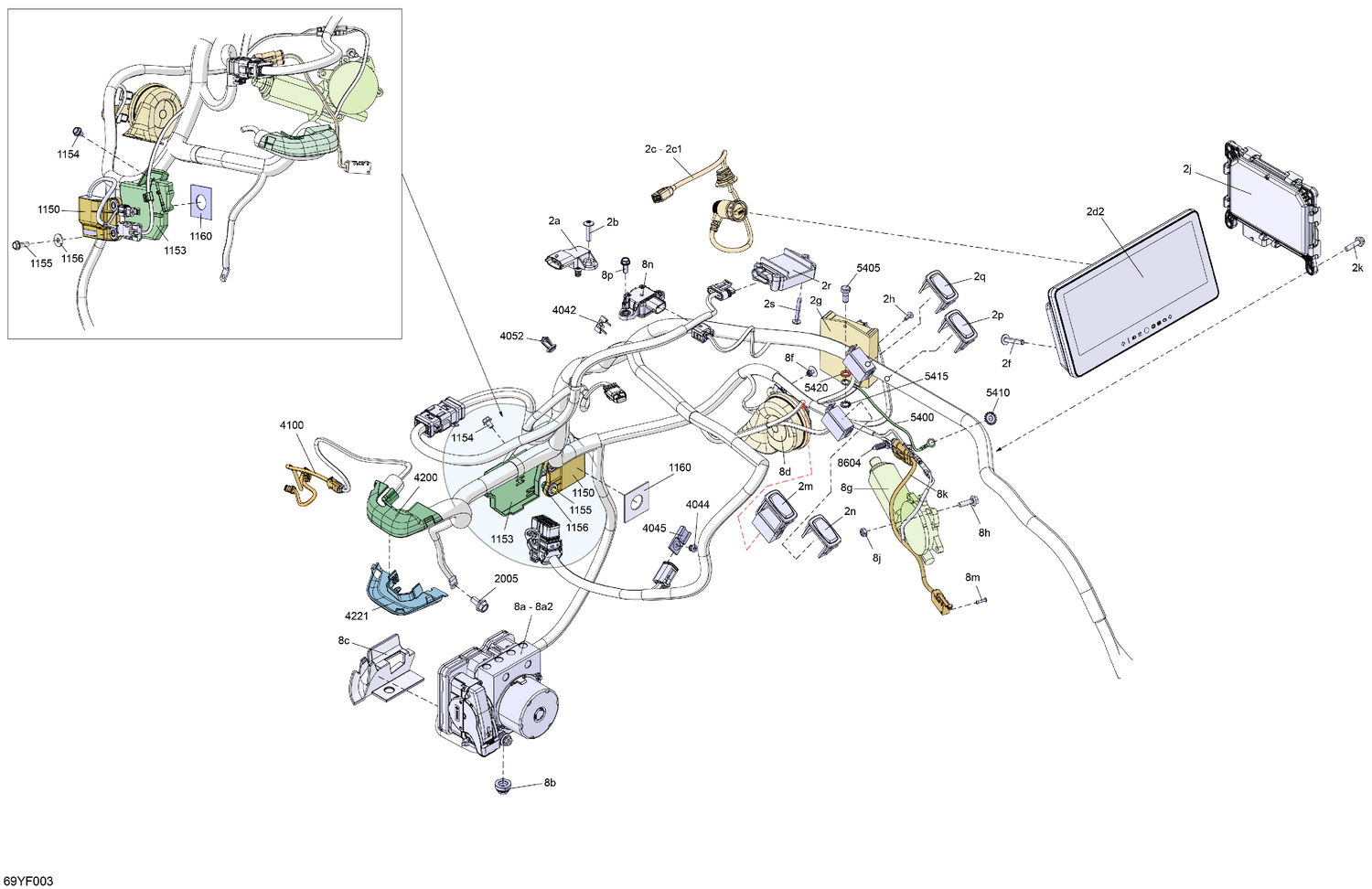

08- Electric - Front Electric
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 2a | 707000995 | Pressure And Temperature Sensor |
| 2b | 250000807 | Torx Truss Screw M6 X 25 |
| 2c1 | 515179431 | USB wiring Harness Ass'y |
| 2d2 | 710010374 | Multifunction Gauge 10 |
| 2f | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 2g | 710008602 | PBM Module Ass'y |
| 2h | 250001131 | Torx Truss PT K40 x 12 |
| 2j | 710007494 | BCM Module OPT #2 |
| 2k | 250000793 | Hex. Flange Screw M6 X 25 |
| 2m | 710008999 | Heated Grip Switch |
| 2n | 517306808 | Switch Hole Cap |
| 2p | 517306808 | Switch Hole Cap |
| 2q | 517306808 | Switch Hole Cap |
| 2r | 278004172 | External Module GPS |
| 2s | 250001111 | Torx Screw K50 X 35 |
| 8a2 | 710003279 | Shock Damper |
| 8b | 710009090 | Vibration Damper |
| 8c | 710003996 | VCM Harness Protector |
| 8d | 710004940 | Horn |
| 8f | 293150103 | Pop Rivet 3/16" |
| 8g | 710007256 | Actuator Motor |
| 8h | 207662054 | Hex. Flange Screw M6 X 20 |
| 8j | 232561434 | Elastic Stop Nut M6 |
| 8k | 710001379 | Brake Pressure Switch Ass'y |
| 8m | 293150150 | Pop Rivet |
| 8n | 710005658 | Yaw Rate Sensor |
| 8p | 210261650 | Hex. Flange Screw M6 X 16 |
| 1150 | 710004916 | Dess Module |
| 1153 | 707003207 | Connector Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1155 | 210262050 | Hexagonal Head Screw |
| 1156 | 234062670 | Stainless Steel Flat Washer |
| 1160 | 293830091 | Rubber Bumper |
| 2005 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 4042 | 710001222 | Lock |
| 4044 | 293150293 | Pop Rivet 3/16 X ,425 |
| 4045 | 270000141 | Clip |
| 4052 | 293150230 | Tuflok Plastic Rivet |
| 4100 | 710009923 | Fog Light Wiring Harness |
| 4200 | 710009180 | Upper Harness Holder |
| 4221 | 710010741 | Lower Harness Holder |
| 5400 | 710006436 | Fuel Tank Cable |
| 5405 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5415 | 234481608 | Serrated Lock Washer 8 mm |
| 5420 | 250200111 | Washer |
