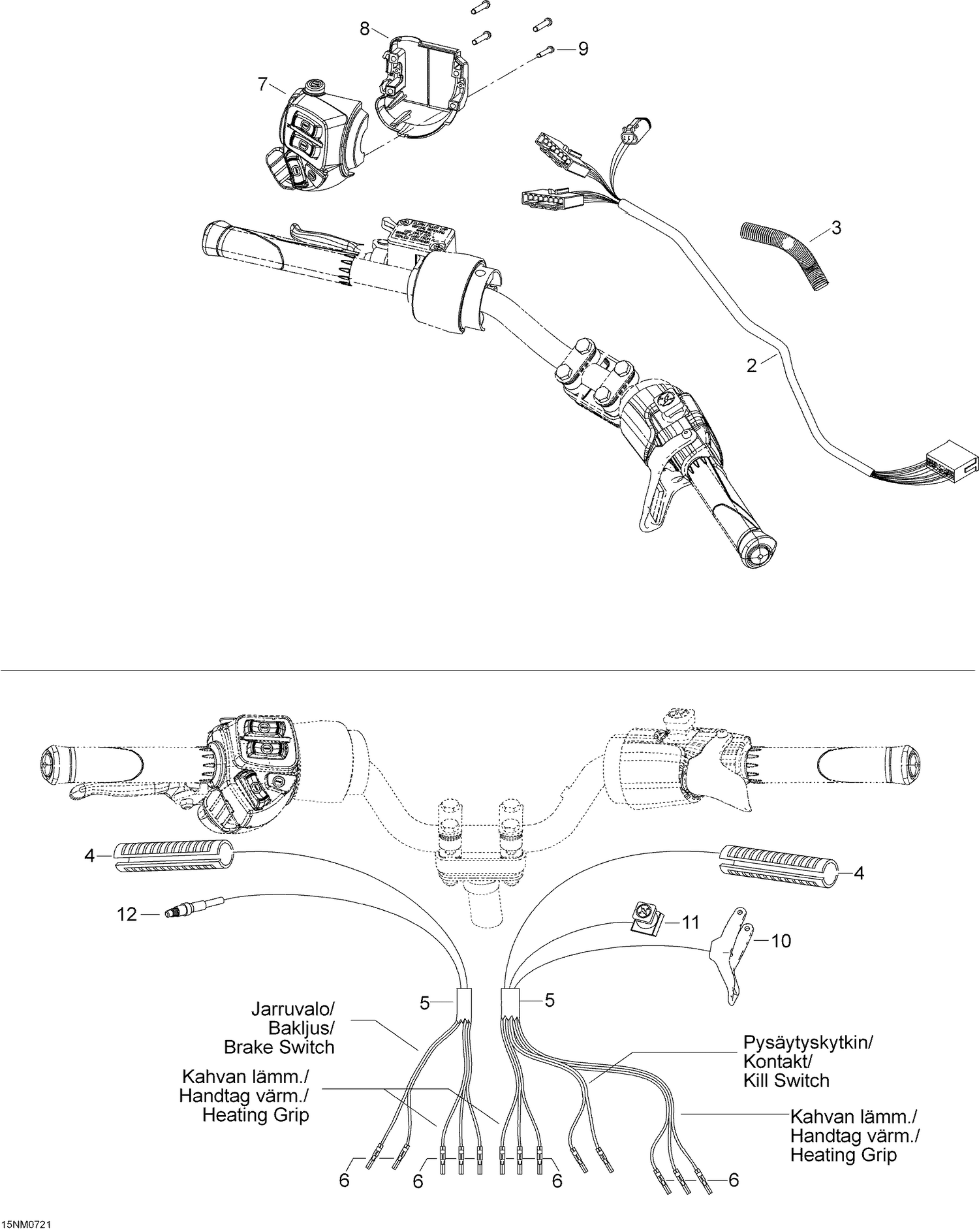

10- Steering Harness
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 605353266 | STEERING HARNESS - Call your local BRP dealership |
| 3 | 605353992 | Tubing |
| 4 | 515176139 | HEATER ELEMENT - Call your local BRP dealership This part replaces 515175657. |
| 5 | 39023 | Plastic Tubing d=6, musta - Call your local BRP dealership |
| 6 | 605642628 | CONNECTOR - Call your local BRP dealership |
| 7 | 515176062 | Switch housing |
| 8 | 515175926 | Switch housing plate |
| 9 | 40903 | Plastofast-screw 3.5 x 25 |
| 10 | 512059481 | Throttle Handle This part replaces 512059107. |
| 11 | 515175410 | Kill switch |
