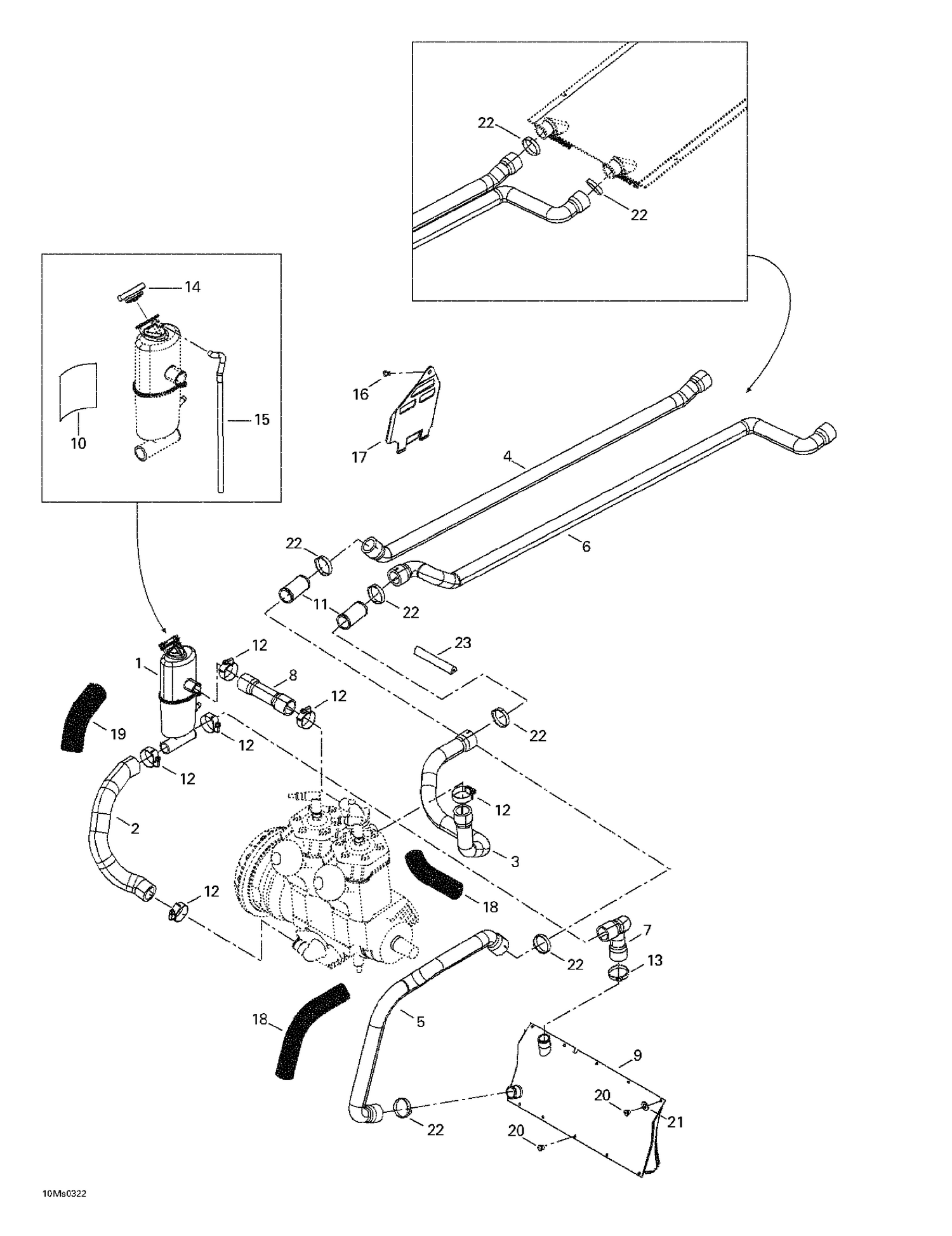

| Ref | Part Number | Description |
|---|
| 1 |
509000408 |
Coolant Tank This part replaces 509000157. |
| 2 |
509000135 |
ENGINE INLET HOSE - Call your local BRP dealership |
| 3 |
509000215 |
ENGINE FRONT OUTLET HOSE - Call your local BRP dealership |
| 4 |
509000240 |
Rear radiator intake hose |
| 5 |
509000216 |
FRONT RADIATOR INTAKE HOSE - Call your local BRP dealership |
| 6 |
509000241 |
Rear engine outlet hose |
| 7 |
509000184 |
RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 8 |
509000161 |
Hose |
| 9 |
518323387 |
Front Radiator |
| 10 |
509000190 |
REFECTIVE SHEET - Call your local BRP dealership |
| 11 |
509000224 |
Fitting |
| 12 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 13 |
509000181 |
Oetiker Gear Clamp |
| 14 |
509000187 |
Pressure Cap |
| 15 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 16 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 17 |
509000257 |
DEFLECTOR - Call your local BRP dealership |
| 18 |
219704402 |
Tubing 25 MM 1000MM Long |
| 19 |
219704413 |
Was 415084700 Protective Shield |
| 20 |
390402200 |
Pop Rivet 3/16" |
| 21 |
517225900 |
Flat Washer |
| 22 |
509000045 |
Oetiker Gear Clamp 36.1MM |
