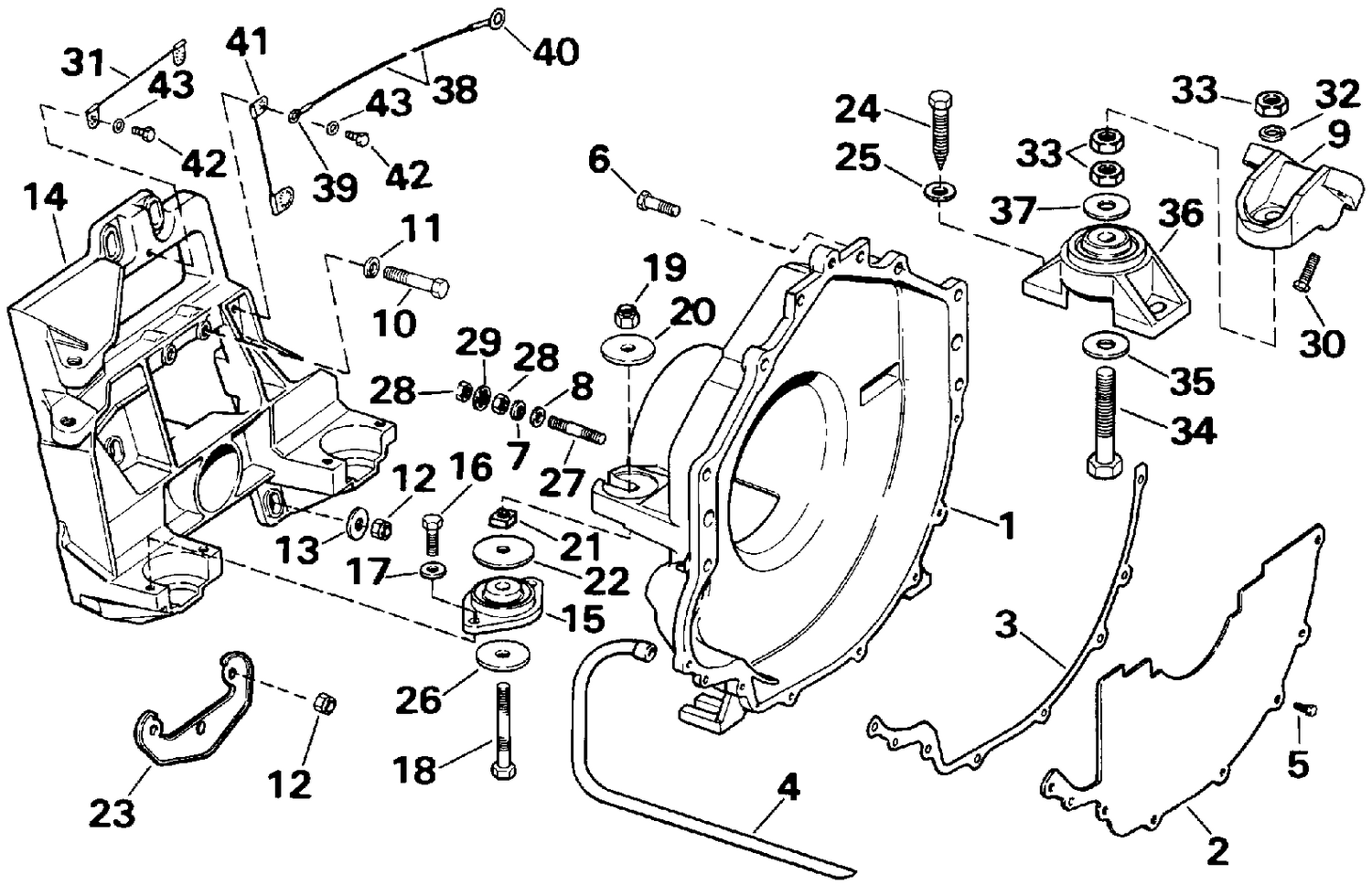

TRANSOM PLATE, FLYWHEEL HOUSING & MOUNTS

TRANSOM PLATE, FLYWHEEL HOUSING & MOUNTS

Parts (38)

RefPart NumberDescription
1 3857846 Housing This part replaces 0915020.
2 3852833 COVER, Flywheel This part replaces 0913788.
3 3852834 GASKET, Flywheel This part replaces 0913789.
4 3852832 HOSE, Flywheel housing This part replaces 0913787.
5 3852421 SCREW, Baffle This part replaces 0907768.
6 3853266 BOLT, Distributor This part replaces 0914544.
6 3853326 SCREW, Bracket to engine This part replaces 0914764.
7 0120177 L'WASHER, Alternator to brkt
9 3857844 Brkt This part replaces 0913690.
10 0912457 SCREW, Transom plate
11 0307708 RONDELLE GROWER
12 3853329 LOCKNUT, Transom plate This part replaces 0914772.
13 3852573 WASHER, Pivot pin This part replaces 0911915.
14 3854605 TRANSOM PLATE This part replaces 0913826.
15 3853806 REAR MOUNT This part replaces 0983932.
16 0309484 SCREW
18 0318573 SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm)
19 0363254 NUT, Stern bracket screw This part replaces 0313623.
20 3852540 WASHER This part replaces 0911778.
21 3852539 NUT This part replaces 0911776.
22 3852622 WASHER, Lower This part replaces 0912889.
23 3852605 BEARING PLATE This part replaces 0912715.
24 3852475 LAG SCREW This part replaces 0909716.
25 3852078 WASHER, Lag screw This part replaces 0308091.
26 3852542 WASHER This part replaces 0911780.
27 3852483 STUD, Ground This part replaces 0910022.
29 0306993 L'WASHER,Potentiometer,12 V
30 3853326 SCREW, Bracket to engine This part replaces 0914764.
31 3853929 GROUND STRAP, Bracket to arm This part replaces 0986156.
32 3852090 LOCK WASHER This part replaces 0310856.
33 3852021 LOCKNUT This part replaces 0130084.
34 3852566 BOLT, Engine mount This part replaces 0911857.
35 3852428 WASHER, Lower This part replaces 0907857.
36 3853805 FRONT MOUNT This part replaces 0983903.
37 3852433 WASHER This part replaces 0908114.
38 3853927 GROUND STRAP, Bracket to engine This part replaces 0986154.
40 3852527 RING TERMINAL This part replaces 0911523.
41 3853928 GROUND STRAP, Bracket to stud This part replaces 0986155.
