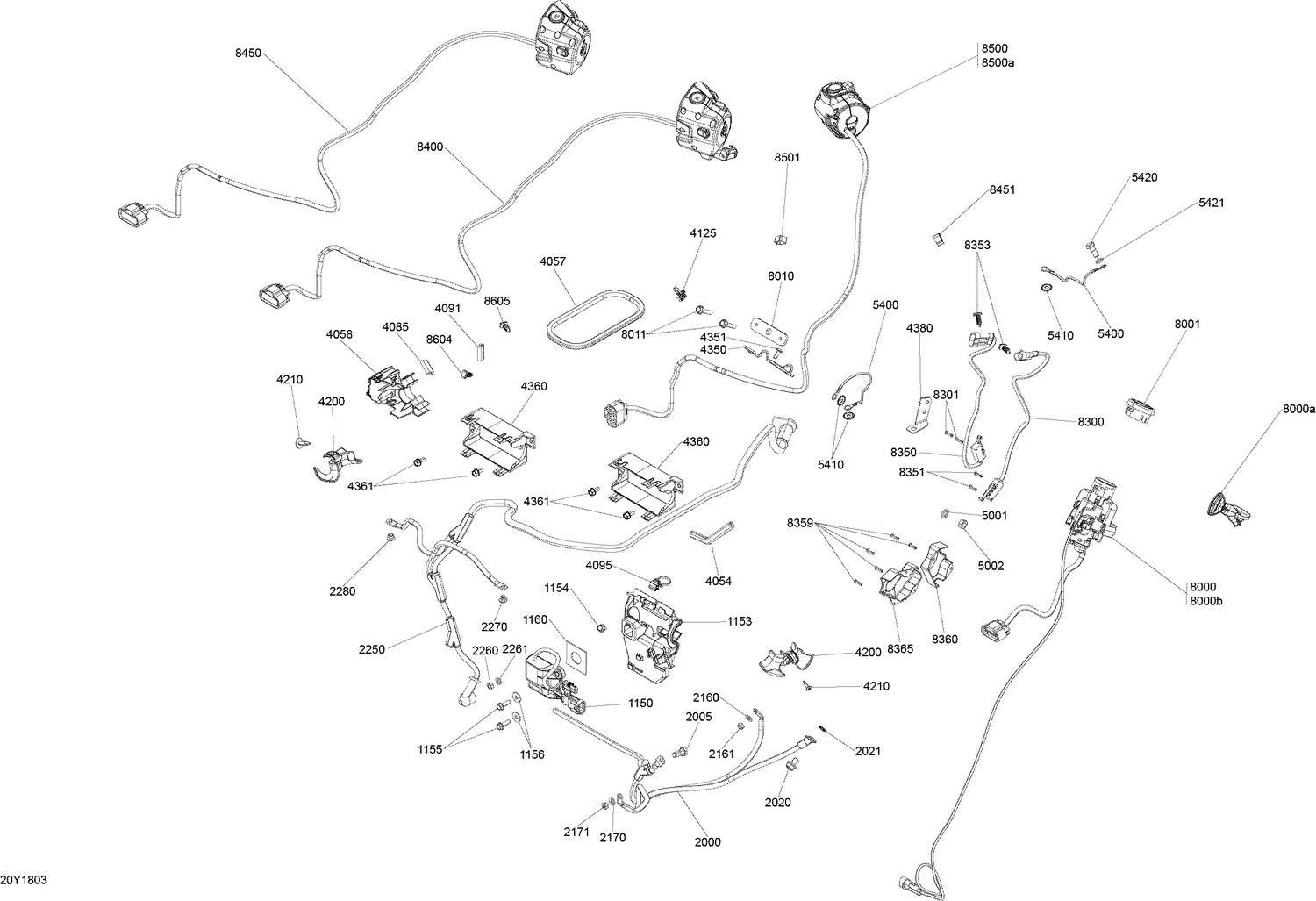

10- Electrical Accessories
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1150 | 710004916 | Dess Module |
| 1153 | 710004308 | Wire Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1155 | 210262050 | Hexagonal Head Screw |
| 1156 | 234062410 | Flat Washer 6 mm |
| 1160 | 293830091 | Rubber Bumper |
| 2000 | 710005322 | Starter Cable |
| 2005 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 | 234481608 | Serrated Lock Washer 8 mm |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561414 | Elastic Stop Nut M6 |
| 2170 | 234161601 | Lock Washer Helical M6 |
| 2171 | 232061600 | Hex. Nut M6 |
| 2250 | 710005026 | Pos Cable |
| 2260 | 232061600 | Hex. Nut M6 |
| 2261 | 234161601 | Lock Washer Helical M6 |
| 2270 | 293150173 | Rivet 6,4 mm |
| 2280 | 293150173 | Rivet 6,4 mm |
| 4054 | 219704354 | Trim 1000Mm Long |
| 4057 | 219704354 | Trim 1000Mm Long |
| 4058 | 710004086 | Connector Support |
| 4085 | 219704354 | Trim 1000Mm Long |
| 4091 | 219704354 | Trim 1000Mm Long |
| 4095 | 293750063 | Clip Tie-Rap |
| 4125 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 4200 | 710004931 | Harness Holder |
| 4210 | 414745900 | Tuflock Phillips Plastic Screw |
| 4350 | 710003017 | Grommet Spindle |
| 4351 | 250000742 | Torx Screw M5 X 14 |
| 4360 | 710004472 | Fuse Holder Support |
| 4361 | 210261250 | Hex. Flange Screw M6 X 12 |
| 4380 | 710003305 | Connectors Bracket |
| 5001 | 234181601 | Lock Washer 8 mm, Stainless |
| 5002 | 232081414 | Hex. Nut M8 |
| 5400 | 710004849 | Tank Cable |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5420 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5421 | 250200111 | Washer |
| 8000a | 710004408 | Ignition Key Kit |
| 8000b | 219800373 | DESS Antenna |
| 8001 | 710003594 | Switch Cover |
| 8010 | 710001365 | Switch Support |
| 8011 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 8300 | 710003412 | Brake Light Switch Ass'y |
| 8301 | 293150150 | Pop Rivet |
| 8350 | 710001379 | Brake Pressure Switch Ass'y |
| 8351 | 293150150 | Pop Rivet |
| 8353 | 710002033 | Connector Holder |
| 8359 | 293150150 | Pop Rivet |
| 8360 | 705601402 | LPS Deflector |
| 8365 | 705601344 | Deflector |
| 8451 | 414227300 | Clip |
| 8500a | 710005158 | Switch Housing |
| 8501 | 414227300 | Clip |
| 8604 | 710002033 | Connector Holder |
| 8605 | 710002033 | Connector Holder |
| 232170411 | Contre-Écrou | Hex. M14 232170411 |
| 232170411 | Hex. | Jam Nut M14 232170411 |
