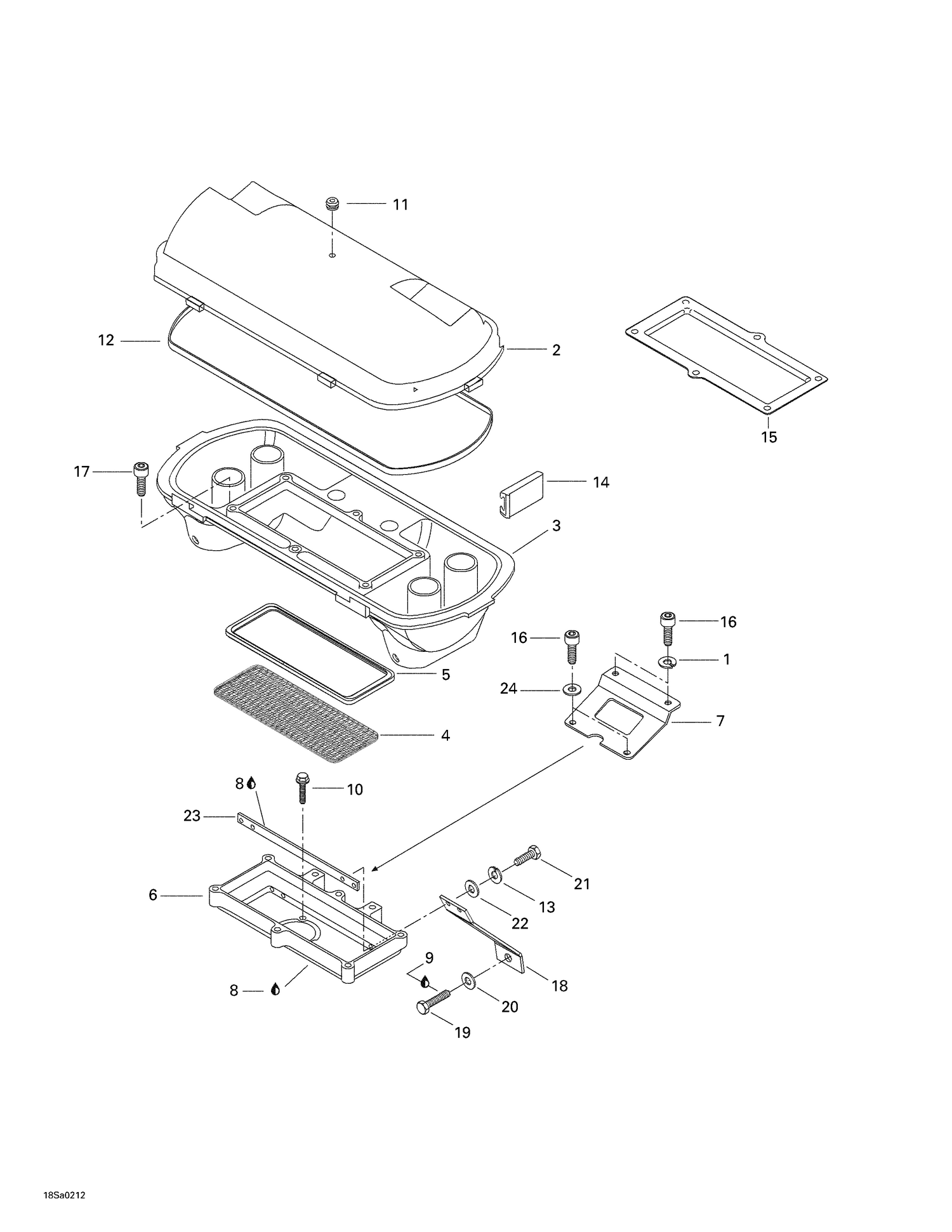

| Ref | Part Number | Description |
|---|
| 1 |
234061600 |
Stainless Flat Washer M6 |
| 2 |
273000115 |
AIR SILENCER COVER - Call your local BRP dealership |
| 3 |
204250054 |
Air Intake Silencer Base |
| 4 |
273000118 |
Flame Arrester |
| 5 |
273000020 |
ISOLATOR - Call your local BRP dealership |
| 6 |
273000131 |
Housing Arrester |
| 7 |
270000261 |
SUPPORT - Call your local BRP dealership |
| 9 |
293800060 |
Loctite 243, 10 ml |
| 10 |
207562560 |
Flanged Hex. Screw M6 X 25, Scotch |
| 11 |
293830005 |
Rubber Bumper |
| 12 |
293250023 |
GASKET - Call your local BRP dealership |
| 13 |
234151601 |
Helical Lock Washer M5 |
| 14 |
273000006 |
Retainer Clip |
| 15 |
273000059 |
HOLDER PLATE - Call your local BRP dealership |
| 16 |
205561260 |
Socket Head Screw M6 X 12, Scotch Grip |
| 17 |
205562560 |
Socket Head Screw M6 X 25, Scotch Grip |
| 18 |
270000508 |
FLAME ARRESTER SUPPORT PTO - Call your local BRP dealership |
| 19 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 20 |
293050001 |
Flat Washer M8.5 x 18 |
| 21 |
207351660 |
Hex. Screw M5 X 16, Scotch Grip |
| 22 |
234051600 |
Flat Washer M5, Stainless |
| 23 |
270000393 |
THREADED PLATE - Call your local BRP dealership |
| 270000507 |
Flame |
Arrester Support MAG 270000507 |
