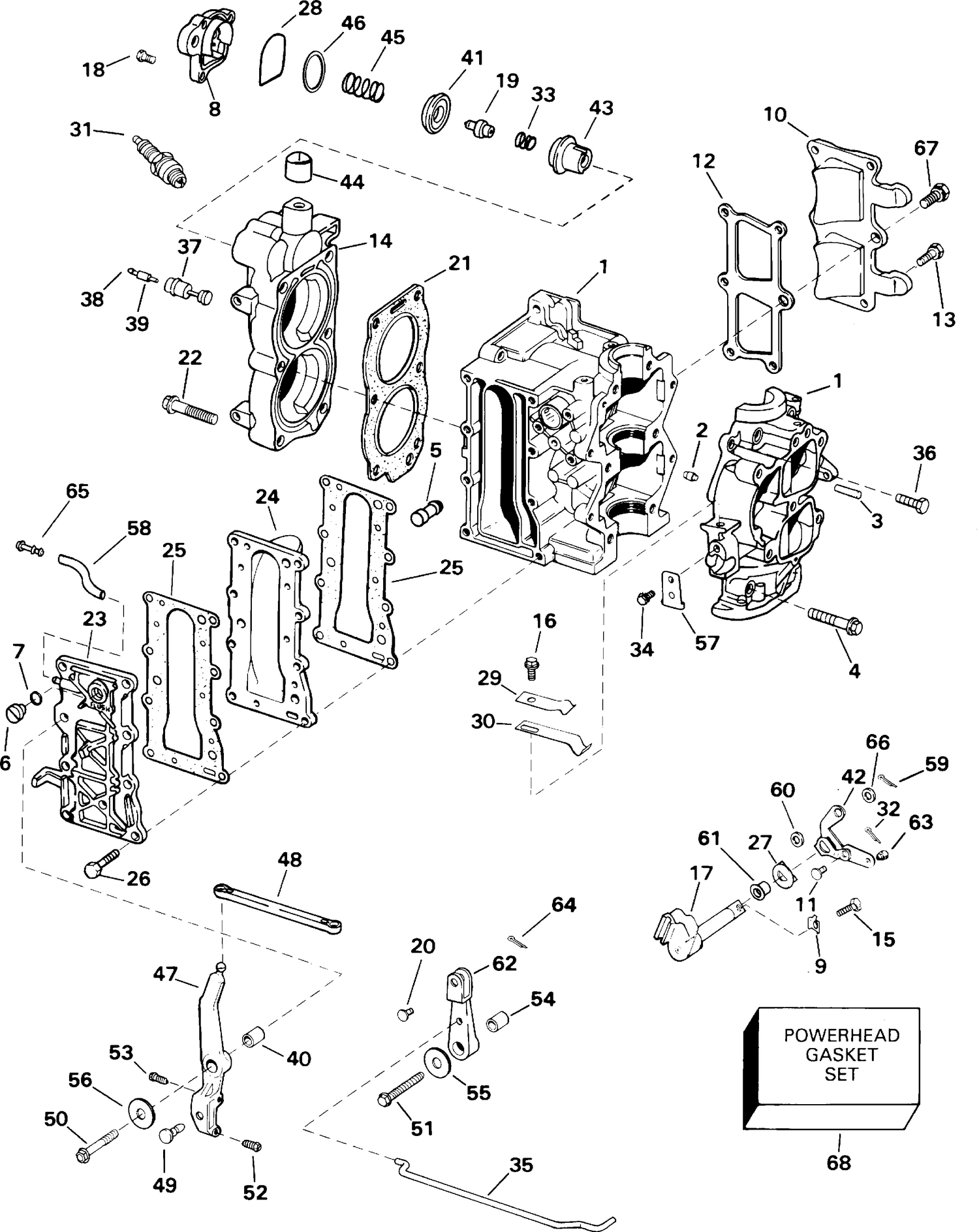

| Ref | Part Number | Description |
|---|
| 1 |
0438595 |
CYLINDER & C'CASE ASSY. |
| 8 |
0338234 |
COVER, Thermostat |
| 9 |
0319537 |
CLIP |
| 10 |
0336637 |
BYPASS COVER |
| 12 |
0319332 |
GASKET, By-pass cover |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0338221 |
CYLINDER HEAD |
| 15 |
0308017 |
SCREW, Bellcrank to shift lever |
| 17 |
0435226 |
SHAFT & LEVER, Shift |
| 19 |
0436195 |
ENSEMBLE THERMOSTAT |
| 21 |
0338222 |
GASKET, Cylinder head |
| 22 |
0319226 |
SCREW, Cylinder head |
| 23 |
0435266 |
EXHAUST COVER, Outer |
| 24 |
0328497 |
EXHAUST COVER, Inner |
| 25 |
0318925 |
GASKET, Exhaust cover |
| 26 |
0302288 |
BOLT |
| 27 |
0339208 |
SPACER, Shift shaft |
| 29 |
0330212 |
RESSORT, appui, dispositif de blocage commande sens de marche |
| 30 |
0330913 |
RESSORT, dispositif de blocage |
| 31 |
0437684 |
SPARK PLUG, Champion QL82C |
| 36 |
0306049 |
SCREW |
| 41 |
0437694 |
ENSEMBLE MEMBRANE & COUPELLE |
| 42 |
0338208 |
BELLCRANK, Shift rod |
| 44 |
0339692 |
SLEEVE |
| 47 |
0435714 |
THROTTLE LEVER |
| 48 |
0338295 |
LINK, Throttle |
| 58 |
0339713 |
HOSE, Overboard indicator |
| 60 |
0304380 |
RONDELLE ÉLASTIQUE |
| 61 |
0335521 |
BAGUE, levier de sens de marche vers bloc |
| 63 |
0316128 |
BUSHING, Starter link |
| 65 |
0336597 |
INDICATOR, Overboard pump |
| 67 |
0332203 |
SCREW, By-pass cover |
