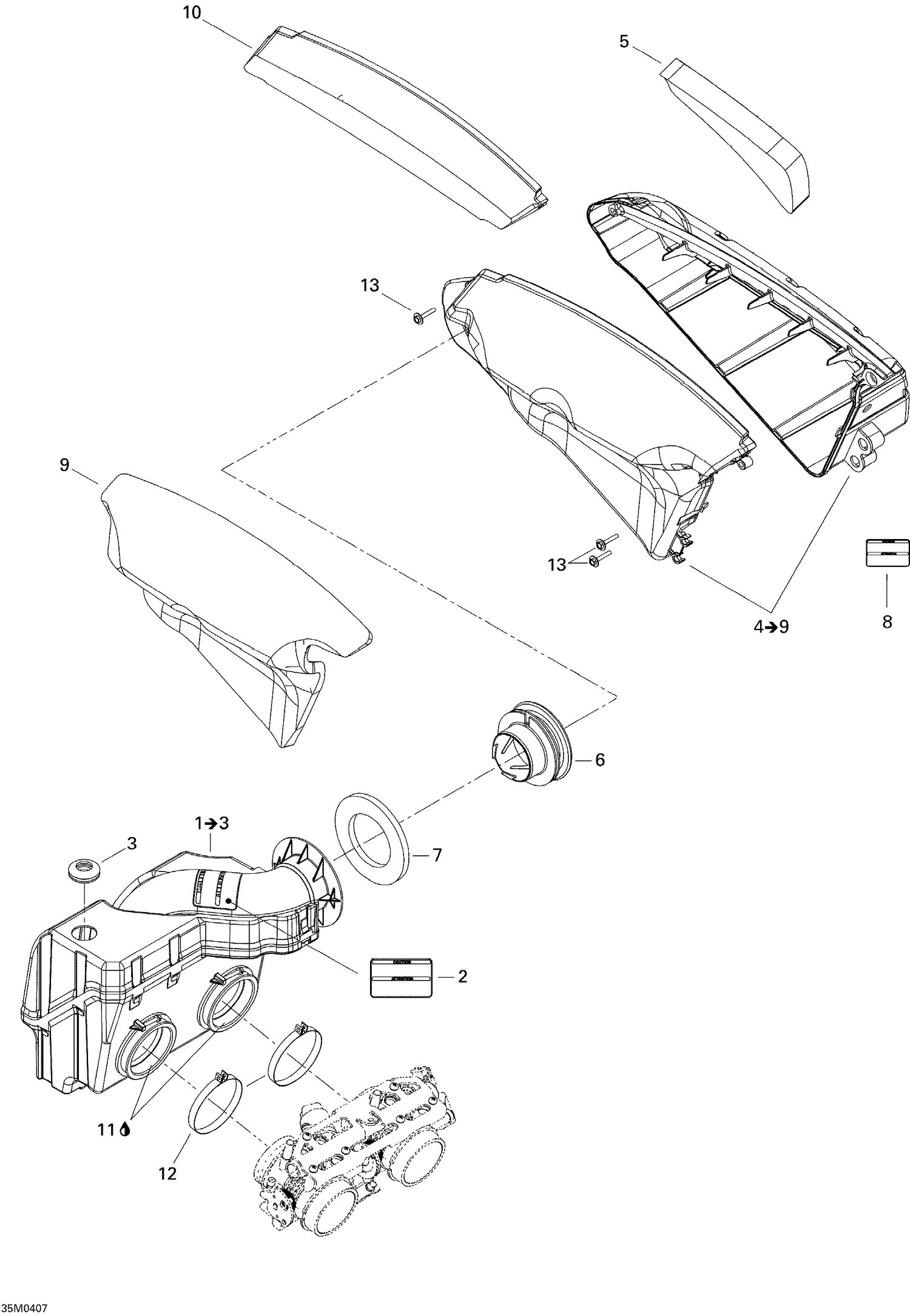

| Ref | Part Number | Description |
|---|
| 2 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 3 |
570065500 |
GROMMET - Call your local BRP dealership |
| 5 |
508000145 |
Inner Foam |
| 6 |
508000240 |
GUIDE - Call your local BRP dealership |
| 7 |
508000199 |
OUTER FOAM - Call your local BRP dealership |
| 8 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 9 |
508000310 |
OUTER FOAM - Call your local BRP dealership |
| 10 |
508000394 |
Air Filter |
| 11 |
779123 |
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200. |
| 12 |
508000346 |
Gemi Clamp |
