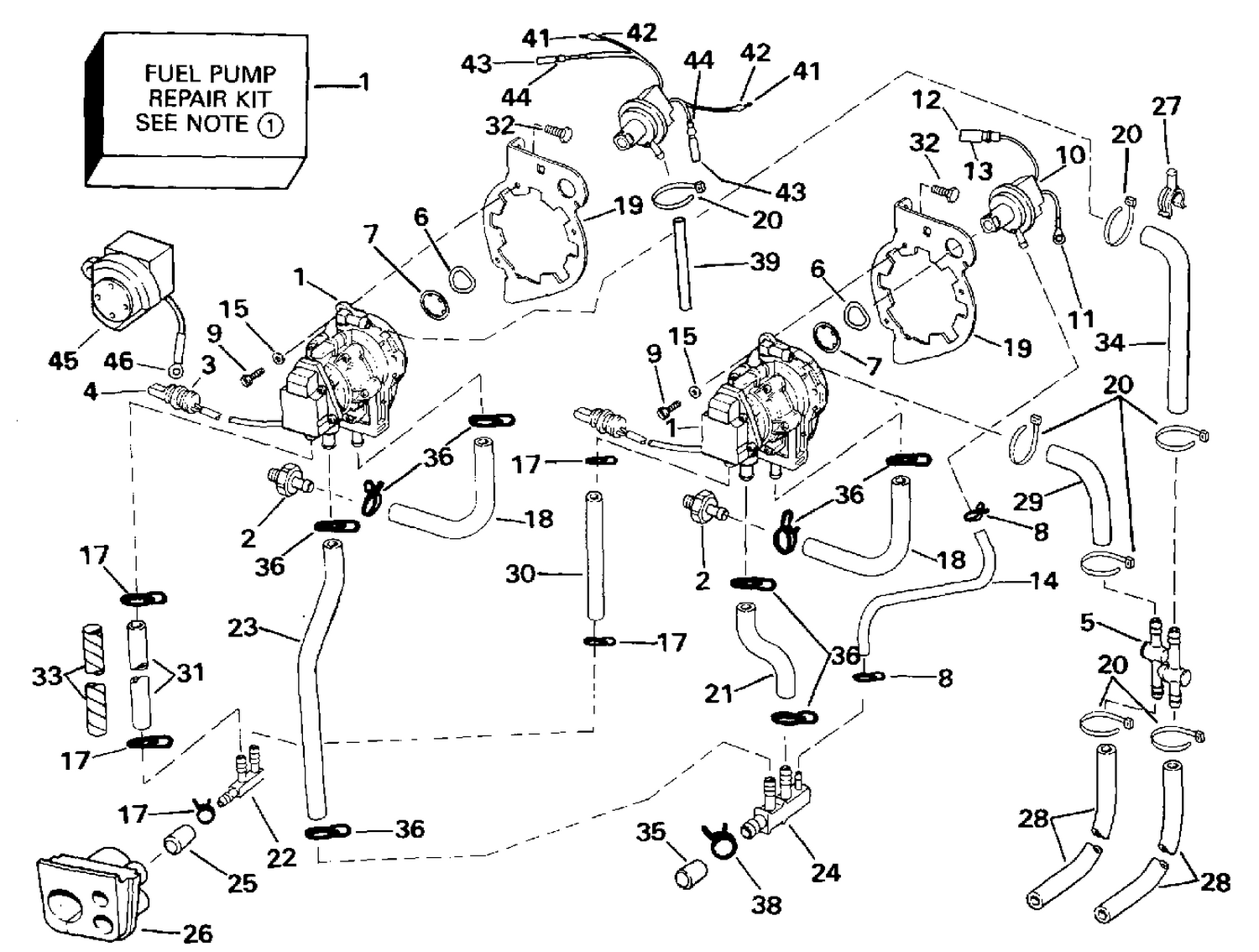

| Ref | Part Number | Description |
|---|
| 1 |
5007420 |
Kit Ay This part replaces 0435558. |
| 5 |
0397502 |
BYPASS VALVE |
| 6 |
0909678 |
JOINT TORIQUE, interrupteur d'aspiration vers support |
| 8 |
0339276 |
SERRE-FILS |
| 10 |
0586544 |
VACUUM SWITCH This part replaces 0435703. |
| 14 |
HOSE, |
Tee to vacuum switch, 9 1/2 " |
| 17 |
0339277 |
CLAMP, Exh back pressure hose |
| 18 |
PULSE |
HOSE, 6 1/4 " |
| 20 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 21 |
0333399 |
HOSE, Fitting to lower pump |
| 22 |
0331062 |
FITTING, Oil hose |
| 23 |
0333400 |
HOSE, Fitting to upper pump |
| 24 |
0331055 |
FITTING, Fuel hose |
| 26 |
0332244 |
GROMMET |
| 27 |
0329661 |
SUPPORT/BOUCHON |
| 28 |
0334769 |
HOSE, Tee to lower manifold |
| 29 |
0333381 |
HOSE, Connector to filter |
| 30 |
HOSE, |
Fitting to pump, 3 1/2 " |
| 31 |
HOSE, |
Fitting to pump, 9 1/2 " |
| 32 |
0122147 |
VIS, connecteur |
| 33 |
0331443 |
SPIRAL TUBE, Oil line, upper |
| 34 |
0334424 |
HOSE, Filter to fuel pump |
| 35 |
0331649 |
CAP, Connector - fuel |
| 36 |
0339278 |
COLLIER DE SERRAGE |
| 38 |
0339279 |
COLLIER DE SERRAGE, conduite de carburant |
| 39 |
0339046 |
HOSE, Vacuum switch to manifold |
| 40 |
0435293 |
VACUUM SWITCH 250 & 300CR |
| 45 |
0585992 |
HORN This part replaces 0584784. |
