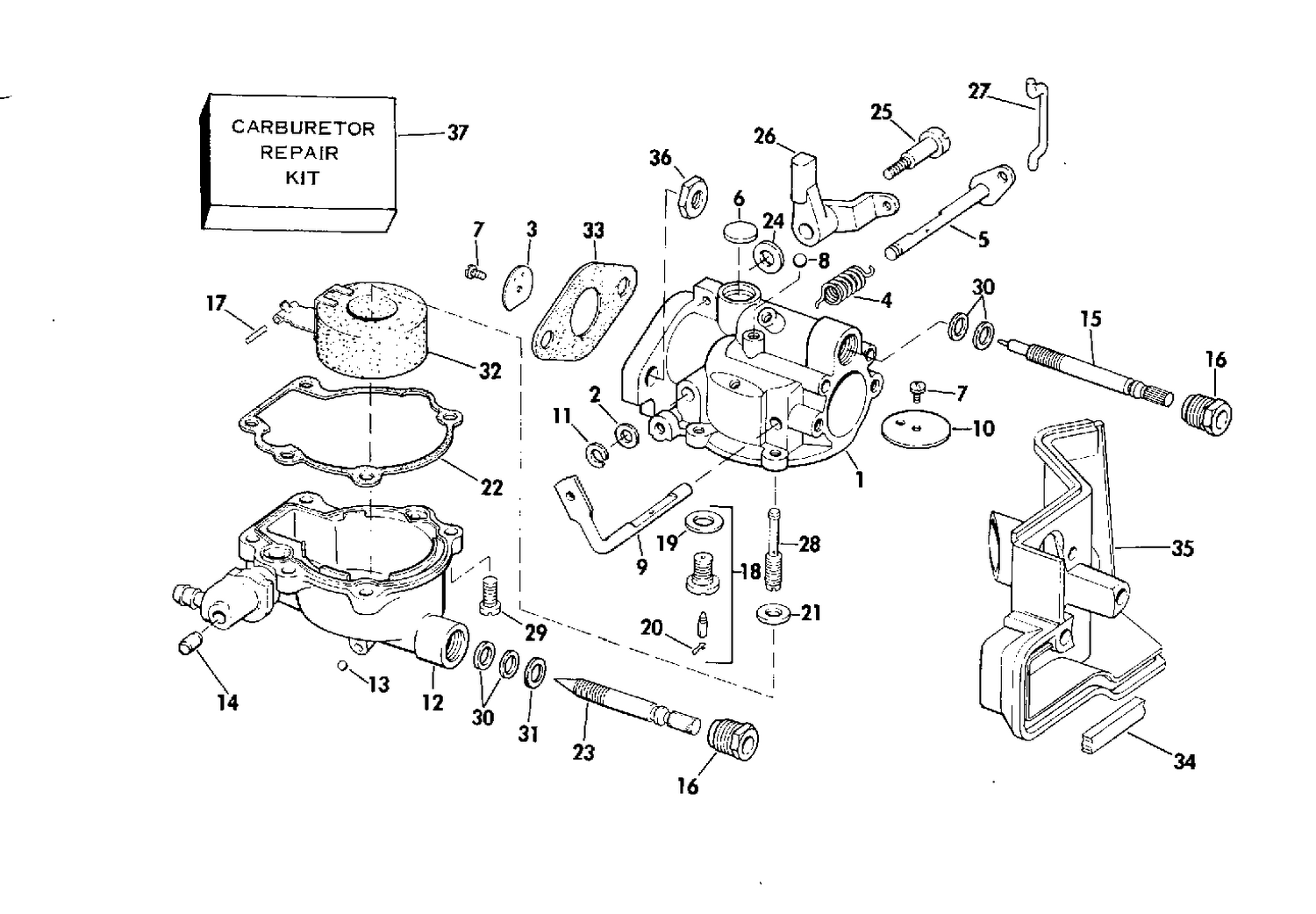

| Ref | Part Number | Description |
|---|
| 1 |
0386184 |
BODY ASSY |
| 11 |
0203949 |
E RING LINK This part replaces 0202755. |
| 12 |
0382999 |
FLOAT CAHMBER ASSY. |
| 15 |
0431629 |
NEEDLE VALVE, Low speed This part replaces 0316453. |
| 17 |
0300096 |
HINGE PIN |
| 20 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 21 |
0302984 |
GASKET |
| 23 |
0316980 |
NEEDLE VALVE, High speed |
| 26 |
0314507 |
CAM FOLLOWER |
| 27 |
0330192 |
LINK, Cam follower This part replaces 0312830. |
| 28 |
0314264 |
NOZZLE, High speed |
| 29 |
0307045 |
NOZZLE, High speed |
| 33 |
0303003 |
GASKET |
| 34 |
0320406 |
SEAL, Air silencer |
| 35 |
0320407 |
AIR SILENCER |
| 36 |
0328742 |
NUT This part replaces 0306338. |
| 0386182 |
0386182 |
CARBURETOR ASSY., Complete |
