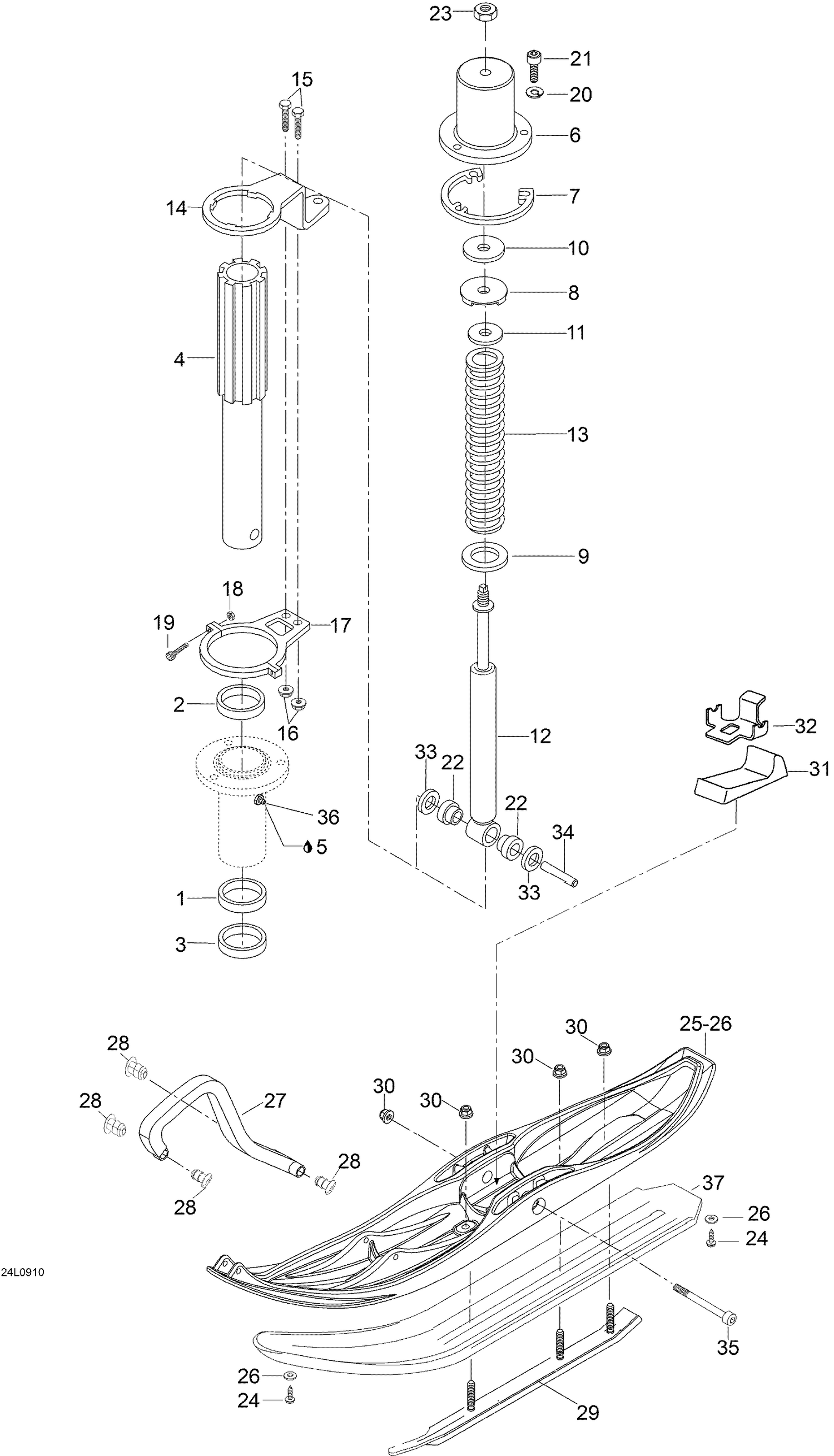

| Ref | Part Number | Description |
|---|
| 1 |
414803200 |
Lower Cushion |
| 2 |
414803100 |
Upper Cushion |
| 3 |
316373 |
Seal - Call your local BRP dealership This part replaces M316373. |
| 4 |
5245362 |
Skileg 8 GR - Call your local BRP dealership This part replaces M5245362. |
| 5 |
Not |
Available As Spare Part - Synthetic Grease, 400 g |
| 6 |
605249284 |
PAINTED COVER - Call your local BRP dealership |
| 7 |
503145600 |
SPACER - Call your local BRP dealership |
| 8 |
605354835 |
Rubber Bumber |
| 9 |
549493 |
Washer This part replaces M549493. |
| 10 |
605455680 |
Absorberfibber washer - Call your local BRP dealership This part replaces M5440399. |
| 11 |
605455680 |
Absorberfibber washer - Call your local BRP dealership This part replaces M549492. |
| 12 |
M23134 |
Front Gaz Shock |
| 13 |
605625001 |
SPRING, BLACK - Call your local BRP dealership |
| 14 |
605353422 |
RH STEERING ARM - Call your local BRP dealership |
| 14 |
605353423 |
LH STEERING ARM - Call your local BRP dealership |
| 15 |
207162544 |
Hex. Screw M6 X 25 |
| 16 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 17 |
619380015 |
Support Ass'Y This part replaces M5344180. |
| 18 |
232541414 |
Elastic Stop Nut M4 |
| 19 |
M40146 |
Screw |
| 20 |
234181401 |
Lock Washer 8 mm |
| 21 |
205082044 |
Socket Head Screw M8 X 20 |
| 22 |
572034500 |
Cushion |
| 23 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 24 |
M40901 |
SCREW-HEX. - Call your local BRP dealership |
| 26 |
605348392 |
Bushing |
| 27 |
505070963 |
Black, Handle |
| 28 |
505071812 |
Retainer 17mm long |
| 29 |
619400006 |
CARBIDE SKI RUNNER ASS'Y - Call your local BRP dealership |
| 30 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074. |
| 31 |
605348439 |
RUBBER STOPPER - Call your local BRP dealership |
| 32 |
605348437 |
PLATE SUPPORT - Call your local BRP dealership |
| 33 |
605448594 |
BUSHING - Call your local BRP dealership |
| 34 |
505073209 |
Ski Axle This part replaces 605348921. |
| 35 |
40225 |
Allen Screw M10x140 8.8zn(1=10pcs) This part replaces M40225. |
| 36 |
M34019 |
Grease Fitting |
