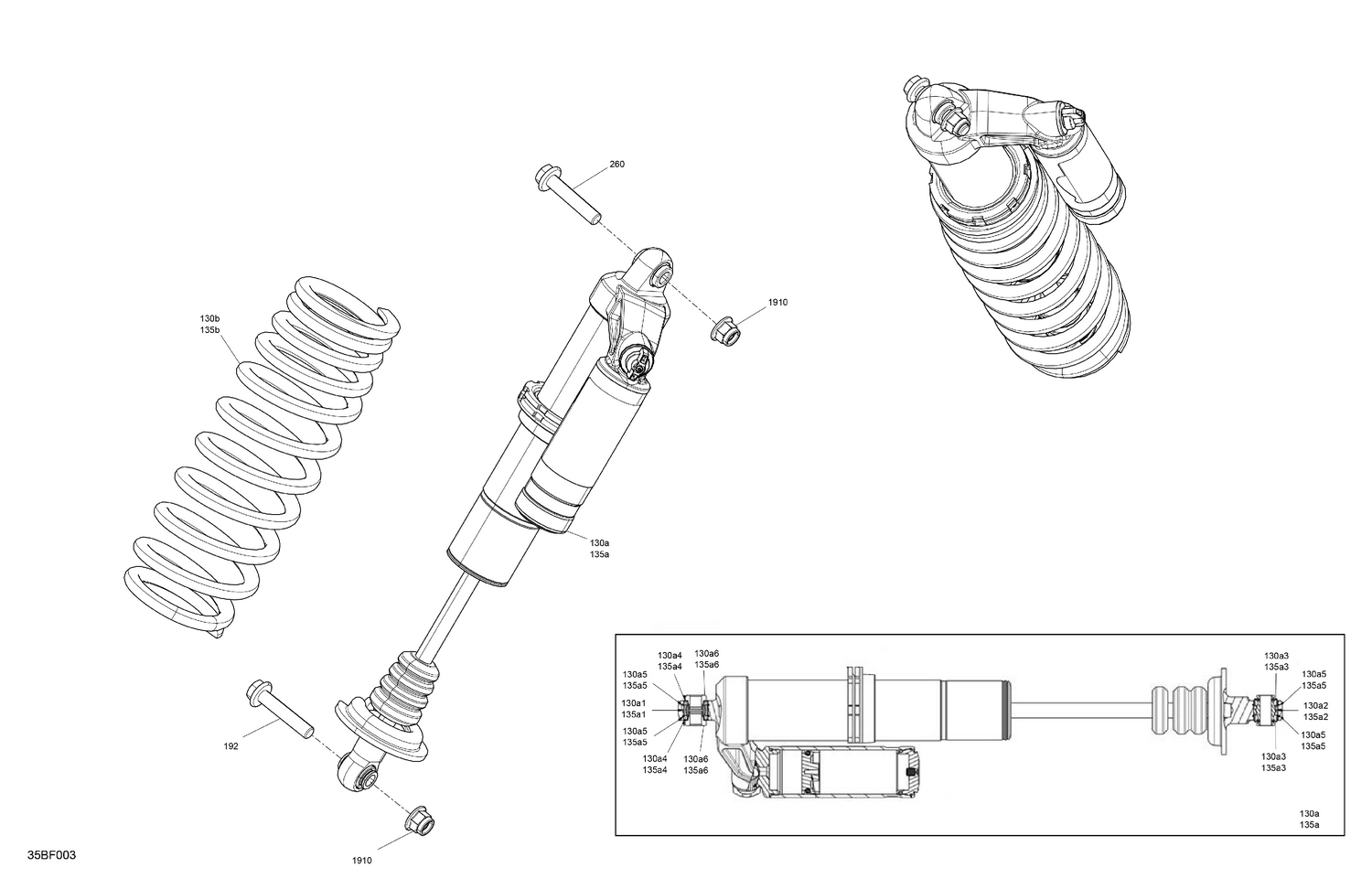

05- Suspension - Front Shocks
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 130a1 | 715900329 | Spherical Bearing |
| 130a2 | 715900330 | Spherical Bearing |
| 130a3 | 715900331 | Protector |
| 130a4 | 715900268 | O-Ring Bushing |
| 130a5 | 715900252 | Retaining Ring |
| 130a6 | 715900267 | Internal Bushing |
| 130b | 706205392 | Deep Black, Compression Spring |
| 135a1 | 715900329 | Spherical Bearing |
| 135a2 | 715900330 | Spherical Bearing |
| 135a3 | 715900331 | Protector |
| 135a4 | 715900268 | O-Ring Bushing |
| 135a5 | 715900252 | Retaining Ring |
| 135a6 | 715900267 | Internal Bushing |
| 135b | 706205392 | Deep Black, Compression Spring |
| 192 | 250000857 | Flange Screw M12 X 60 |
| 260 | 250000857 | Flange Screw M12 X 60 |
