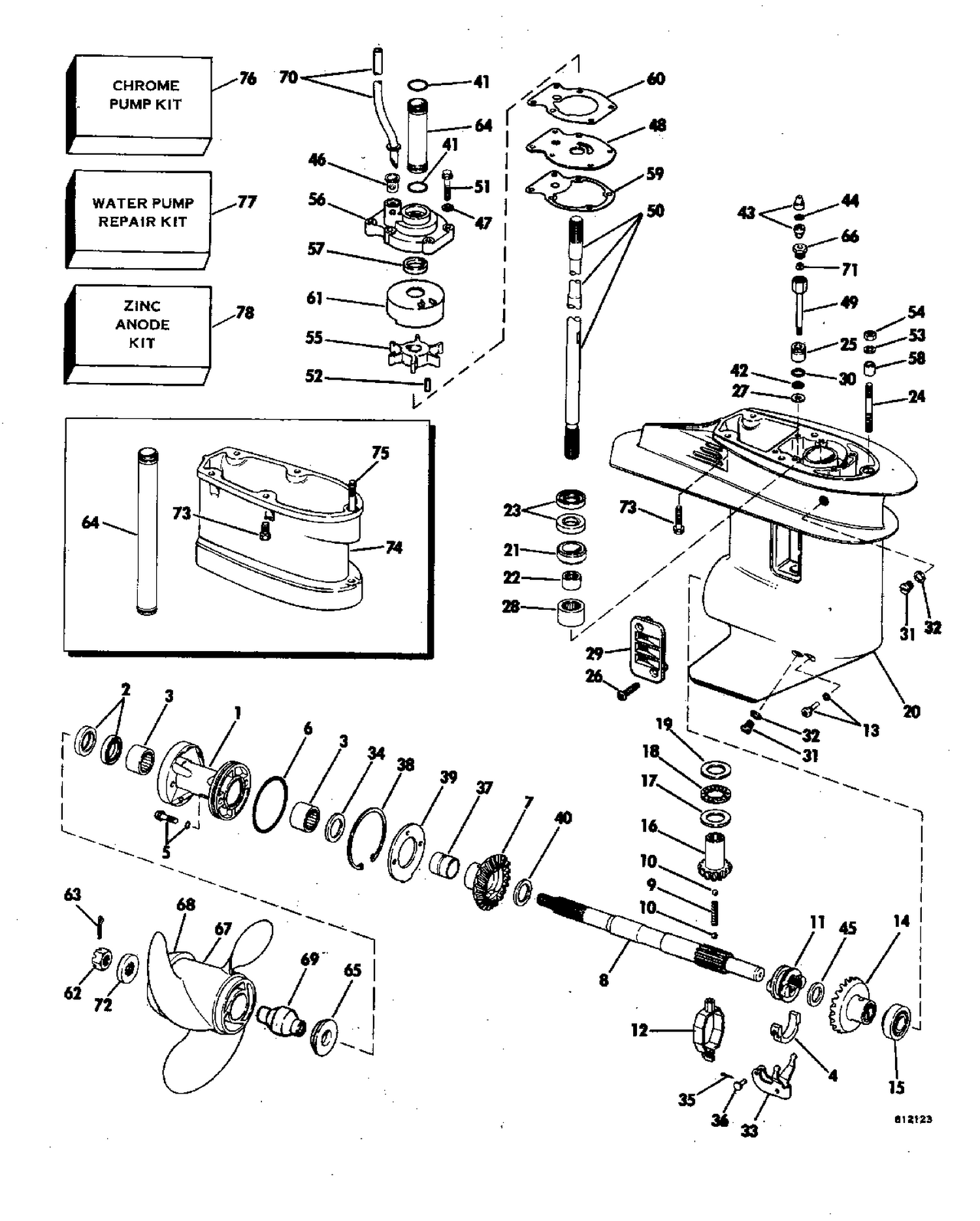

| Ref | Part Number | Description |
|---|
| 1 |
5008160 |
LOGEMENT DE ROULEMENT & JOINT This part replaces 0387023. |
| 4 |
0321512 |
CRADLE, Clutch dog |
| 7 |
0322080 |
GEAR, Reverse |
| 8 |
0386418 |
PROPELLEER SHAFT |
| 11 |
0319565 |
SHIFTER, Clutch dog |
| 14 |
0388125 |
GEAR & BUSHING ASSY., Fwd |
| 16 |
0322079 |
PINION, Driveshaft |
| 17 |
0322688 |
THRUST WASHER, Bearing |
| 19 |
0319667 |
THRUST WASHER |
| 20 |
0391340 |
GEARCASE, Bearing & seal |
| 33 |
0320118 |
LEVER, Shifting |
| 40 |
0319685 |
THRUST WASHE,Rear |
| 42 |
0301877 |
O RING SHIFT ROD |
| 43 |
0391652 |
SCRAPER, Shift rod & O-ring |
| 44 |
0326956 |
JOINT TORIQUE, friction de direction |
| 45 |
0319686 |
THRUST WASHER, Front |
| 47 |
0322078 |
WATER TUBE, Long |
| 48 |
0327704 |
PLATE, Impeller housing This part replaces 0325536. |
| 49 |
0325529 |
SHIFT ROD, Lower |
| 50 |
0323261 |
DRIVESHAFT, Std |
| 50 |
0323262 |
DRIVESHAFT, Long |
| 51 |
0324960 |
SCREW, Impeller housing |
| 52 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 55 |
0388702 |
IMPELLER ASSY |
| 56 |
0390189 |
IMPELLER HOUSING & SEAL |
| 60 |
0325535 |
GASKET, Housing to plate |
| 64 |
0326692 |
SPACER, Impeller housing |
| 65 |
0319890 |
THRUST BUSHING, Prop |
| 66 |
0325624 |
CONNECTOR, Shift rod |
| 67 |
0387320 |
PROPELLER 11 1/4 X 7 AL |
| 67 |
0387525 |
PROPELLER 10 1/2 X 11 SST |
| 67 |
0387526 |
PROPELLER 11 X 9 SST |
| 67 |
0388866 |
PROPELER 10 X 13 SST |
| 67 |
0390731 |
PROPELLEER 10 X 17 SST |
| 67 |
0391064 |
PROPELLER 10 * 17 AL. |
| 67 |
0765048 |
PROPELLER, Aluminum, 3 x 11 in. x 9 P This part replaces 0386317. |
| 67 |
0765049 |
PROPELLER This part replaces 0386637. |
| 67 |
0778863 |
PROPELLER This part replaces 0386933. |
| 70 |
0322077 |
WATER TUBE, Standard |
| 70 |
0322078 |
WATER TUBE, Long |
| 71 |
0325625 |
KEEPER, Shift rod |
| 73 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0324429. |
| 74 |
0389343 |
EXTENSION & STUD |
| 76 |
0394415 |
CHROME CUP & PLATE KIT This part replaces 0390287. |
| 77 |
0393630 |
WATER PUMP REPAIR KIT (Includes impeller housing) This part replaces 0390344. |
| 0317178 |
0317178 |
O RING |
| 0390383 |
0390383 |
GEARCASE ASSY. |
| 0390855 |
0390855 |
EXTENSION KIT ASSY. 5 INCH LONGER PARTS |
