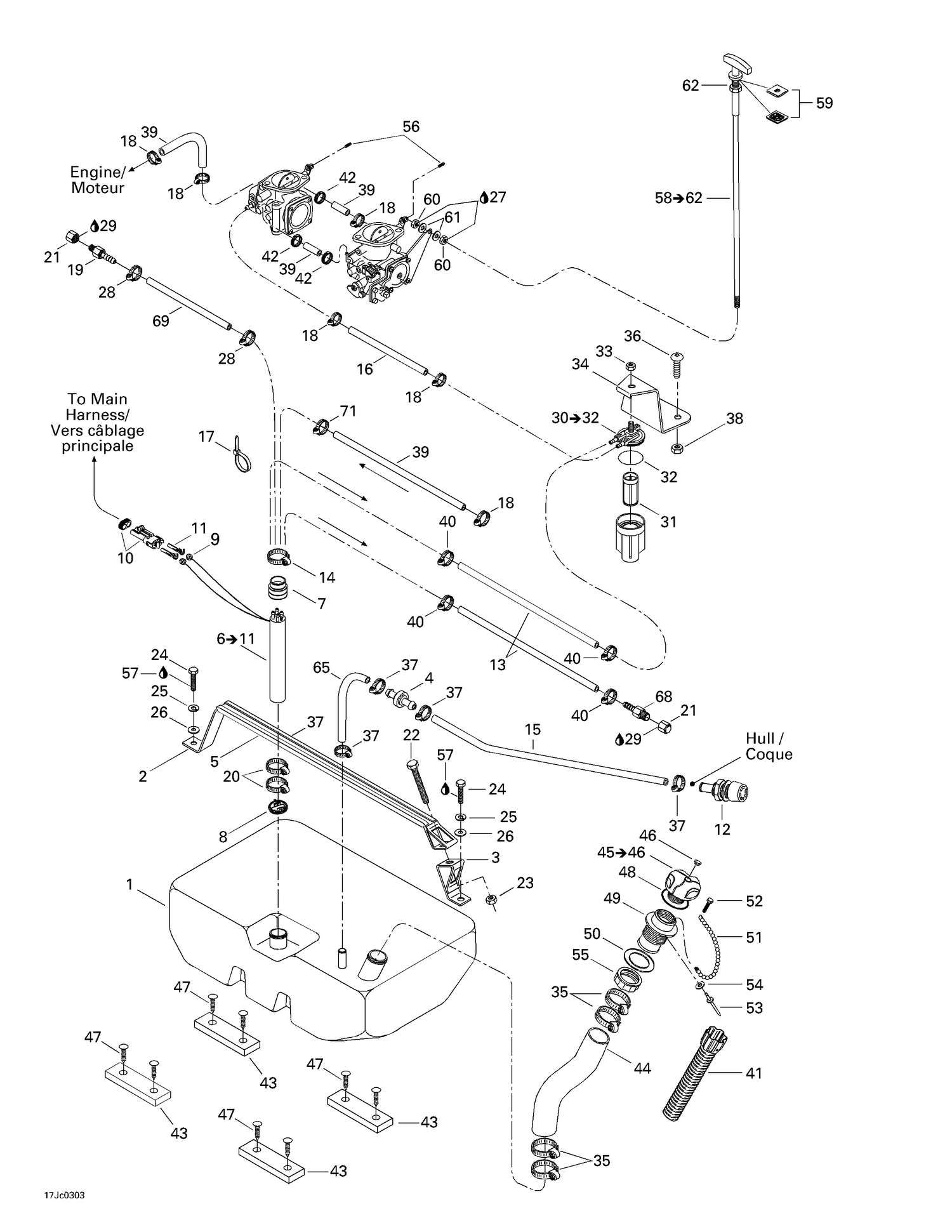

| Ref | Part Number | Description |
|---|
| 1 |
204560124 |
Plastic Fuel Tank |
| 2 |
204560128 |
Metal Strap |
| 3 |
275500202 |
Strap Bracket |
| 4 |
204560101 |
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership |
| 5 |
204560129 |
Rubber Pad |
| 7 |
275500111 |
Tube Adapter |
| 8 |
275500397 |
FUEL FILTER - Call your local BRP dealership |
| 9 |
278000218 |
Wire Seal |
| 10 |
278000220 |
Male Connector, 2 Circuits |
| 11 |
278000223 |
Female Terminal |
| 12 |
275500206 |
VENT BOAT - Call your local BRP dealership |
| 13 |
204560177 |
Hose 5/16”, Meter |
| 14 |
293650077 |
Norma Clamp This part replaces 293650078. |
| 15 |
204560358 |
HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 16 |
204560177 |
Hose 5/16”, Meter |
| 17 |
414115200 |
Tie-Rap 180 mm |
| 18 |
293650170 |
Tridon Gear Clamp This part replaces 293650128. |
| 19 |
204560265 |
COUPLER - Call your local BRP dealership |
| 20 |
293650081 |
Norma Clamp |
| 21 |
204560263 |
Pipe Cap |
| 22 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 23 |
232581600 |
Hex. Elastic Nut M8 |
| 24 |
207183060 |
Hex. Screw M8 X 30 |
| 25 |
234181601 |
Lock Washer 8 mm, Stainless |
| 26 |
234082600 |
Flat Washer 8 mm, Stainless |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
293650121 |
NORMA CLAMP - Call your local BRP dealership |
| 29 |
219704454 |
Was 293800013 Loctite 56765 |
| 31 |
275500089 |
FUEL FILTER - Call your local BRP dealership |
| 32 |
275500090 |
O-Ring |
| 33 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 34 |
204560113 |
FUEL TANK, PLASTIC - Call your local BRP dealership |
| 35 |
293650081 |
Norma Clamp |
| 36 |
208462060 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 37 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 38 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 39 |
219704396 |
HOSE-6MM. 5000MM LONG - Call your local BRP dealership |
| 40 |
293650070 |
NORMA CLAMP - Call your local BRP dealership |
| 41 |
275500757 |
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067. |
| 42 |
293650042 |
Oetiker Clamp |
| 43 |
204060704 |
Rubber Pad |
| 44 |
204560163 |
Filler Neck Hose |
| 46 |
293000034 |
Black, Snap Cap |
| 47 |
293730006 |
Black, Dart |
| 48 |
293250017 |
Gasket |
| 49 |
275500247 |
Filler Neck |
| 50 |
293250029 |
Gasket |
| 51 |
275500015 |
Oil Cap Chain |
| 52 |
241140060 |
Screw K40 X 10 |
| 53 |
293150057 |
Rivet 1/8” |
| 54 |
234032600 |
Flat Washer M3, Stainless |
| 55 |
211100012 |
Filler Neck Nut, Fuel |
| 56 |
206540660 |
Socket Set Screw M4 x 6 |
| 57 |
293800005 |
Loctite 271, 10 ml |
| 59 |
291000457 |
Choke Plate |
| 60 |
232160600 |
Hex. Nut M6 |
| 61 |
234061600 |
Stainless Flat Washer M6 |
| 62 |
211100007 |
Hex. Nut |
| 68 |
204560264 |
Hose Fitting |
