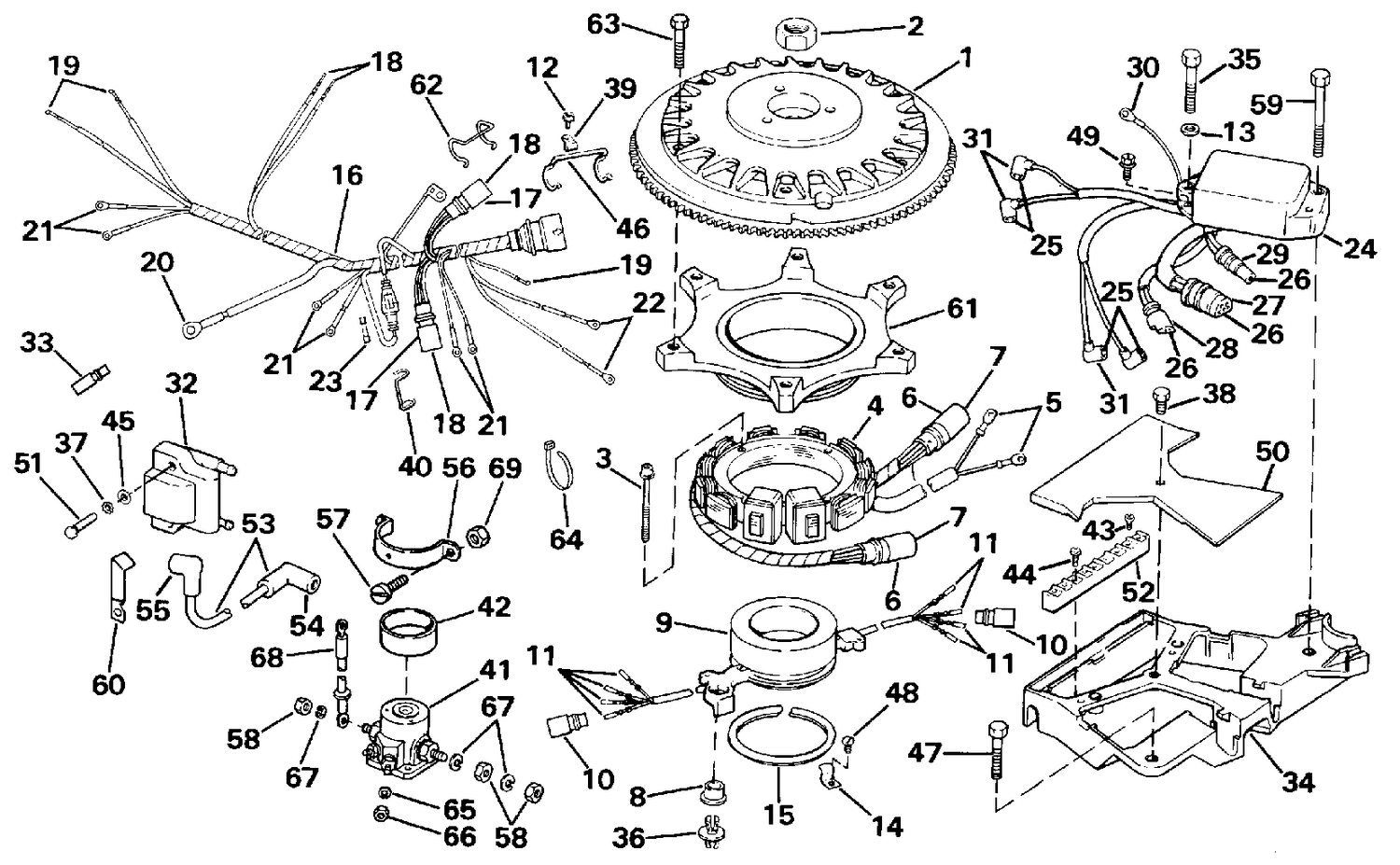

| Ref | Part Number | Description |
|---|
| 1 |
0583969 |
FLYWHEEL ASSY. This part replaces 0583281. |
| 4 |
0583117 |
STATOR ASSY |
| 8 |
0329168 |
SOCKET |
| 9 |
0583148 |
TIMER BASE & SENSOR ASSY. |
| 15 |
0313666 |
RET., Distributor base 1 |
| 16 |
0583033 |
ENGINE CABLE ASSY. |
| 24 |
0582262 |
POWER PACK |
| 29 |
0123404 |
CONNECTOR, 1-socket plug |
| 32 |
0582508 |
COIL ASSY |
| 33 |
0123405 |
CONNECTOR |
| 34 |
0582696 |
ELECTRICAL BRACKET ASSY. |
| 35 |
0324814 |
ECREW,Exhaust cover,1-1/2"long |
| 36 |
0330368 |
BUSHING, Timber base |
| 38 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 42 |
0311217 |
MANCHON, solénoïde |
| 43 |
0329182 |
VIS, borne |
| 44 |
0306644 |
VIS, capteur de papillon |
| 47 |
0303398 |
VIS, support |
| 49 |
0329182 |
VIS, borne |
| 50 |
0395312 |
COVER ASSY. |
| 52 |
0512656 |
TERMINAL BLOCK |
| 53 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 56 |
0330112 |
BRIDE, solénoïde vers démarreur |
| 59 |
0312495 |
SCREW, Adapter to inner hsg. |
| 62 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 63 |
0325115 |
SCREW, Oil tank/EMM mount |
| 64 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
