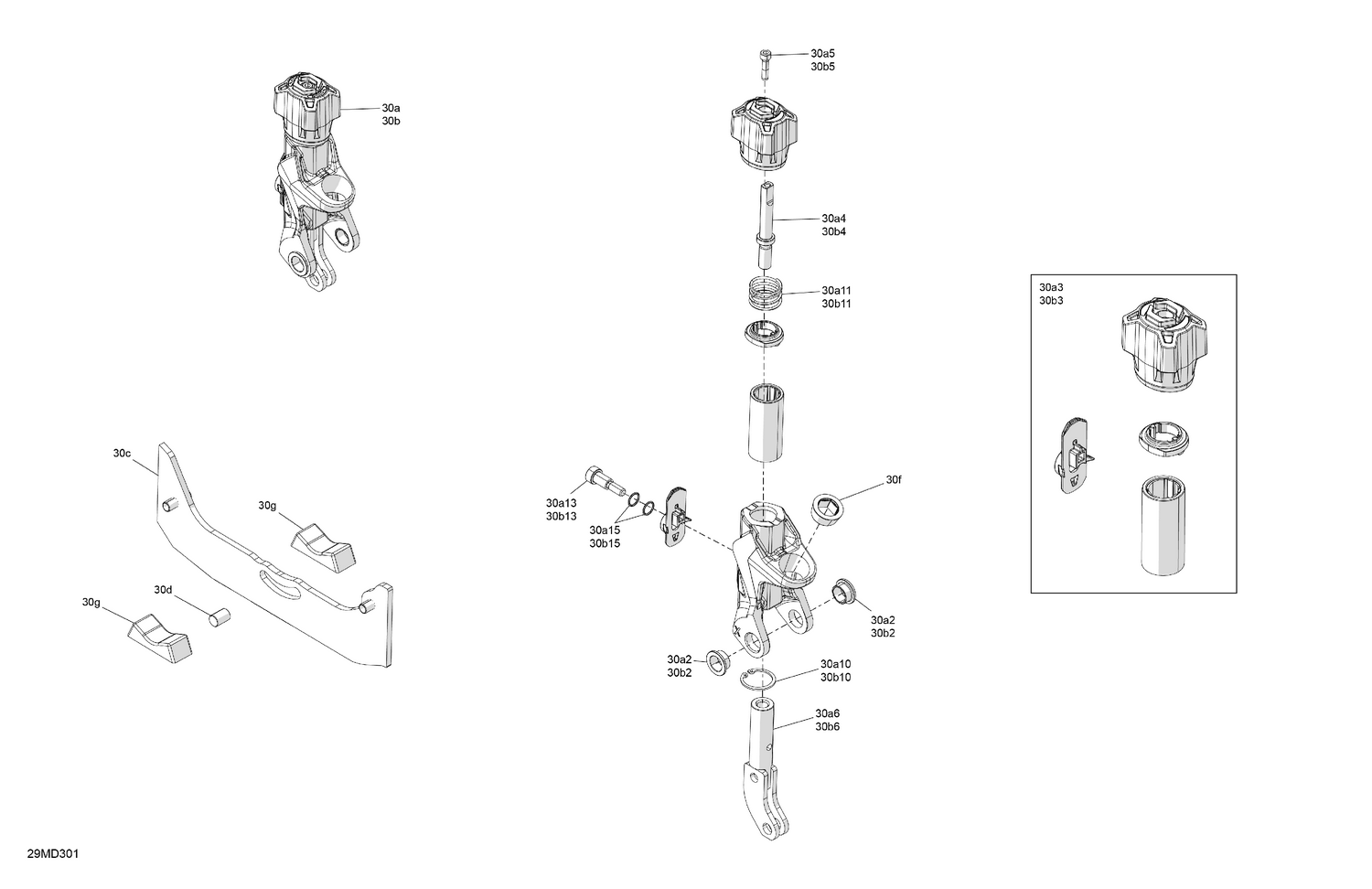

05- Suspension - Front Runner Mechanism
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 30a10 | 293370109 | Circlip |
| 30a11 | 505073785 | Spring |
| 30a13 | 505073767 | Screw |
| 30a15 | 293300013 | O-Ring |
| 30a2 | 505073773 | Bushing |
| 30a3 | 415130043 | Knob Adjuster Repair Kit |
| 30a4 | 505073771 | Shaft |
| 30a5 | 250000925 | Socket Head Screw M6 X 25 |
| 30a6 | 505073761 | Tip |
| 30b10 | 293370109 | Circlip |
| 30b11 | 505073785 | Spring |
| 30b13 | 505073767 | Screw |
| 30b15 | 293300013 | O-Ring |
| 30b2 | 505073773 | Bushing |
| 30b3 | 415130043 | Knob Adjuster Repair Kit |
| 30b4 | 505073771 | Shaft |
| 30b5 | 250000925 | Socket Head Screw M6 X 25 |
| 30b6 | 505073761 | Tip |
| 30c | 860202192 | Runner |
| 30d | 505073782 | Pin |
| 30f | 505073772 | Black, Rubber Grommet |
