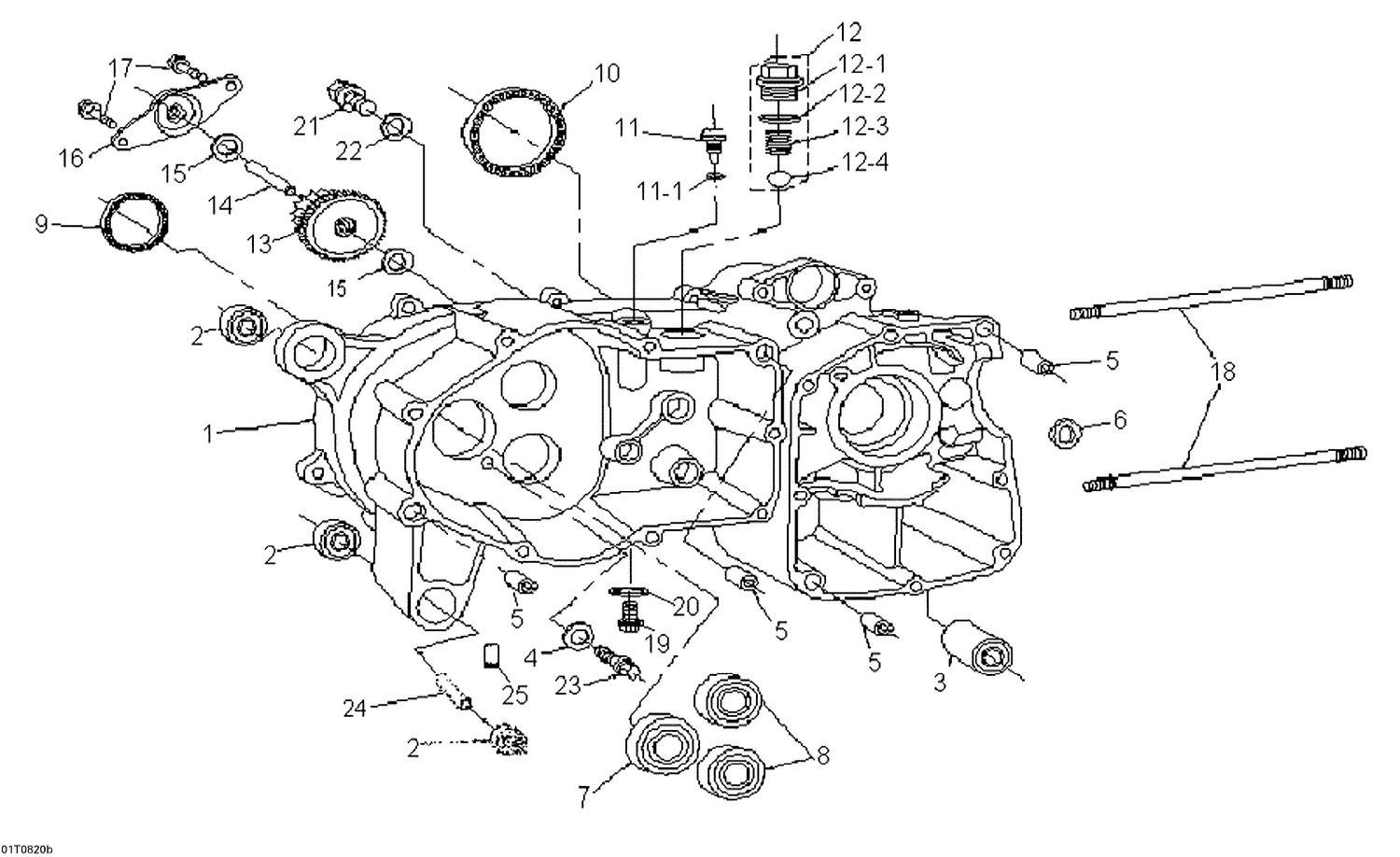

01- Crankcase, Left
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V11200CJF040LL | LH Crankcase This part replaces V11200CJF010. |
| 2 | V112034DM000 | Rubber Bushing |
| 3 | V11103CJF010 | Rubber Bushing This part replaces V11103CJF000. |
| 4 | A941010618010 | Plain Washer, 6 X 18 X 1 |
| 5 | A9430110140 | Dowel Pin |
| 6 | V91302CJF020 | O-Ring |
| 7 | A9610060030 | Radial Ball Bearing, 6003 |
| 8 | V961006201310 | Ball Bearing |
| 9 | V912034DM000 | Oil Seal |
| 10 | V91202CJF000 | Oil Seal |
| 11 | V156514DM00 | Oil Level Gauge |
| 12 | V213154DM000 | Gear Fixed Ass'y |
| 13 | V28100CJF000 | Idle Gear Ass'y |
| 14 | V28102CJF000 | Shaft Idle Gear |
| 15 | V941011016010 | Washer Flat |
| 16 | V28105CJF000 | Plate Idle Gear |
| 17 | A9600006010 | Hex. Flange Screw M6 X 10 |
| 18 | V9100106200 | Stud Bolt DS90 This part replaces V9100106203. |
| 19 | V928000801212M | Hex. Flange Screw, Magnetic |
| 20 | A941040816020 | Washer Plain This part replaces A941010816020. |
| 21 | V9602812016LL | Hexagonal Flange Bolt This part replaces V9602812016. |
| 22 | V941011220020 | Flat Washer |
| 23 | V9600006008 | Hex. Flange Screw |
| 24 | V44135CJF000 | Spacer |
