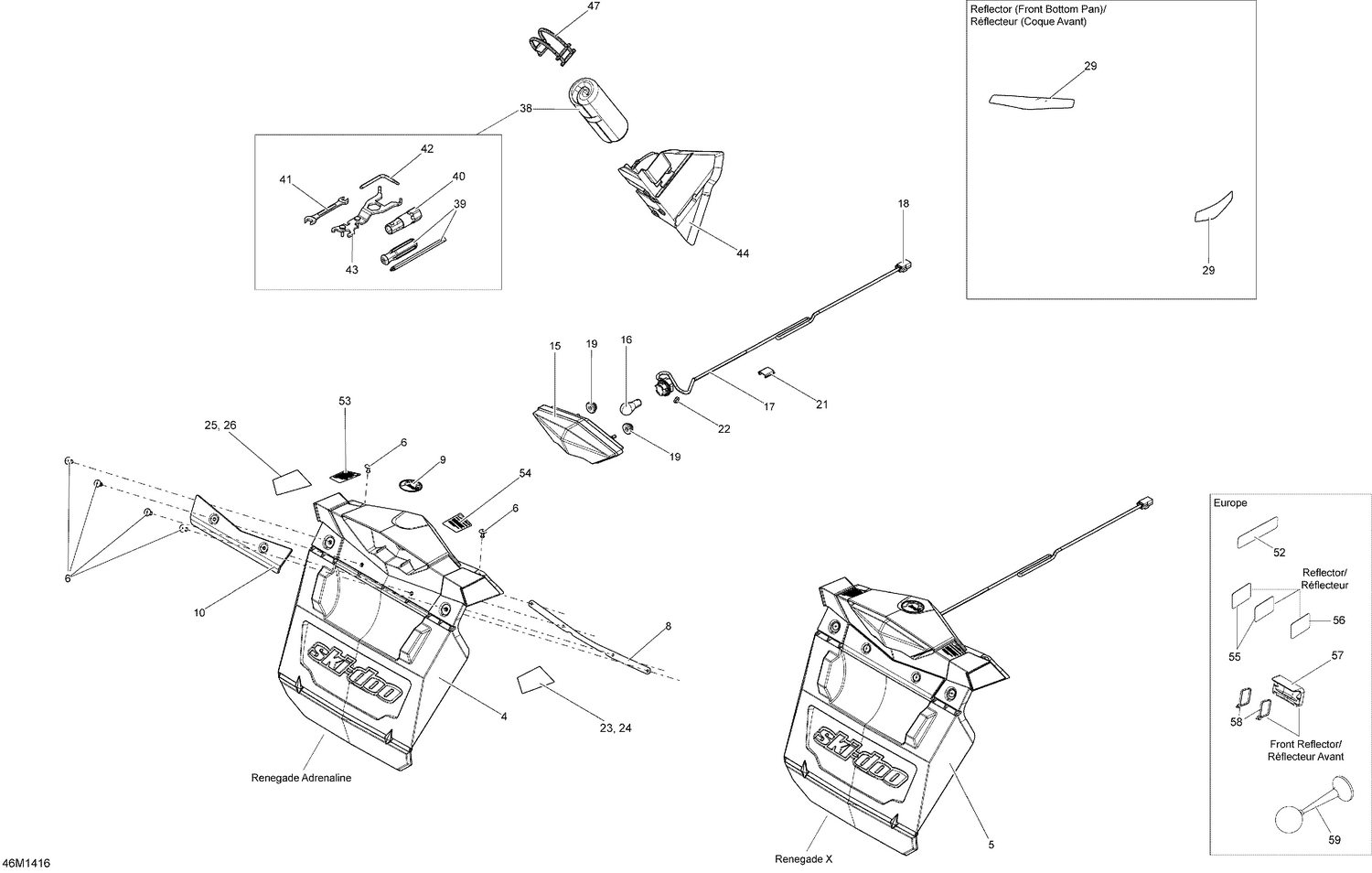

| Ref | Part Number | Description |
|---|
| 4 |
XXX |
Not Available As Spare Parts |
| 5 |
520001377 |
Snow Guard |
| 6 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 8 |
520001317 |
PLATE RIVET - Call your local BRP dealership |
| 9 |
219903947 |
BRP Logo 48 mm |
| 10 |
520000751 |
Reinforcement |
| 16 |
520000758 |
Bulb |
| 18 |
515175494 |
Male Housing, 3 Circuits |
| 19 |
705014429 |
Rubber Stopper This part replaces 705003666. |
| 21 |
520000829 |
Radiator Trim |
| 22 |
293750002 |
Tie Wrap 142 mm |
| 29 |
520001234 |
YELLOW FRONT REFLECTOR XR - Call your local BRP dealership |
| 39 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 40 |
529000046 |
Set Key, 16/21 mm |
| 41 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 42 |
520001142 |
Spacing Tool |
| 43 |
520000988 |
WRENCH SUSPENSION - Call your local BRP dealership |
| 44 |
520000720 |
TOOL KIT RACK - Call your local BRP dealership |
| 47 |
520000528 |
Latch |
| 53 |
516005590 |
WARNING DECAL, TRACK - Call your local BRP dealership |
| 54 |
516005591 |
Warning Decal, Cargo |
