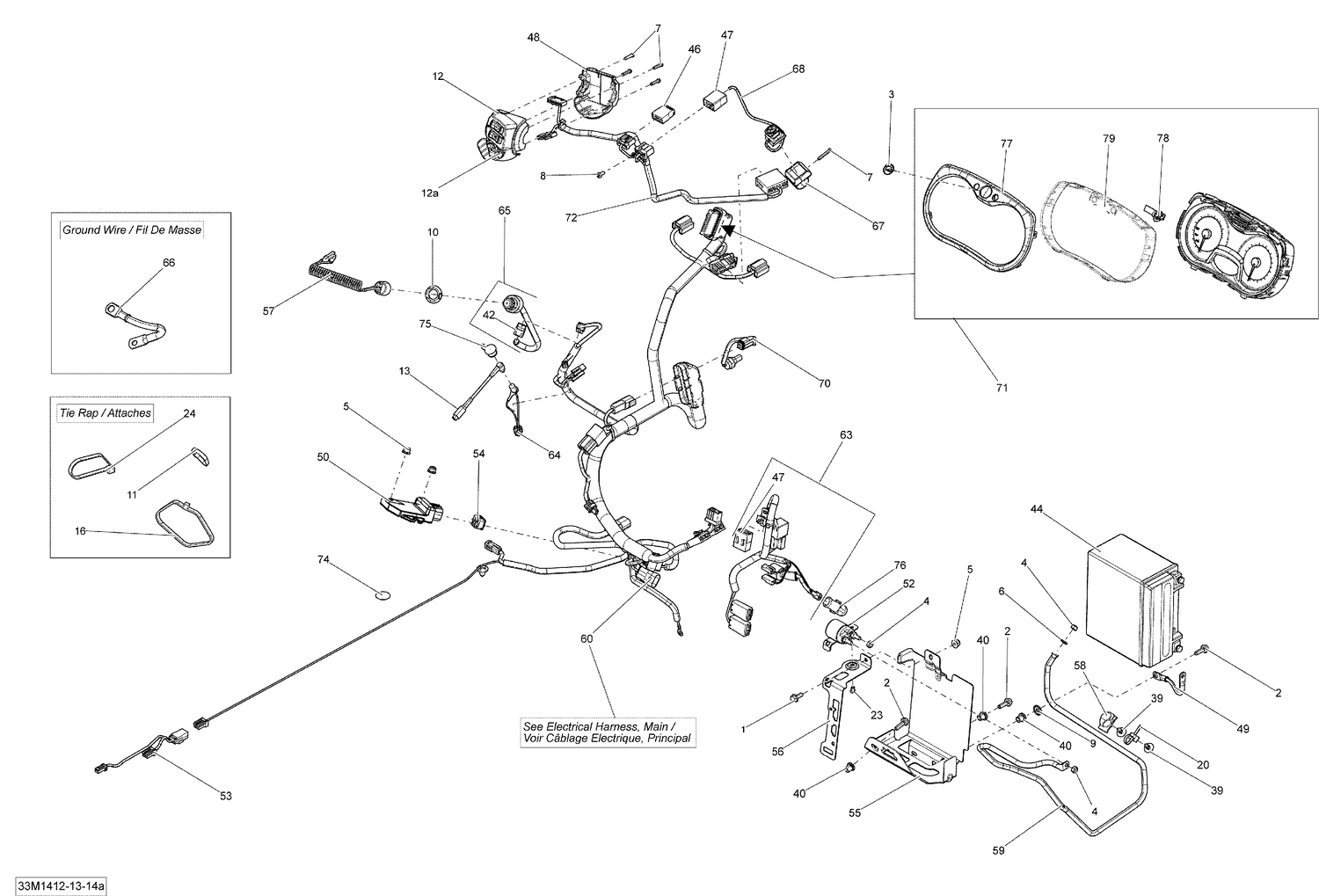

10- Electrical System 600

10- Electrical System 600

Parts (49)

RefPart NumberDescription
1 XXX Not Available As Spare Parts
2 207662044 Hex. Flange Screw M6 X 20
3 516006224 BRP Logo 20MM x 2MM This part replaces 219902677.
4 XXX Not Available As Spare Parts
5 233261414 Hex. Flange Elastic Nut M6 x 1.0
6 XXX Not Available As Spare Parts
7 250000263 Torx Screw #8-18
8 250000690 Pan Screw Forming, 7500C
9 250200041 Lock Washer Serrated M6
10 278002963 Safety Nut (DESS Switch)
11 293750002 Tie Wrap 142 mm
12 515177022 LH Housing
12a 515176088 Start/RER Button
13 XXX Not Available As Spare Parts
16 293750008 Tie Wrap 368 mm
20 XXX Not Available As Spare Parts
23 XXX Not Available As Spare Parts
24 414115200 Tie-Rap 180 mm
39 414644300 Black, Dart
40 293450275 Insert
44 XXX Not Available As Spare Parts
46 515175662 Male Terminal Housing, 6 Circuits
47 515175817 Male Terminal Housing, 8 Circuits
48 515175926 Switch Housing Plate
49 XXX Not Available As Spare Parts
50 515176364 Voltage Regulator
52 XXX Not Available As Spare Parts
53 XXX Not Available As Spare Parts
54 515176681 Lock
55 XXX Not Available As Spare Parts
56 XXX Not Available As Spare Parts
57 515178284 DESS This part replaces 515177057.
58 XXX Not Available As Spare Parts
59 XXX Not Available As Spare Parts
60 515177095 WIRING HARNESS MAIN - Call your local BRP dealership
63 XXX Not Available As Spare Parts
64 XXX Not Available As Spare Parts
65 515177249 DESS Switch
66 515177289 Ground Wire
67 515177310 Emergency Stop Switch Support
68 515177362 Emergency Stop Switch
70 515177814 Sensor Temperature This part replaces 515177472.
71 515177914 Speedometer This part replaces 515177588.
72 515177609 Steering Wiring Harness
74 518325560 Adhesive Patch
75 XXX Not Available As Spare Parts
76 XXX Not Available As Spare Parts
77 415129370 Gauge Ring
78 415129355 Speedometer Button
