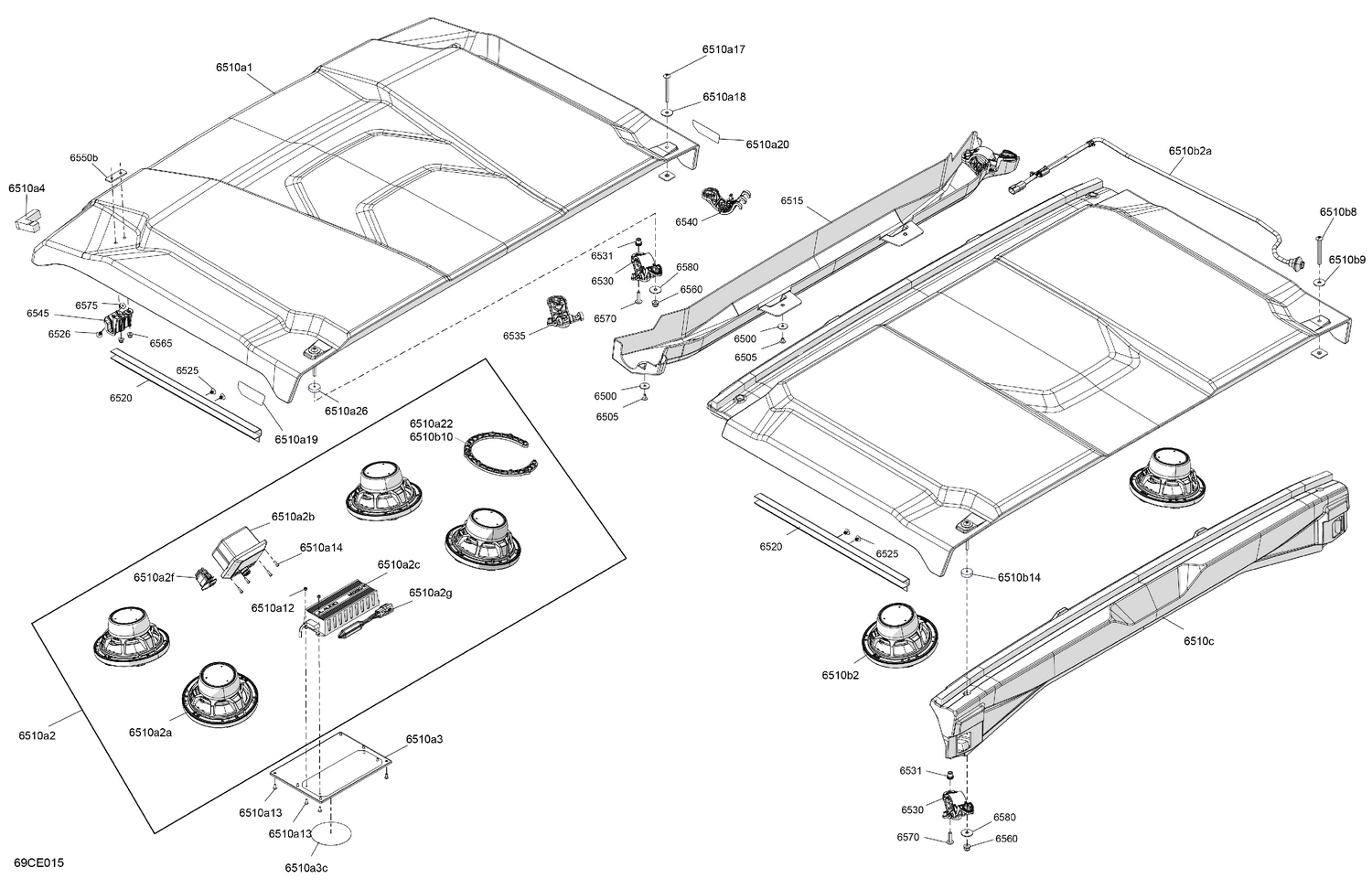

07- Body - Roof
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 6500 | 250200029 | Washer M6 |
| 6505 | 250000755 | Torx Screw M6 X 16 |
| 6510a1 | 715005206 | Audio System Kit Ur |
| 6510a12 | 232541484 | Elastic Stop Nut M4 |
| 6510a13 | 250000750 | Torx Screw M4 X 16 |
| 6510a14 | 205041254 | Socket Head Screw M4 X 12 |
| 6510a17 | 250001190 | Torx Screw M8 X 80 |
| 6510a18 | 234082670 | Stainless Steel Flat Washer |
| 6510a19 | 710008236 | JL Audio Decal |
| 6510a20 | 710008258 | JL Audio Decal |
| 6510a22 | 710008589 | Retaining Ring |
| 6510a26 | 705800967 | Rear Cut Weather Strip |
| 6510a2a | 710007790 | Loudspeaker Ass'y |
| 6510a2b | 710007792 | Bluetooth Audio System |
| 6510a2c | 710007793 | Audio Amplifier |
| 6510a2f | 710006935 | Switch |
| 6510a2g | 710007982 | LED Control Module |
| 6510a3c | 710008235 | Decal Cover JL Audio |
| 6510a4 | 708201094 | Gasket B |
| 6510b10 | 710008589 | Retaining Ring |
| 6510b14 | 705800967 | Rear Cut Weather Strip |
| 6510b2a | 710007790 | Loudspeaker Ass'y |
| 6510b8 | 250001190 | Torx Screw M8 X 80 |
| 6510b9 | 234082670 | Stainless Steel Flat Washer |
| 6510c | 715005206 | Audio System Kit Ur |
| 6515 | 705800794 | Roof Liner |
| 6520 | 705800793 | Wiring Guide |
| 6525 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 6526 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 6530 | 705016186 | A Mounting Clamp |
| 6531 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 6535 | 705016187 | LH Mounting Clamp |
| 6540 | 705016218 | RH Mounting Clamp |
| 6545 | 715007705 | Fastener Kit |
| 6550b | 705800966 | Cut Weather Strip |
| 6560 | 233281464 | Elastic Flange Nut M8 |
| 6565 | 233261466 | Hex. Flange Elastic Nut M6 |
| 6570 | 250000745 | Hex Torx Truss M8 X30 |
| 6575 | 250200025 | Washer M5 |
