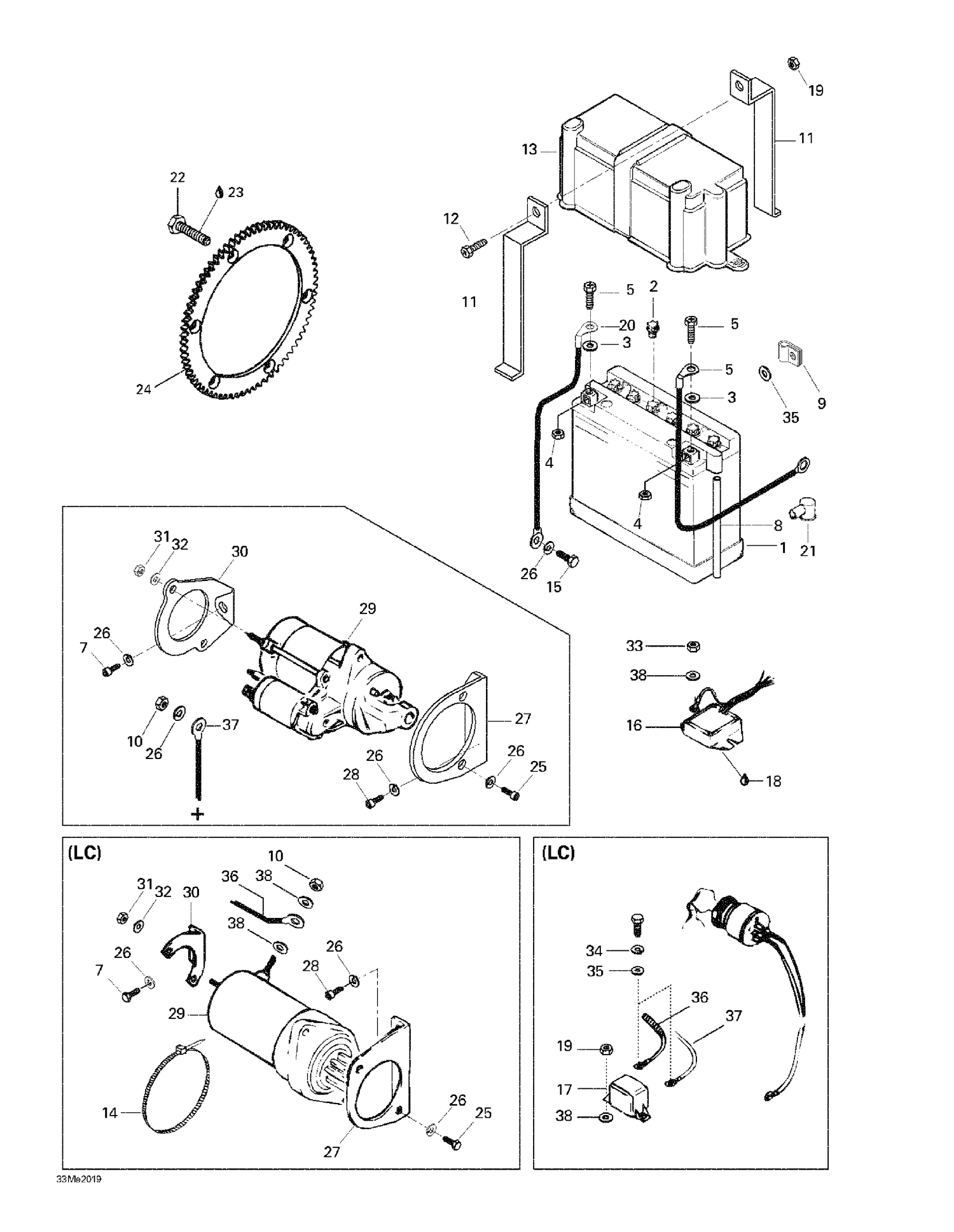

10- Electrical System (494)
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 410300800 | Battery Cap |
| 3 | 391302100 | FLAT WASHER - Call your local BRP dealership |
| 4 | 232061414 | Hex. Nut M6 |
| 5 | 207161644 | Hex. Screw M6 X 16 |
| 6 | 570022000 | Battery Cover |
| 8 | M39055 | Tube |
| 9 | M27025 | Wire Holder |
| 11 | M5442811 | Steel Strip |
| 12 | 207162544 | Hex. Screw M6 X 25 |
| 16 | 515175546 | VOLTAGE REGULATOR - Call your local BRP dealership |
| 18 | 413707500 | Grease Tube Lmz, 400 G |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 21 | 570151000 | Protection Cap |
| 22 | 236281684 | Hex. Screw M8 X 16 |
| 23 | 293800005 | Loctite 271, 10 ml |
| 24 | 415043100 | Ring Gear (86 tooth) |
| 25 | 207182044 | Hex. Screw M8 X 20 |
| 26 | 234181401 | Lock Washer 8 mm |
| 28 | 205082044 | Socket Head Screw M8 X 20 |
| 31 | 232551414 | Elastic Stop Nut M5 |
| 33 | 232561414 | Elastic Stop Nut M6 |
