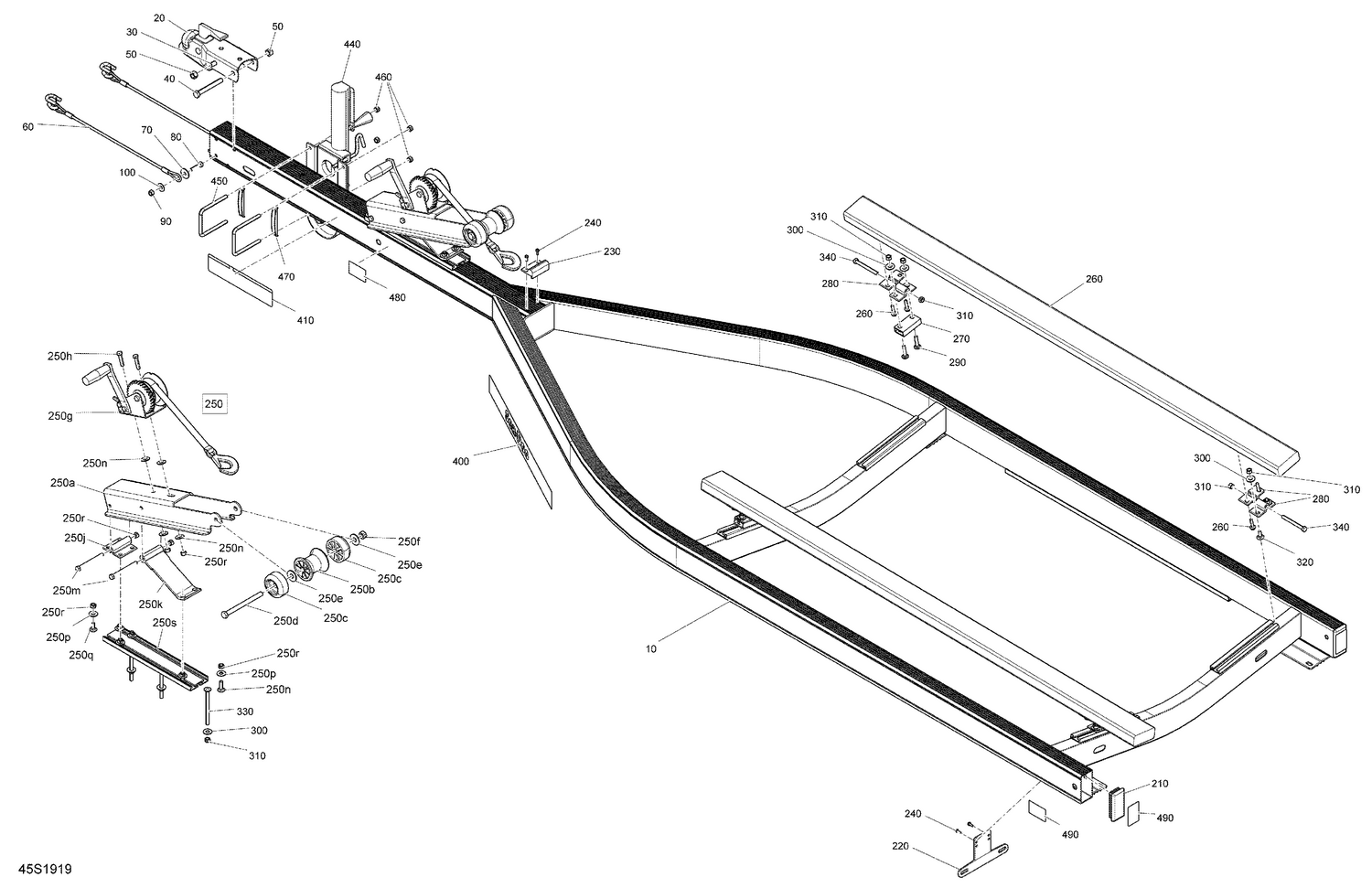

| Ref | Part Number | Description |
|---|
| 10 |
Not |
Available As Spare Part - Welded Frame Aluminum |
| 20 |
262000044 |
COUPLER - Call your local BRP dealership |
| 30 |
269800132 |
HEXAGONAL BOLT - Call your local BRP dealership This part replaces 269800402. |
| 40 |
269800401 |
HEX. BOLT 1/2''-13 X 4'' - Call your local BRP dealership |
| 50 |
269800310 |
CENTERLOCK NUT 1/2-1 - Call your local BRP dealership |
| 60 |
262000045 |
SAFETY CABLE - Call your local BRP dealership |
| 70 |
269800306 |
LARGE WASHER OD - Call your local BRP dealership |
| 80 |
269800298 |
HEXAGONAL BOLT - Call your local BRP dealership |
| 90 |
269800299 |
CENTERLOCK NUT - Call your local BRP dealership |
| 100 |
269800300 |
FLAT WASHER - Call your local BRP dealership |
| 210 |
291005158 |
END CAP - Call your local BRP dealership |
| 220 |
269800142 |
SUPPORT - Call your local BRP dealership |
| 230 |
269800173 |
KEEL PROTECTOR - Call your local BRP dealership |
| 240 |
269800136 |
SCREW - Call your local BRP dealership |
| 250 |
Not |
Available As Spare Part - Aluminum Winch Ass'y |
| 250a |
269800920 |
WINCH SUPPORT - Call your local BRP dealership |
| 250b |
269800169 |
BOW ROLLER - Call your local BRP dealership |
| 250c |
269800924 |
END CAP - Call your local BRP dealership |
| 250d |
269800921 |
HEX. BOLT 1/2''-13 X 6'' - Call your local BRP dealership |
| 250e |
269800922 |
FLAT WASHER - Call your local BRP dealership |
| 250f |
269800310 |
CENTERLOCK NUT 1/2-1 - Call your local BRP dealership |
| 250g |
269800078 |
WINCH - Call your local BRP dealership |
| 250h |
269800298 |
HEXAGONAL BOLT - Call your local BRP dealership |
| 250j |
269800927 |
MOUNTING BRACKET - Call your local BRP dealership |
| 250k |
269800926 |
ADJUSTABLE WINCH SUPPORT - Call your local BRP dealership |
| 250m |
291003301 |
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership |
| 250n |
269800923 |
CARRIAGE BOLT 3/8 - 16 X 1.25 - Call your local BRP dealership |
| 250p |
269800300 |
FLAT WASHER - Call your local BRP dealership |
| 250q |
269800899 |
CARRIAGE BOLT 3/8 - 16 X 1 - Call your local BRP dealership |
| 250r |
269800299 |
CENTERLOCK NUT - Call your local BRP dealership |
| 250s |
269800925 |
BOLT BLOCK TONGUE - Call your local BRP dealership |
| 260 |
262000287 |
BUNK ASS'Y, 72 ((WCA-1250) - Call your local BRP dealership |
| 270 |
269800896 |
SPACER BLOCKS - Call your local BRP dealership |
| 280 |
269800897 |
BUNK BRACKET 4 - Call your local BRP dealership |
| 290 |
269800898 |
CARRIAGE BOLT 3/8 - 16 X 1-3/4 - Call your local BRP dealership |
| 300 |
269800300 |
FLAT WASHER - Call your local BRP dealership |
| 310 |
269800299 |
CENTERLOCK NUT - Call your local BRP dealership |
| 320 |
269800899 |
CARRIAGE BOLT 3/8 - 16 X 1 - Call your local BRP dealership |
| 330 |
269800900 |
CARRIAGE BOLT 3/8 - 16 X 5 - Call your local BRP dealership |
| 340 |
269800314 |
HEX. BOLT 3/8''-16 X 3 1/2'' - Call your local BRP dealership |
| 400 |
219904018 |
SEA-DOO DECAL - Call your local BRP dealership This part replaces 219905016. |
| 410 |
219904010 |
WARNING DECAL - Call your local BRP dealership This part replaces 219903238. |
| 480 |
219905513 |
TAPE REFLECTOR AMBER - Call your local BRP dealership |
