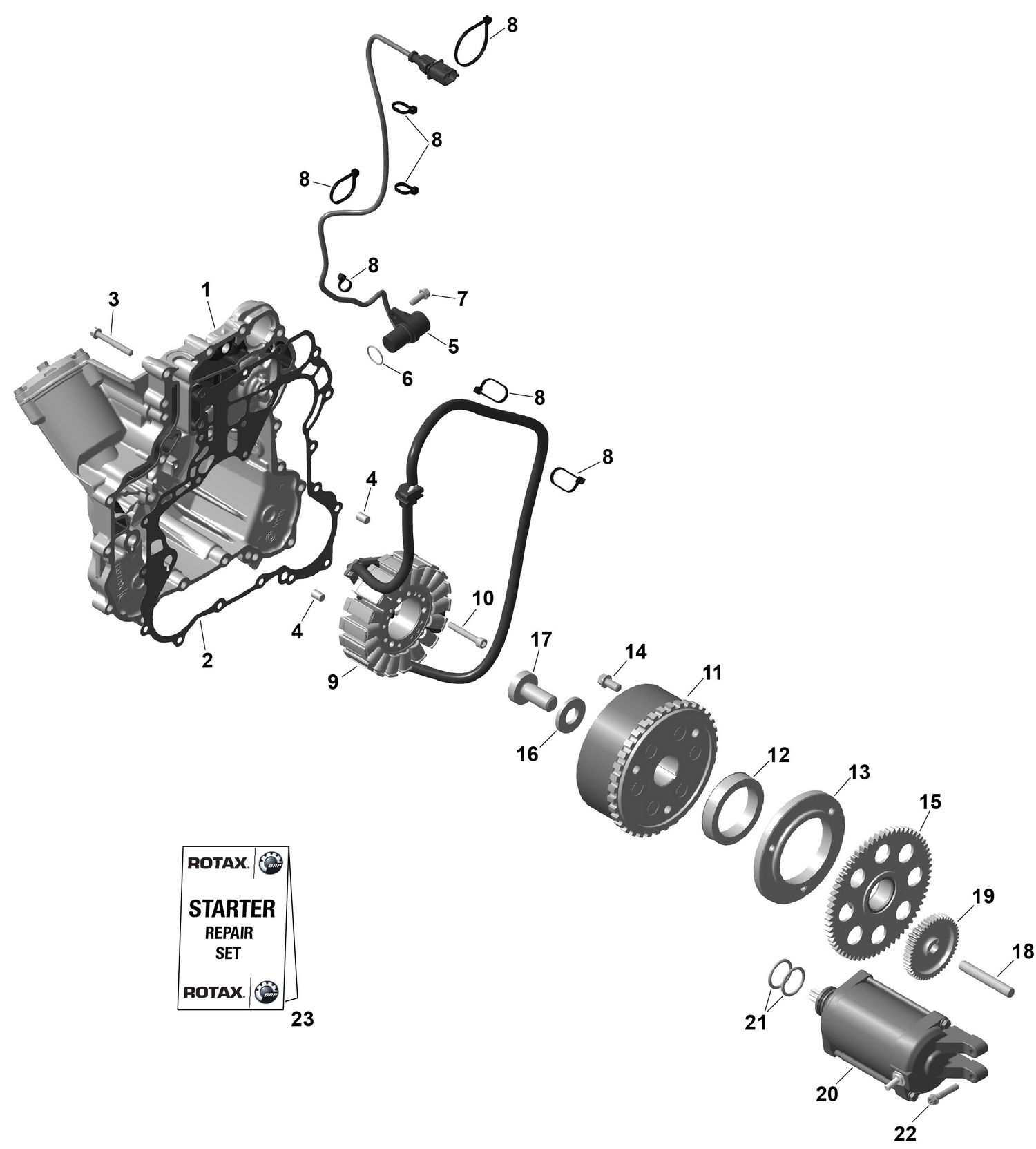

01- ROTAX - Magneto and Electric Starter
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911063 | Ignition Cover |
| 3 | 420440647 | Torx Flange Screw M6 X 30 |
| 4 | 420632014 | Center Pin 8 X 12 |
| 6 | 420431580 | O-Ring |
| 7 | 420440162 | Torx Flange Screw M6 X 16 |
| 8 | 420866722 | Tie Wrap 142X 3.2mm |
| 9 | 420685628 | Stator Ass'y 14V 650W |
| 10 | 420241956 | Allen Screw M6 X 40 |
| 11 | 420686274 | Mag. Flywheel W. Flywheel Hub Ass'y |
| 12 | 420659113 | Sprag Clutch |
| 13 | 420659263 | Sparg Clutch Housing |
| 14 | 420440854 | Torx Flange Screw M8 X 16 |
| 15 | 420434238 | Free Wheel Gear, 64 Teeth |
| 16 | 420627272 | SHIM 17/36/4 |
| 17 | 420241547 | Flat Head Screw M16 X 35 |
| 18 | 420229475 | Needle Pin |
| 19 | 420634743 | Double Gear 11/49 |
| 21 | 420250145 | O-Ring |
| 22 | 420440647 | Torx Flange Screw M6 X 30 |
