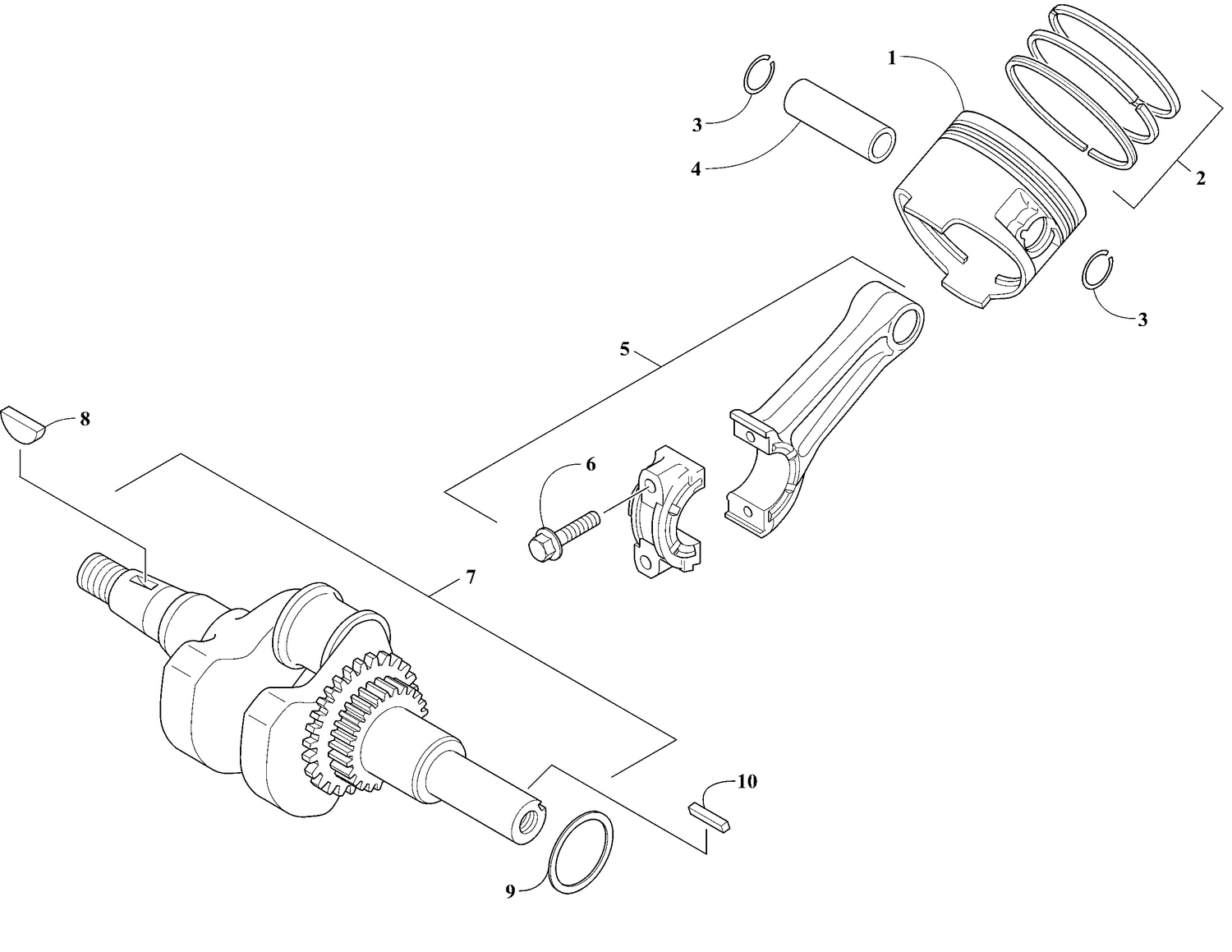

Engine - Piston and Crankshaft
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3021-722 | Piston |
| 1 | 3021-723 | Oversized Piston (0.25) Optional |
| 1 | 3021-724 | Oversized Piston (0.50) Optional |
| 2 | 3021-725 | Ring Piston Set |
| 2 | 3021-726 | Ring,Piston Oversized (0.25) Optional |
| 2 | 3021-727 | Ring,Piston Oversized (0.50) Optional |
| 3 | 3020-115 | Piston Circlip |
| 4 | 3021-728 | Piston Pin |
| 5 | 3021-720 | Connecting Rod Ass'y |
| 6 | 3020-032 | Cap Screw |
| 7 | 3021-718 | Crankshaft Ass'y |
| 8 | 3020-098 | Woodruff Key |
| 9 | 3020-030 | Shim Crankshaft T (T=0.1) |
| 9 | 3021-937 | Shim Crankshaft (T=0.2) |
| 9 | 3021-938 | Shim Crankshaft (T=0.3) |
