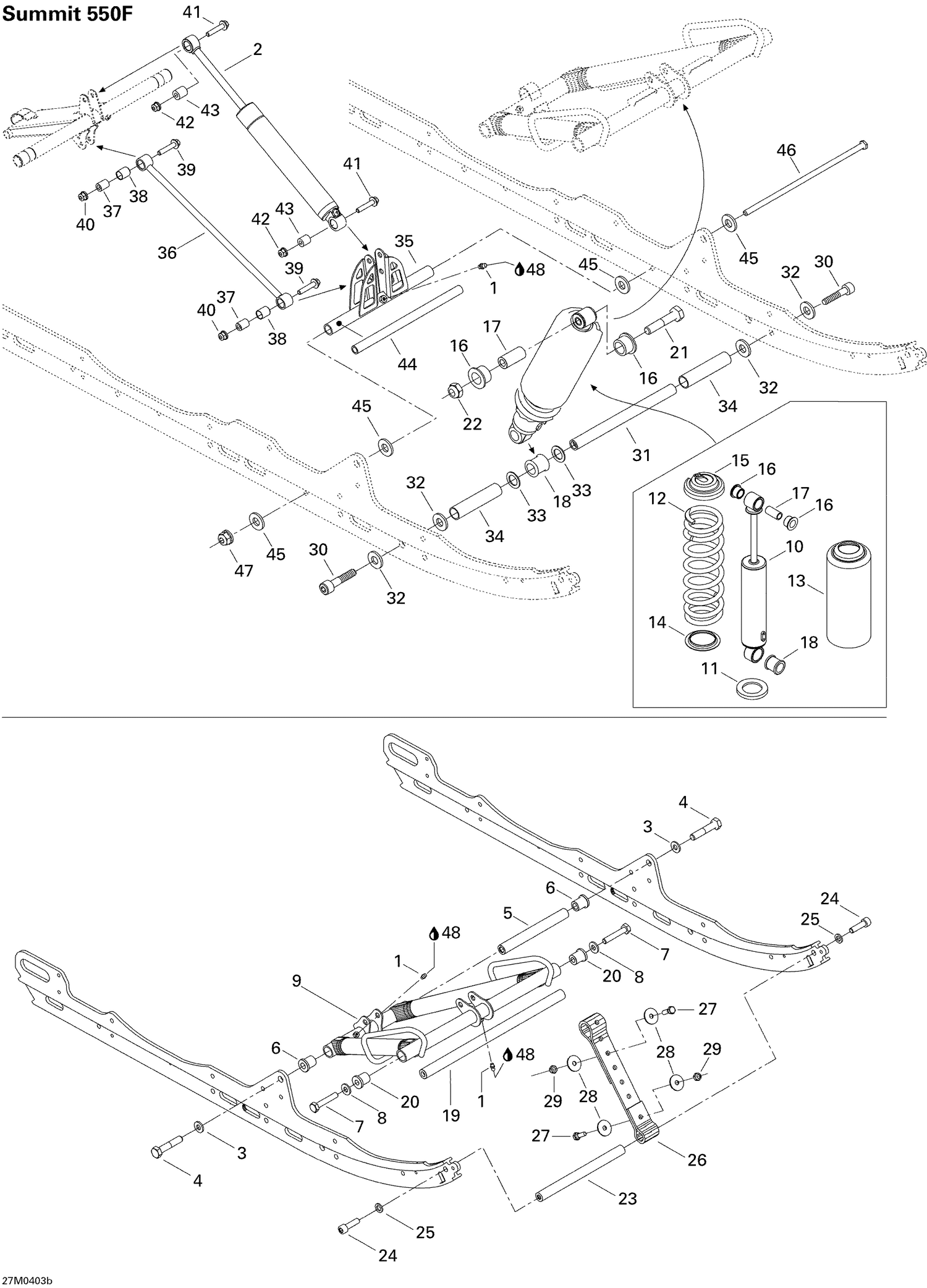

08- Front Arm SUMMIT 550F
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 408200700 | Grease Fitting |
| 2 | 503191582 | Rear Shock This part replaces 503189750. |
| 3 | 503189276 | Washer |
| 4 | 207226044 | HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 5 | 503189313 | SHAFT - Call your local BRP dealership |
| 6 | 503189323 | CUSHION - Call your local BRP dealership |
| 7 | 207205544 | Hex. Screw M10 X 55, Scotch Grip |
| 8 | 732900049 | Washer |
| 9 | 503189782 | Front Arm |
| 10 | 503189910 | Center Shock |
| 11 | 505070401 | WASHER - Call your local BRP dealership |
| 12 | 415070100 | SPRING - Call your local BRP dealership |
| 13 | 503193663 | Protector This part replaces 503188930. |
| 14 | 503187500 | Spring Guide |
| 15 | 706200881 | Spring Stopper This part replaces 503140600. |
| 16 | 503189117 | Urethane Bushing |
| 17 | 503189282 | Bushing |
| 18 | 503189271 | Bushing |
| 19 | 503190387 | SHAFT - Call your local BRP dealership |
| 20 | 503189324 | Bushing |
| 21 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 22 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 23 | 503189562 | AXLE - Call your local BRP dealership |
| 24 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 25 | 503189564 | Washer |
| 26 | 503190563 | Stopper Strap, Large |
| 27 | 207182544 | Hex. Screw M8 X 25 |
| 28 | 224081301 | Flat Washer |
| 29 | 232581414 | Hex. Elastic Stop Nut M8 |
| 30 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 31 | 503189272 | CENTER SHOCK SHAFT - Call your local BRP dealership |
| 32 | 503189276 | Washer |
| 33 | 503189273 | Washer |
| 34 | 503189274 | SPACER - Call your local BRP dealership |
| 35 | 503189545 | PIVOT ARM, BLACK - Call your local BRP dealership |
| 36 | 503189547 | THROTTLE ROD - Call your local BRP dealership |
| 37 | 503189133 | BUSHING - Call your local BRP dealership |
| 38 | 503189625 | CUSHION - Call your local BRP dealership |
| 39 | 207684044 | Hex. Flange Screw M8 X 40 |
| 40 | 250100025 | Elastic Flange Nut M8 |
| 41 | 207684044 | Hex. Flange Screw M8 X 40 |
| 42 | 250100025 | Elastic Flange Nut M8 |
| 43 | 414936000 | Bushing |
| 44 | 503189156 | Pivot Arm Axle |
| 45 | 503189157 | Washer |
| 46 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 47 | 250100025 | Elastic Flange Nut M8 |
