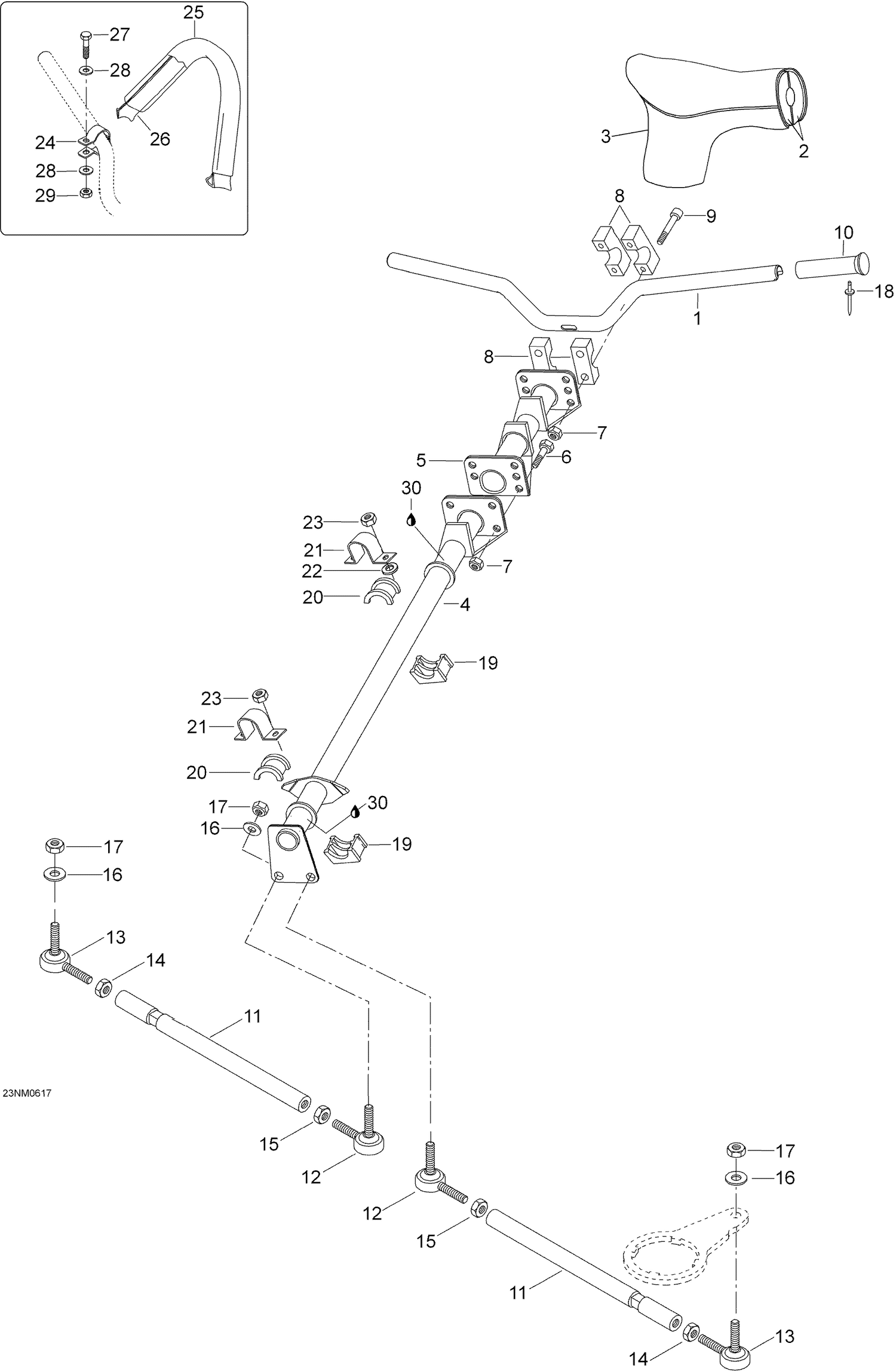

| Ref | Part Number | Description |
|---|
| 1 |
605249033 |
HANDLE BAR - Call your local BRP dealership |
| 2 |
605250305 |
Front Padding Steering |
| 2 |
605250306 |
REAR PADDING STEERING - Call your local BRP dealership |
| 3 |
605252513 |
Steering Cover |
| 4 |
M5245963 |
Main Tube |
| 5 |
605250820 |
EXTENSION WELD - Call your local BRP dealership |
| 6 |
207181644 |
Hex. Screw M8 x 16 |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
M548448 |
Support Guidon *Support-Steer. |
| 9 |
M40286 |
Socket Head Screw M8 X 45 |
| 10 |
506152483 |
Grip This part replaces M5340464. |
| 11 |
M548983 |
Rh Tie Rod |
| 12 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 13 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 14 |
M33019 |
RH NUT - Call your local BRP dealership |
| 15 |
M33017 |
LH NUT - Call your local BRP dealership |
| 16 |
M20047 |
Lock Washer |
| 17 |
232501416 |
Elastic Flange Nut M10 This part replaces M33023. |
| 18 |
36005 |
Rivet This part replaces M36005. |
| 19 |
572064400 |
Bushing |
| 20 |
572064500 |
BUSHING - Call your local BRP dealership |
| 21 |
M5343381 |
Retaining Support |
| 22 |
M31081 |
Lock Washer |
| 23 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces M33201. |
| 24 |
506152536 |
Black Support Plate This part replaces 506151792. |
| 25 |
506152115 |
Strap Ass'y This part replaces 415090200. |
| 26 |
506152115 |
Strap Ass'y This part replaces 415095500. |
| 27 |
207162544 |
Hex. Screw M6 X 25 |
| 28 |
234061410 |
Flat Washer 6 mm |
| 29 |
232561414 |
Elastic Stop Nut M6 |
