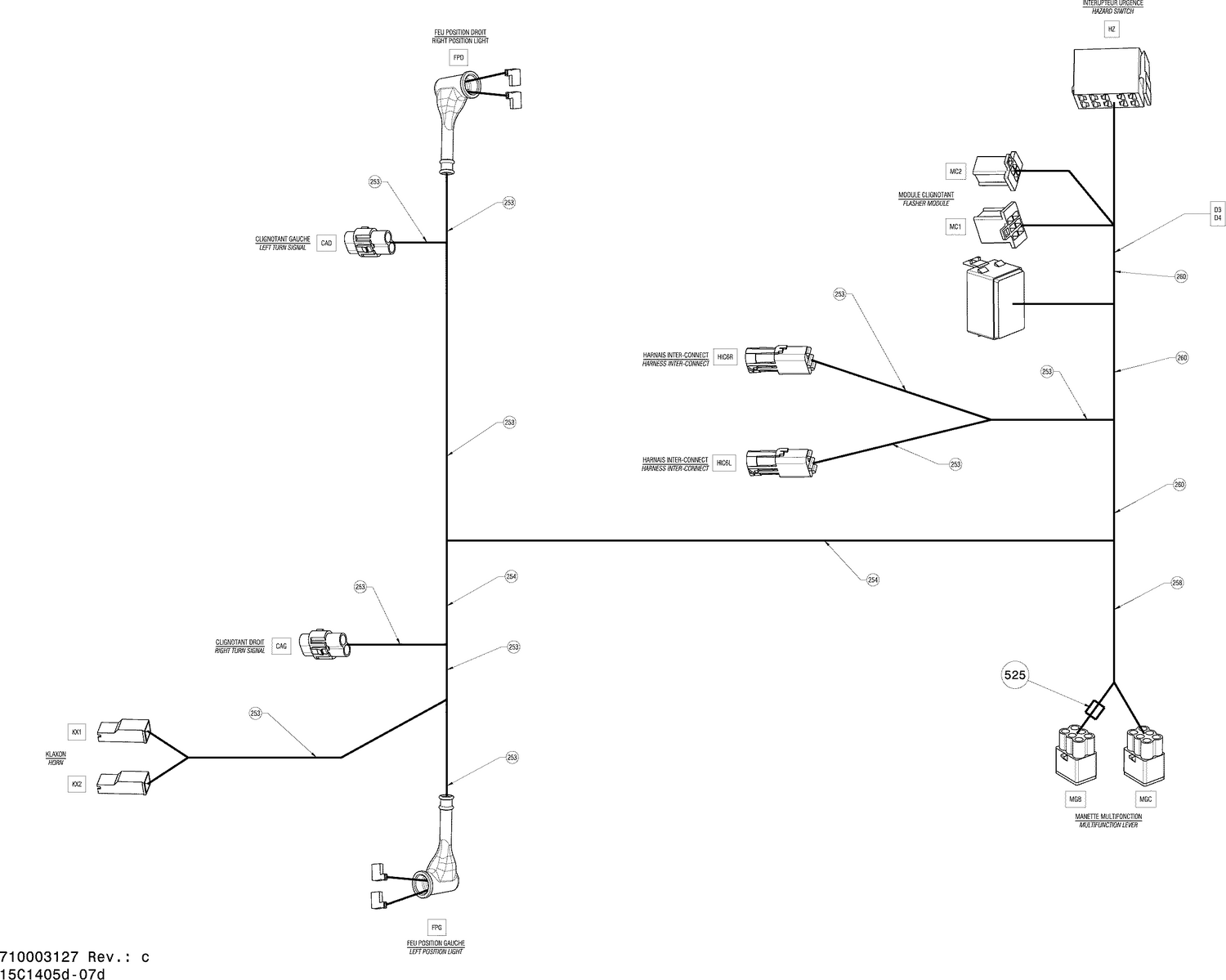

10- Electrical Harness Assy Europe_15C1405d
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| CAD | 409012100 | Female Terminal |
| CAD | 409012300 | Seal |
| CAG | 409012100 | Female Terminal |
| CAG | 409012300 | Seal |
| D3 | 409012700 | Diode |
| D4 | 409012700 | Diode |
| FPD | 409010300 | Female Terminal |
| FPG | 409010300 | Female Terminal |
| HIC6L | 278000217 | Female Housing, 2 Circuits |
| HIC6L | 278000222 | Male Terminal |
| HIC6L | 278001065 | Wire Seal |
| HIC6L | 293650187 | Clip |
| HIC6R | 278000217 | Female Housing, 2 Circuits |
| HIC6R | 278000222 | Male Terminal |
| HIC6R | 278001065 | Wire Seal |
| HIC6R | 293650187 | Clip |
| HZ | 710001931 | Terminal |
| HZ | 710002000 | Housing |
| KX1 | 219704448 | SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| KX1 | 409010100 | Female Terminal |
| KX1 | 409010400 | Female Terminal Housing, 1 Circuit |
| KX2 | 219704448 | SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| KX2 | 409010100 | Female Terminal |
| KX2 | 409010400 | Female Terminal Housing, 1 Circuit |
| MC1 | 710002314 | Housing |
| MC1 | 710002315 | Terminal |
| MC2 | 710002313 | Housing |
| MC2 | 710002315 | Terminal |
| MGB | 409012100 | Female Terminal |
| MGB | 409012300 | Seal |
| MGB | 710000080 | Cap |
| MGB | 710000081 | Female Housing, 6 Circuits |
| MGC | 409012300 | Seal |
| MGC | 710000080 | Cap |
| MGC | 710000081 | Female Housing, 6 Circuits |
| 253 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 254 | 219704399 | Was 409901700 Tubing (9 mm) |
| 258 | 219704407 | Tubing 10 MM 1000MM Long |
| 260 | 219704423 | Was 515175319 Tubing 22 mm |
| 525 | 710000482 | SHRINK TUBING - Call your local BRP dealership |
