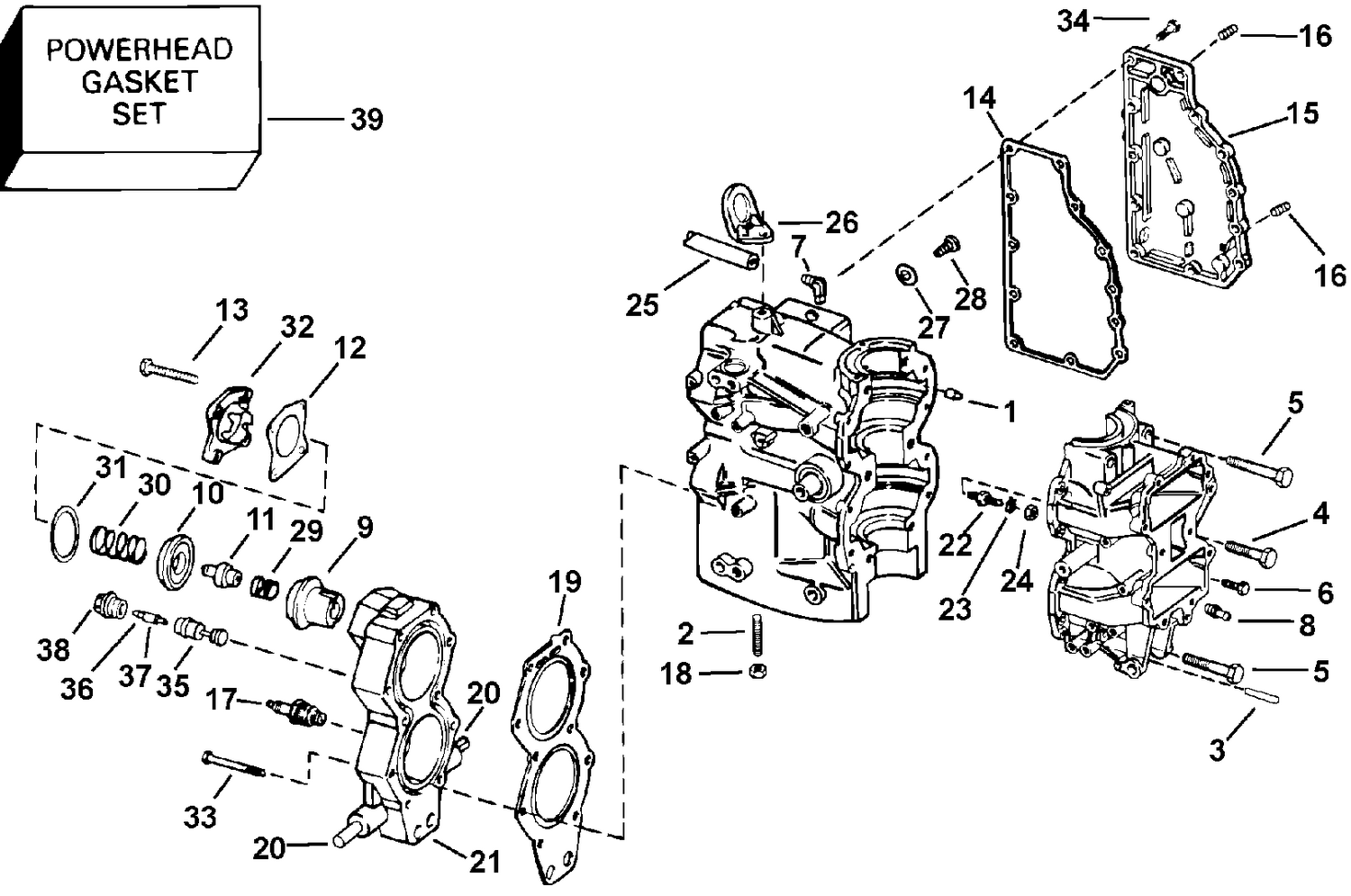

CYLINDER & CRANKCASE
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 0435957 | DIAPHRAGM |
| 11 | 0436195 | ENSEMBLE THERMOSTAT |
| 12 | 0329830 | GASKET, Cover |
| 13 | 0306049 | SCREW |
| 14 | 0325211 | GASKET |
| 15 | 0437506 | COVER & PLUG Assy, Water passage |
| 17 | 0437929 | BOUGIE, Champion, QL78YC |
| 18 | 0316355 | BUT, Carburetor mounting |
| 19 | 0335359 | GASKET, Cylinder head |
| 21 | 0339540 | CYLINDER HEAD |
| 26 | 0326023 | LIFT BRACKET |
| 30 | 0343115 | SPRING |
| 32 | 0343141 | COVER, Thermostat |
| 33 | 0322323 | SCREW |
| 34 | 0302288 | BOLT |
| 35 | 0584589 | TEMPERATURE SWITCH |
| 0437341 | ENSEMBLE | CYLINDRE & CARTER-MOTEUR 0437341 |
