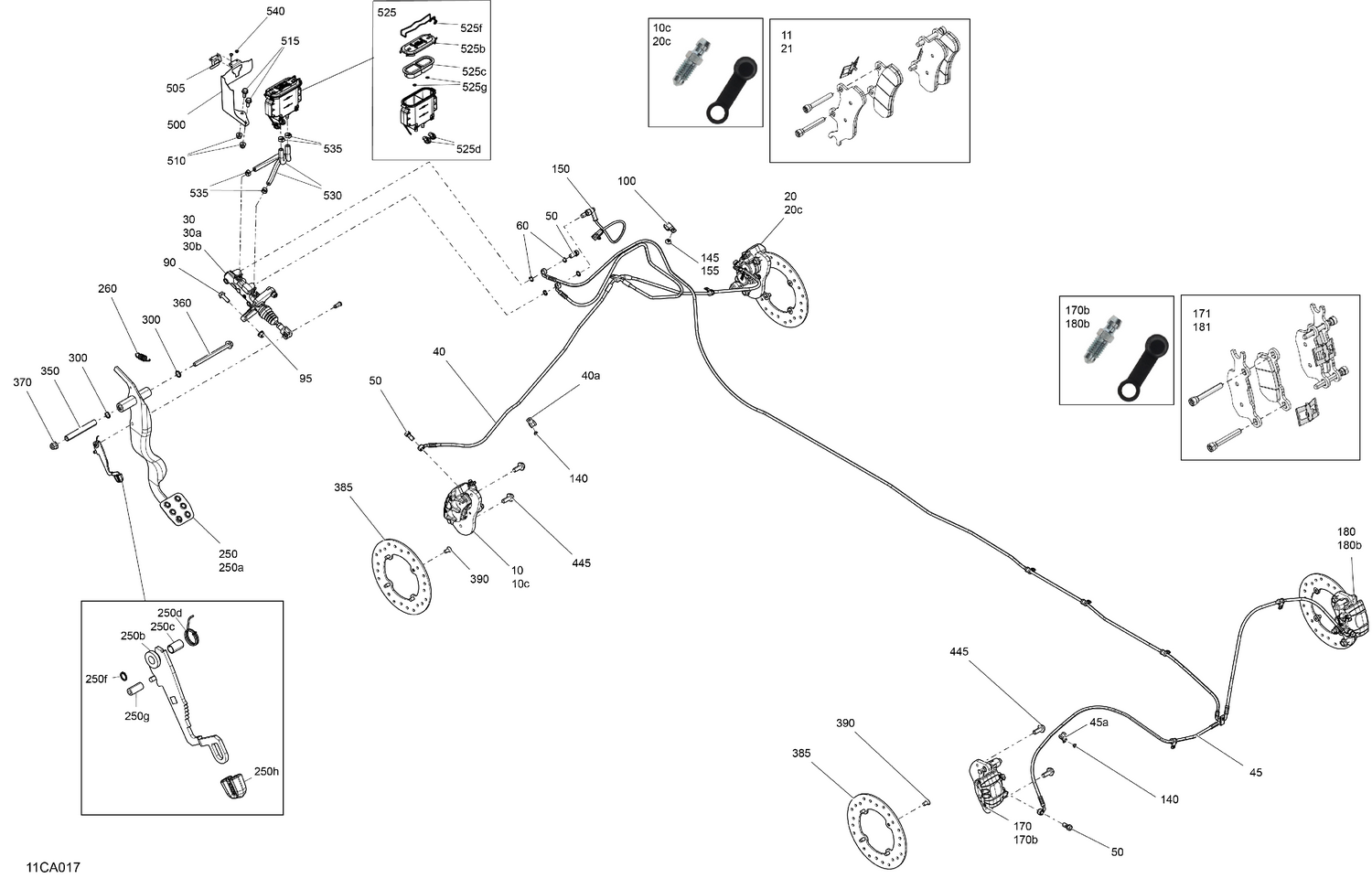

03- Mechanic - Brakes
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 10c | 705601017 | Bleeding Screw |
| 11 | 703501198 | LH/RH Front Brake Pad Set |
| 20c | 705601017 | Bleeding Screw |
| 21 | 703501198 | LH/RH Front Brake Pad Set |
| 30a | 715900373 | Boot Rod Kit |
| 30b | 715900374 | Fork Kit |
| 40a | 293650256 | Clamp |
| 45a | 293650256 | Clamp |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 90 | 207682534 | Hex. Flange Screw M8 X 25 |
| 95 | 233281416 | Hex. Elastic Flange Nut M8 |
| 100 | 515175507 | Open Clamp |
| 140 | 390402200 | Pop Rivet 3/16" |
| 145 | 293150104 | Pop Rivet 3/16" |
| 150 | 705601250 | Brake Switch |
| 155 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 170b | 705601017 | Bleeding Screw |
| 171 | 703501200 | Rear Brake Pad Set |
| 180b | 705601017 | Bleeding Screw |
| 181 | 703501200 | Rear Brake Pad Set |
| 250a | XXX | Not Available As Spare Parts |
| 250b | 705601725 | Lever |
| 250c | 705601722 | Bushing |
| 250d | 705601729 | Spring |
| 250f | 705601770 | Circlip |
| 250g | 415079800 | Hose 1/4" This part replaces 709000168. |
| 250h | 708002655 | Adjustment Handle |
| 260 | 705600792 | Brake Pedal Spring |
| 300 | 293300144 | O-Ring |
| 350 | 705601373 | Inside Sleeve |
| 360 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 370 | 233201436 | Hex. Flange Elastic Nut M10 |
| 385 | 705601511 | Brake Disc |
| 390 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 445 | 207502546 | Hex. Flange Screw M10 X 25 |
| 500 | 705601567 | Support |
| 505 | 705601608 | Stopper Bracket |
| 510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 515 | 207682044 | Hex. Flange Screw M8 X 20 |
| 525b | 219800350 | Diaphragm Cover Ass'y |
| 525c | 219800350 | Diaphragm Cover Ass'y |
| 525d | 705601073 | Oil Level Sensor |
| 525f | 705601294 | Spindle Lock |
| 525g | 211100002 | Push Nut |
| 530 | 705601603 | Hose |
| 535 | 293650046 | Oetiker Clamp |
