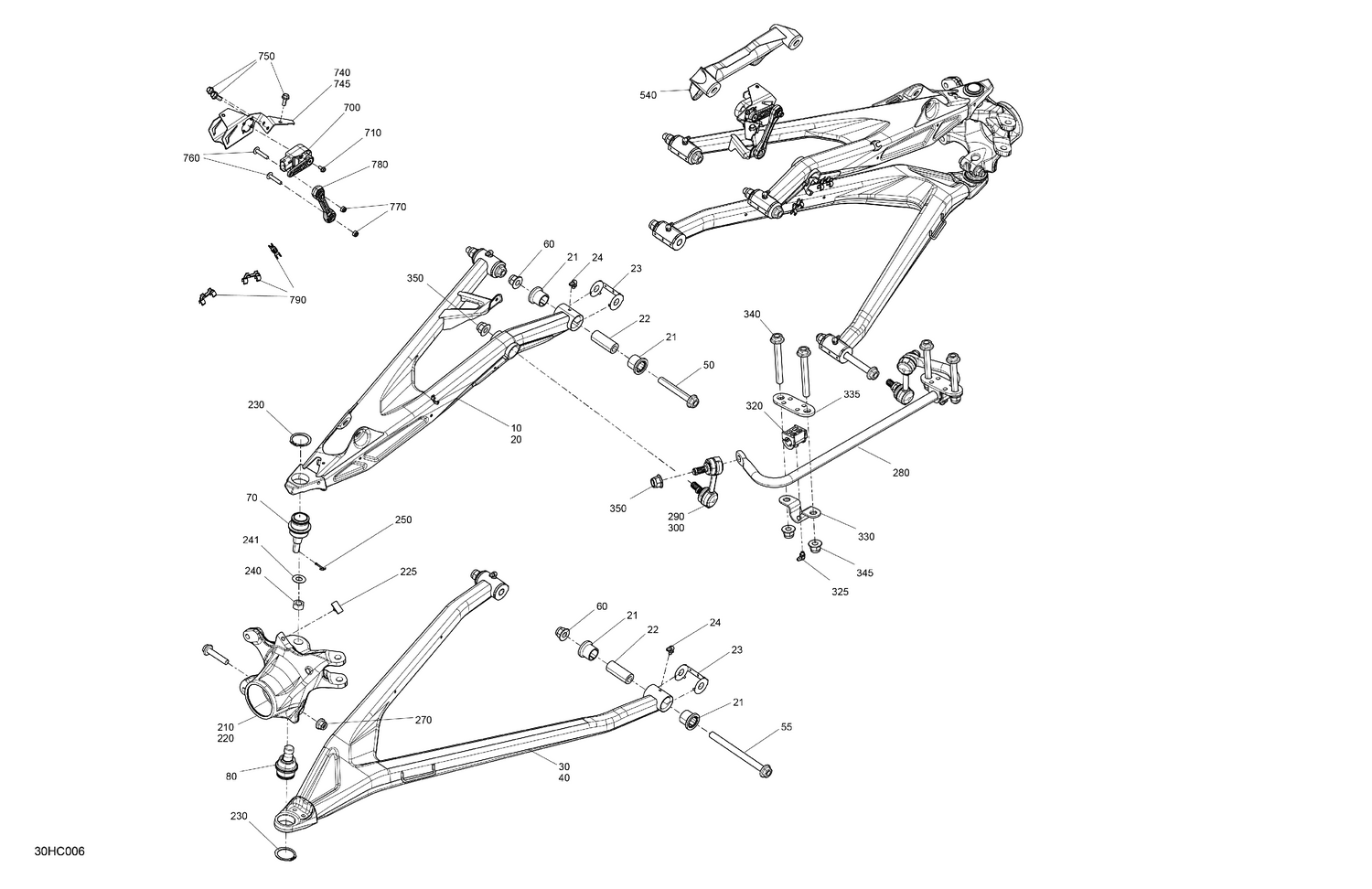

05- Suspension - Front Components
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 21 | 706204409 | Suspension Arm Bushing |
| 22 | 706202257 | Interior Bushing |
| 23 | 706202300 | Wear Plate |
| 24 | 293550056 | Grease Fitting 90° |
| 50 | 250000859 | Flange Screw M12 X 85 |
| 55 | 250000861 | Flange Screw M12 X 145 |
| 60 | 250001195 | Elastic Flange Nut M12 |
| 70 | 706203084 | Ball Joint |
| 80 | 706202045 | Ball Joint |
| 210 | 706204785 | LH Front Knuckle |
| 220 | 706204786 | RH Front Knuckle |
| 225 | 706202502 | Wear Plate |
| 230 | 293370035 | Circlip |
| 240 | 250100239 | Hex Nut M12 |
| 241 | 706200281 | Hardened Washer |
| 250 | 211400017 | Cotter Pin |
| 270 | 233201436 | Hex. Flange Elastic Nut M10 |
| 280 | 706203953 | Stabilizer Bar Ass'y |
| 290 | 706203611 | LH Stabilizer Bar Link |
| 300 | 706203612 | RH Stabilizer Bar Link |
| 320 | 706204564 | Stabilizer Bar Bushing |
| 325 | 293550056 | Grease Fitting 90° |
| 330 | 706202460 | Clamp |
| 335 | 706202551 | Support Plate |
| 340 | 250000876 | Hex. Flange Screw M12 X 95 |
| 345 | 250001195 | Elastic Flange Nut M12 |
| 350 | 250001195 | Elastic Flange Nut M12 |
| 700 | 710005235 | Suspension Position Sensor |
| 710 | 207551056 | Hex. Flange Screw M5x10 |
| 740 | 705211588 | LH Front Sensor Support This part replaces 705207578. |
| 745 | 705211589 | RH Front Sensor Support This part replaces 705207579. |
| 750 | 207661654 | Hex. Flange Screw M6 X 16 |
| 760 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 770 | 232561494 | Elastic Stop Nut M6 |
| 780 | 706203429 | Link |
