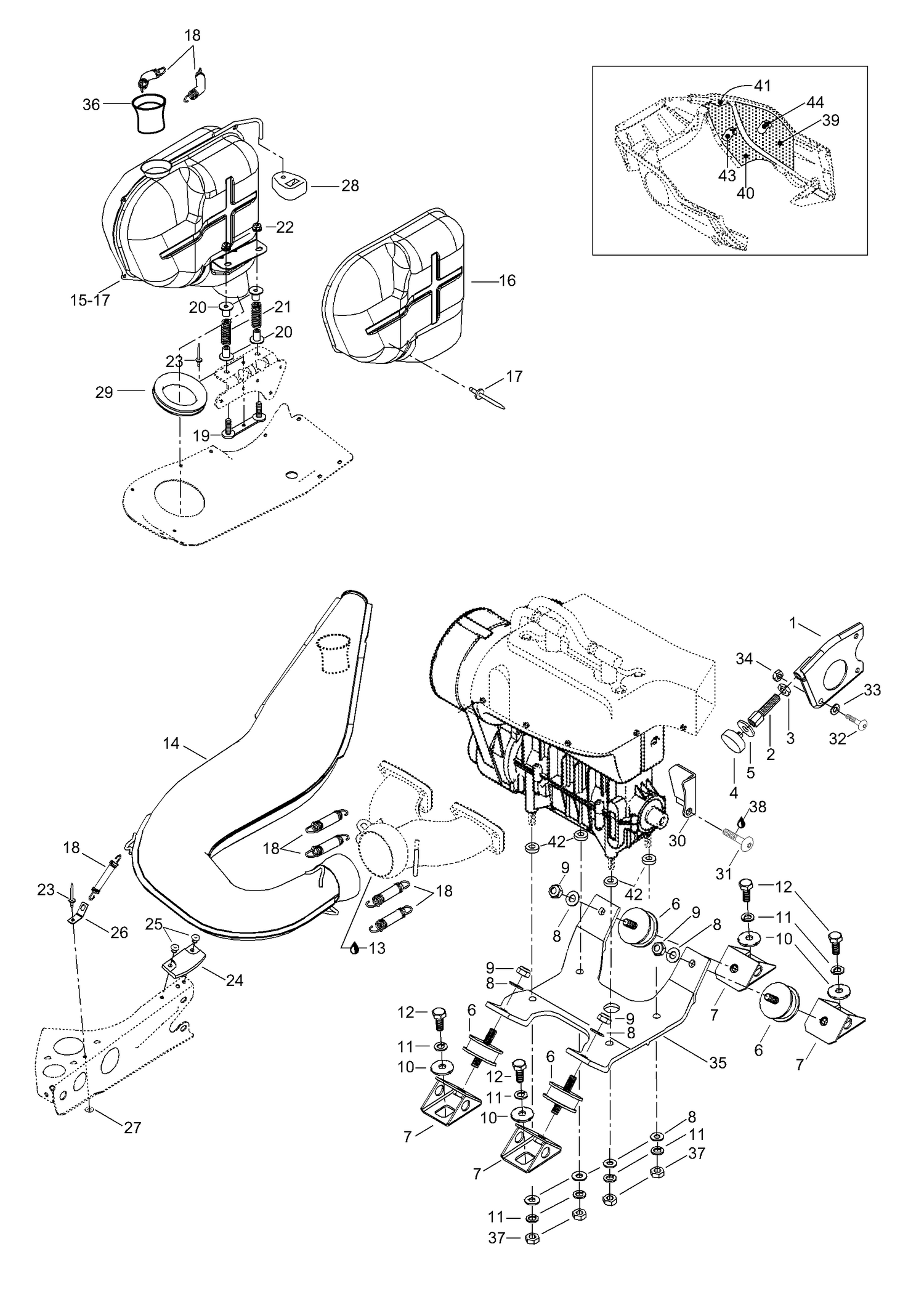

01- Engine Mount Plate/Muffler
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512059446 | Support plate |
| 2 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 3 | 33218 | Jam nut M12 |
| 4 | 512059056 | Stopper |
| 5 | 5147306 | Washer |
| 6 | 570128700 | RUBBER MOUNT - Call your local BRP dealership |
| 7 | 512050900 | Engine support |
| 8 | 20105 | Washer, hardened |
| 9 | 33082 | Nut elastic M10 |
| 10 | 512056700 | Lock washer |
| 11 | 20113 | Spring washer |
| 12 | 40040 | Screw M10x25 |
| 13 | 293800090 | Loctite 17914, 80 ml |
| 14 | 5147923 | Muffler |
| 16 | 514053389 | L.H. heat shield |
| 17 | 390910000 | Rivet |
| 18 | 415107100 | Spring |
| 19 | 5448119 | Bracket |
| 20 | 514053343 | GUIDE - Call your local BRP dealership |
| 21 | 414913700 | SPRING - Call your local BRP dealership |
| 22 | 33029 | Elastic flanged nut M8 |
| 23 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 24 | 570044100 | Rubber pad |
| 25 | 36037 | Rivet |
| 26 | 5447086 | Spring bracket |
| 27 | 20008 | Washer |
| 28 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 29 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 30 | 512059399 | Support plate |
| 31 | 40882 | Screw M8x20 |
| 32 | 40344 | Allen screw M8x25 |
| 33 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 34 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 35 | 512059397 | Engine support |
| 36 | 5447924 | Adjusting pipe |
| 37 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 38 | 293800005 | Loctite 271, 10 ml |
| 39 | 605350212 | Isolering |
| 40 | 605350211 | Isolering |
| 41 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
| 42 | 512051800 | SPACER - Call your local BRP dealership |
| 43 | Not | Available As Spare Part - Isolation - DOES NOT APPLY TO THIS MODEL |
