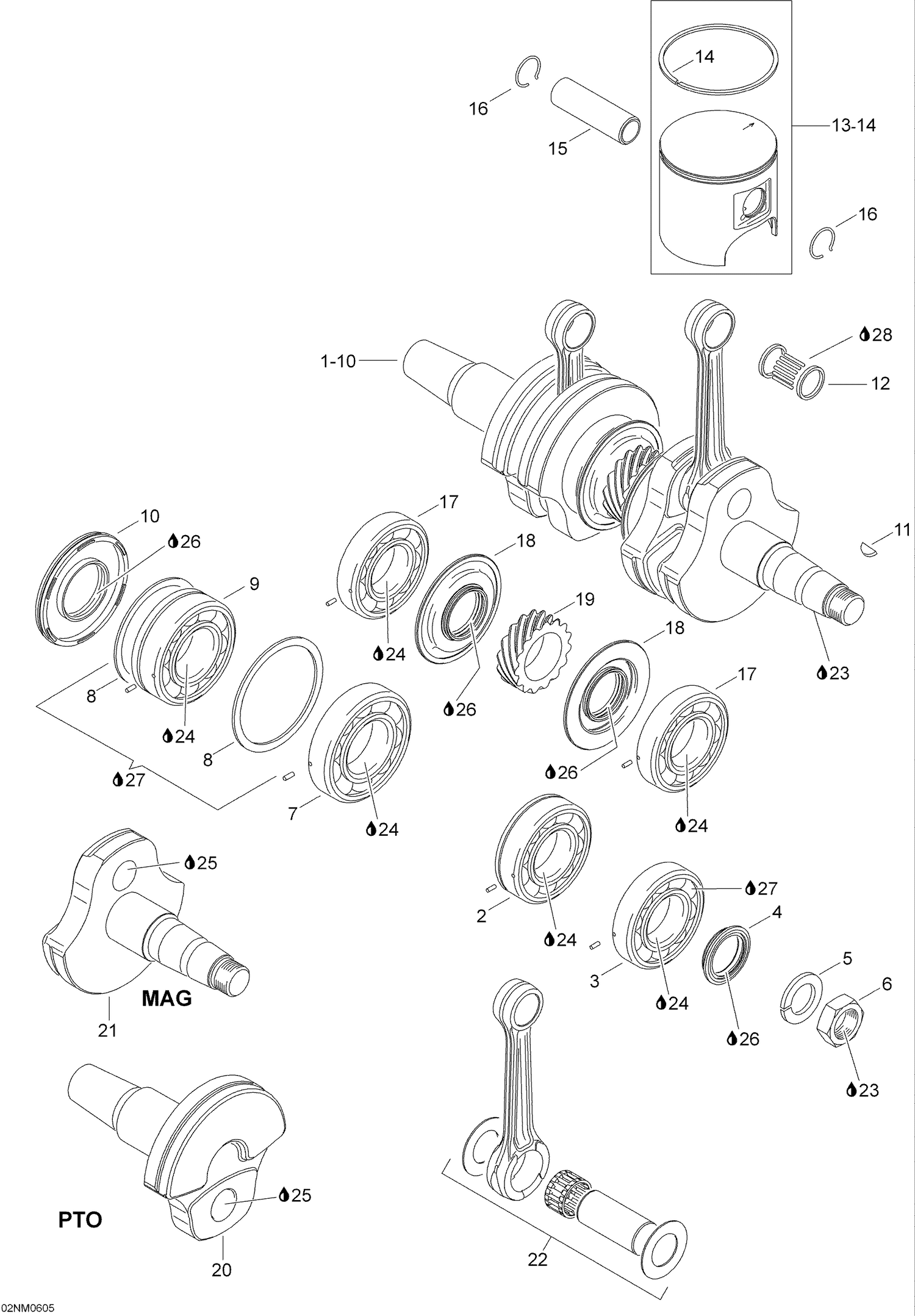

| Ref | Part Number | Description |
|---|
| 2 |
420832596 |
Laakeri 6206 koott. |
| 3 |
420832590 |
Ball bearing 6206 assy |
| 4 |
420931795 |
Oil Seal This part replaces 420931792. |
| 5 |
420945759 |
Lock Washer, 22 mm |
| 6 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 7 |
420832673 |
Ball Bearing Sealed, 6207 This part replaces 420832638. |
| 8 |
420927710 |
Justering bricka |
| 9 |
420832575 |
Ball Bearing 6207 |
| 10 |
420831952 |
Oil Seal This part replaces 420831950. |
| 11 |
420246015 |
Woodruff Key |
| 12 |
420832445 |
Needle Bearing This part replaces 420832428. |
| 14 |
420815155 |
Semi-Trapez Ring, Standard |
| 15 |
420916412 |
Piston Pin This part replaces 420916410. |
| 16 |
420845106 |
Piston Circlip |
| 17 |
420832590 |
Ball bearing 6206 assy |
| 18 |
420931940 |
Oil seal |
| 19 |
420834350 |
Central Gear, 15 Teeth |
| 20 |
420818665 |
CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664. |
| 21 |
420818697 |
Crankshaft This part replaces 420818693. |
| 22 |
420890973 |
Rod repair kit (MAG side) This part replaces 420888753. |
| 22 |
420890974 |
Rod Repair Kit, PTO Side This part replaces 420888754. |
| 23 |
293800060 |
Liima Loctite 243, 10ml |
| 24 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 25 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 26 |
420899271 |
Klueber petamo, 250gr. Chy 133 |
| 27 |
293550021 |
Isoflex Grease, 50 G, Topas Nb52 |
