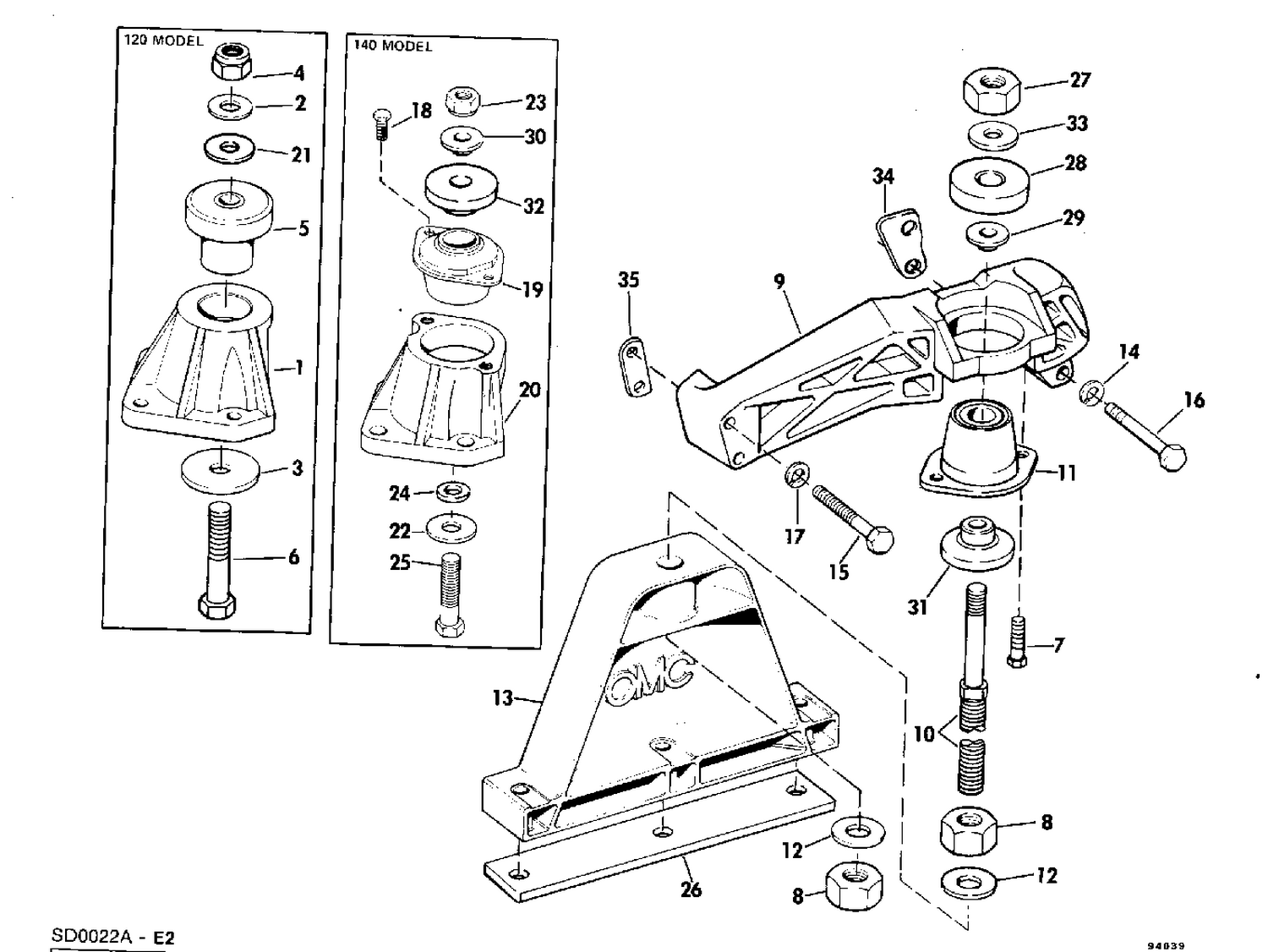

| Ref | Part Number | Description |
|---|
| 1 |
0910061 |
BRACKET, Mount stringer |
| 2 |
0907838 |
BRACKET, Rear |
| 3 |
3852428 |
WASHER, Lower This part replaces 0907857. |
| 4 |
0907858 |
LOCKNUT, Mount screw |
| 5 |
0979722 |
RUBBER MOUNT |
| 6 |
0317573 |
SCREW |
| 7 |
3852474 |
SCREW, Mount to bracket This part replaces 0909682. |
| 8 |
3852436 |
NUT This part replaces 0908233. |
| 9 |
0909052 |
BRACKET, Engine front |
| 10 |
0981739 |
RUBBER MOUNT ASSY |
| 11 |
0981739 |
RUBBER MOUNT ASSY |
| 12 |
3853789 |
ECCENTRIC, Fuel pump, inner This part replaces 0980809. |
| 13 |
0981551 |
ADAPTER HSG & STD ASSY |
| 13 |
3852000 |
WASHER, Mount This part replaces 0103960. |
| 14 |
0303269 |
L'WASHER, Upper |
| 15 |
0306837 |
SCREW Bracket |
| 16 |
0910087 |
SCREW, Bracket to engine port |
| 17 |
0120177 |
L'WASHER, Alternator to brkt |
| 18 |
3852474 |
SCREW, Mount to bracket This part replaces 0909682. |
| 19 |
3853789 |
ECCENTRIC, Fuel pump, inner This part replaces 0980809. |
| 20 |
0909713 |
BRACKET, Mount stringer |
| 21 |
0909633 |
WASHER |
| 22 |
3853788 |
REBOUND WASHER ASSY. This part replaces 0980808. |
| 23 |
0313650 |
NUT |
| 24 |
0909944 |
SPACE, Mount lower |
| 25 |
0316913 |
SCREW |
| 26 |
0908830 |
PAD |
| 27 |
0313650 |
NUT |
| 28 |
3853788 |
REBOUND WASHER ASSY. This part replaces 0980808. |
| 29 |
0909944 |
SPACE, Mount lower |
| 30 |
0909684 |
WASHER |
| 31 |
0909683 |
SPACER MOUNT |
| 32 |
0909683 |
SPACER MOUNT |
| 33 |
3852422 |
WASHER, Upper This part replaces 0907826. |
| 34 |
0910085 |
PLATE, Backup, front mount port |
