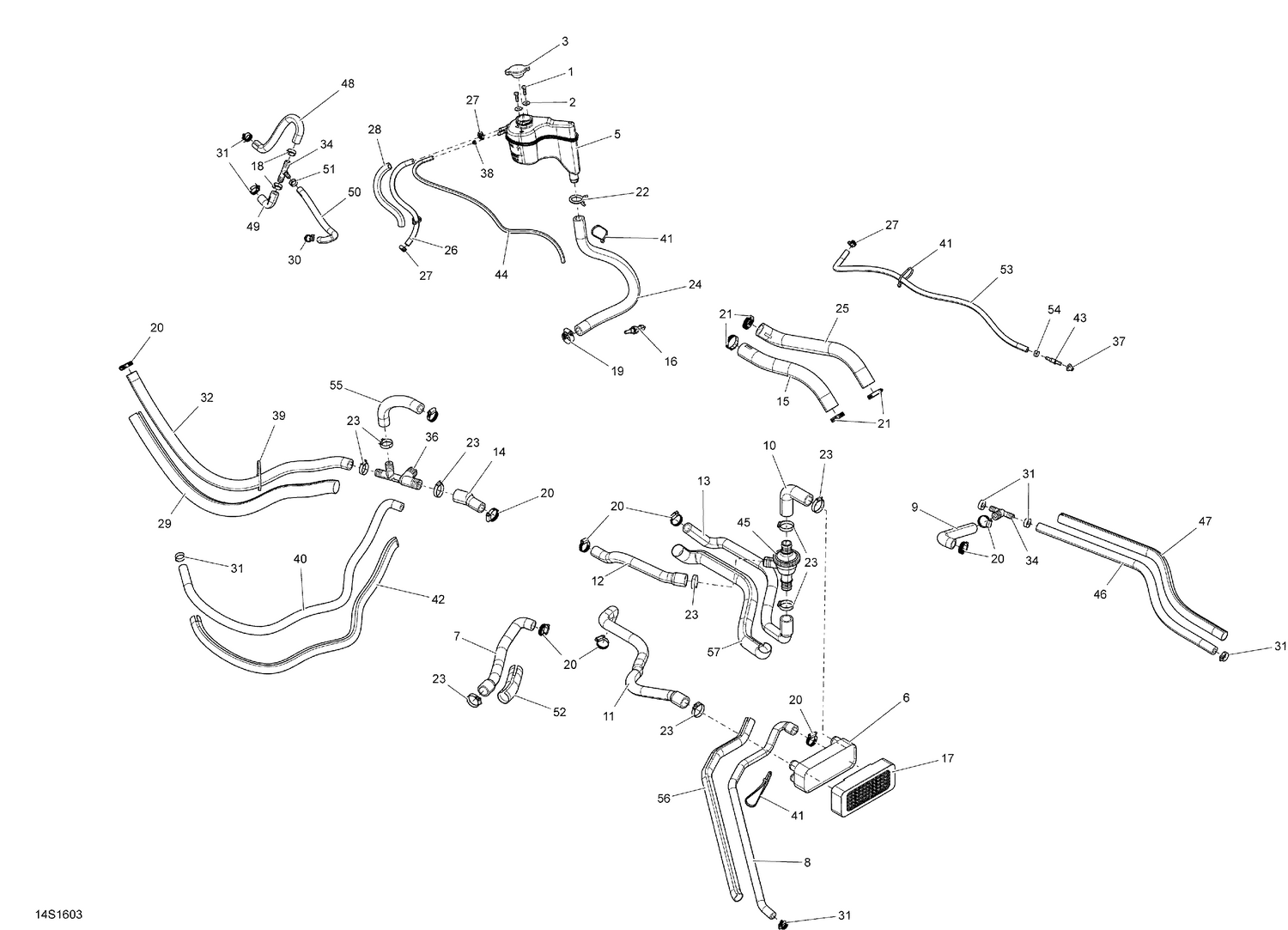

01- Cooling System - 300
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 2 | 234062600 | Flat Washer M6, Stainless |
| 3 | 276000100 | Pressure Cap |
| 5 | 276000265 | Coolant Tank |
| 6 | 276000336 | COOLER - Call your local BRP dealership |
| 7 | 276000495 | Hose-Formed This part replaces 276000357. |
| 8 | 276000360 | HOSE-FORMED - Call your local BRP dealership |
| 9 | 276000361 | HOSE-FORMED - Call your local BRP dealership |
| 10 | 276000362 | Hose |
| 11 | 276000499 | Hose This part replaces 276000363. |
| 12 | 276000500 | Hose This part replaces 276000366. |
| 13 | 276000501 | Hose This part replaces 276000367. |
| 14 | 276000376 | HOSE-FORMED - Call your local BRP dealership |
| 15 | 276000241 | Radiator Hose |
| 16 | 278002895 | Temperature Sensor |
| 17 | 278003329 | Cooler Pad |
| 18 | 293650012 | Oetiker Clamp |
| 19 | 293650019 | Tridon Gear Clamp |
| 20 | 293650051 | Tridon Gear Clamp |
| 21 | 293650185 | Tridon Gear Clamp |
| 22 | 293650115 | Spring Clamp |
| 23 | 293650142 | Hose Clamp |
| 24 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 25 | 276000491 | Radiator Hose This part replaces 276000240. |
| 26 | 219704362 | Was 276000394 Hose 6.4 mm |
| 27 | 293650170 | Tridon Gear Clamp |
| 28 | 219704400 | Was 409901800 Tubing (13 mm) |
| 29 | 219704402 | Tubing 25 MM 1000MM Long |
| 30 | 293650171 | Tridon Gear Clamp |
| 31 | 293650172 | Tridon Gear Clamp |
| 32 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 34 | 293710116 | T-Fitting |
| 36 | 293710153 | Fitting-T |
| 37 | 293720029 | Grommet |
| 38 | 293750001 | Tie Wrap 94 mm |
| 39 | 293750008 | Tie Wrap 368 mm |
| 40 | 219704394 | Was 276000001 Hose 12.5 mm |
| 41 | 414115200 | Tie-Rap 180 mm |
| 42 | 219704423 | Was 515175319 Tubing 22 mm |
| 43 | 414518500 | Male Connector |
| 44 | 219704410 | Polyurethane Hose 10000Mm Long |
| 45 | 709200406 | Thermostat |
| 46 | 219704394 | Was 276000001 Hose 12.5 mm |
| 47 | 219704423 | Was 515175319 Tubing 22 mm |
| 48 | 276000484 | Hose, Bypass Upper This part replaces 276000244. |
| 49 | 276000455 | Hose, Bypass Lower This part replaces 276000245. |
| 50 | 276000246 | Formed Hose |
| 51 | 293650030 | Oetiker Clamp |
| 52 | 219704402 | Tubing 25 MM 1000MM Long |
| 53 | 219704362 | Was 276000394 Hose 6.4 mm |
| 54 | 293650025 | Oetiker Gear Clamp |
| 55 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 56 | 219704423 | Was 515175319 Tubing 22 mm |
| 57 | 219704402 | Tubing 25 MM 1000MM Long |
