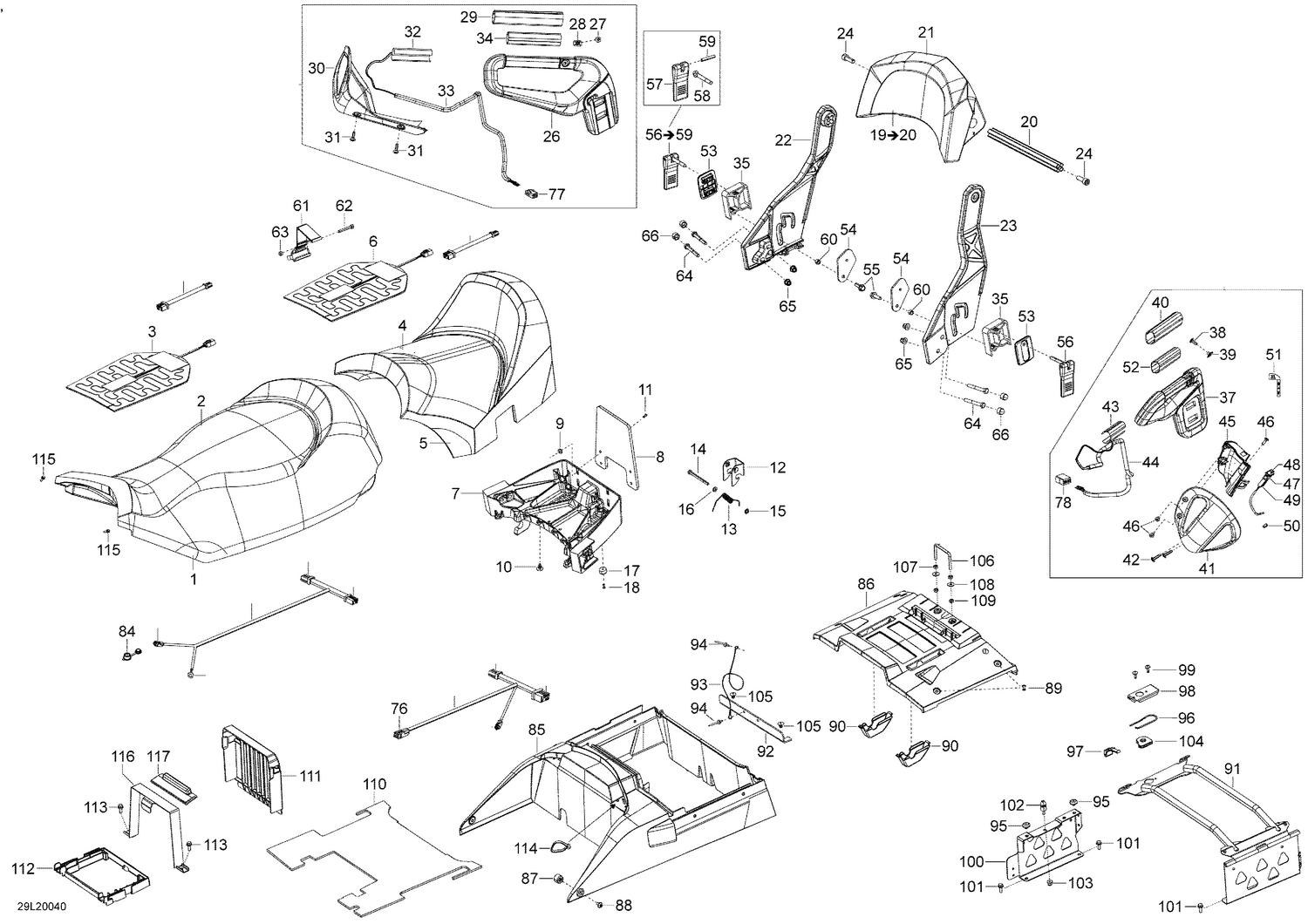

09- Seat - Main Section - Standard
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510006315 | Front Seat Foam |
| 3 | 515178222 | Heated Film |
| 85 | 510006243 | Storage Box |
| 86 | 510006244 | Storage Box Cover |
| 87 | 510005147 | Bushing |
| 88 | 250000675 | Torx Truss Screw M6 x 12 |
| 89 | 293150104 | Pop Rivet 3/16 |
| 90 | 510004999 | Cover |
| 91 | 510005714 | Lock tube |
| 92 | 510005156 | Cable Support Plate |
| 93 | 293750070 | Seat Retainer Cable |
| 94 | 293150163 | Rivet Hucklok |
| 95 | 605452114 | Plug |
| 96 | 269700017 | Latch Spring |
| 97 | 510005072 | Puller |
| 98 | 510005698 | Lock Pin Cover |
| 99 | 250000676 | Forming Screw M5 x 16 |
| 100 | 510005845 | Locking Plate |
| 101 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 102 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 103 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 104 | 510005044 | Lock Pin Guide |
| 105 | 250000675 | Torx Truss Screw M6 x 12 |
| 106 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 107 | 250000135 | Hex. Nut M6 |
| 108 | 20117 | Washer |
| 109 | 232561414 | Elastic Stop Nut M6 |
| 110 | 510005043 | Foam |
| 111 | 510005079 | Battery Cover |
| 112 | 515176804 | Battery Support |
| 113 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 114 | 605627000 | Tie-Rap |
| 115 | 250000676 | Forming Screw M5 x 16 |
| 116 | 510005143 | Battery Strap |
