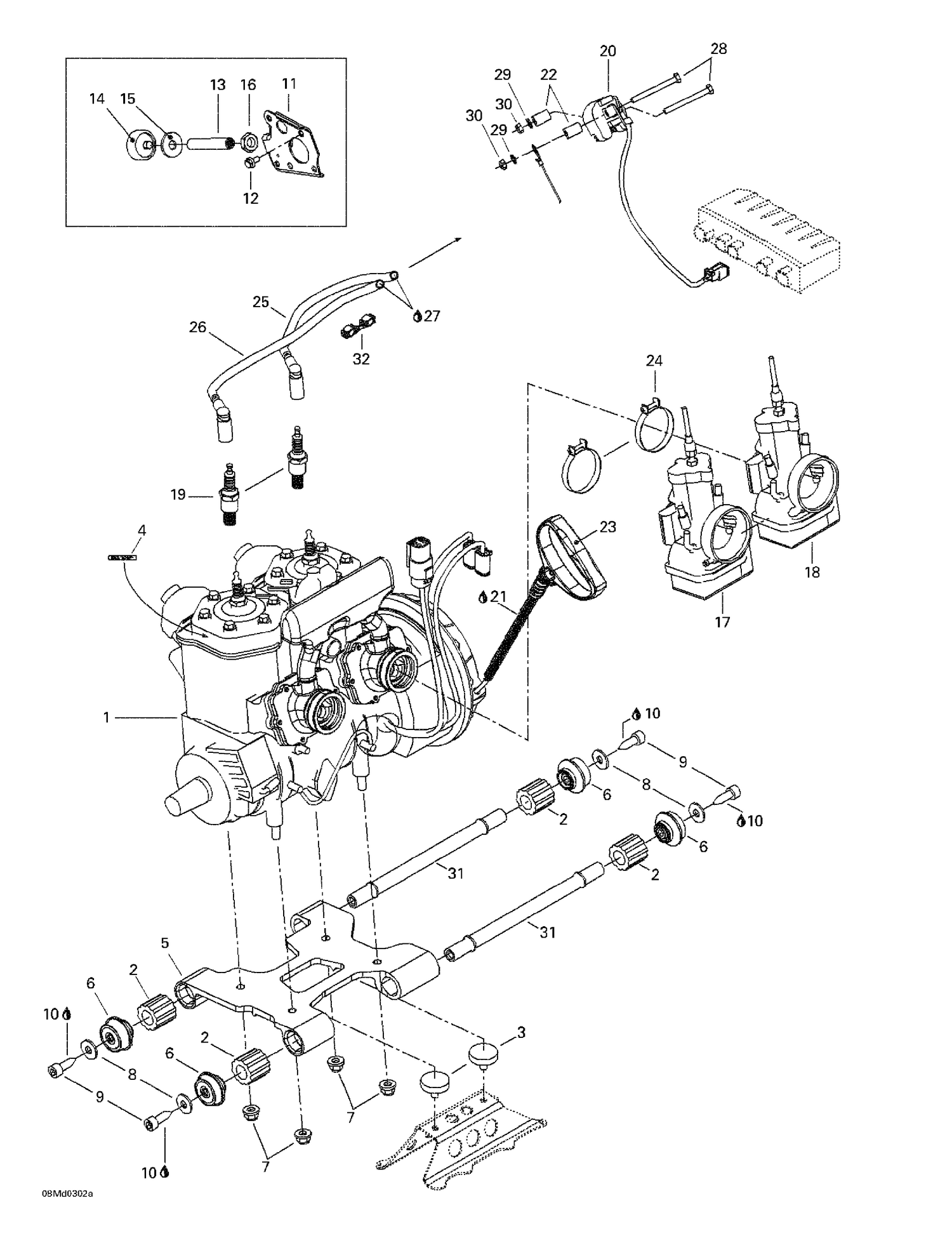

| Ref | Part Number | Description |
|---|
| 1 |
400409419 |
Moteur «453» |
| 2 |
512059781 |
Rubber Damper |
| 3 |
512059738 |
Stopper |
| 4 |
516000986 |
Spark Plug Decal |
| 5 |
512059754 |
Engine Support |
| 6 |
512059777 |
RUBBER MOUNT - Call your local BRP dealership |
| 7 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 8 |
250200014 |
Flat Washer M10 This part replaces 506151251. |
| 9 |
250000131 |
Nylon Socket Screw M10 X 50 |
| 10 |
413703400 |
Sealant LOCTITE 222MS - Call your local BRP dealership |
| 11 |
512059747 |
Plate |
| 12 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 13 |
250500007 |
STOPPER SCREW - Call your local BRP dealership |
| 14 |
512059741 |
STOPPER - Call your local BRP dealership |
| 15 |
512059775 |
WASHER - Call your local BRP dealership |
| 16 |
232170411 |
Hex. Jam Nut M14 |
| 17 |
403138737 |
Carburetor kit TMX-34-32 PTO |
| 18 |
403138738 |
Carburetor kit TMX-34 MAG |
| 18 |
512059835 |
Gemi Clamp This part replaces 512059305. |
| 19 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 20 |
512059564 |
IGNITION COIL - Call your local BRP dealership |
| 21 |
779123 |
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200. |
| 22 |
517203200 |
Spacer |
| 23 |
572084400 |
Starter Grip |
| 24 |
512059834 |
Gemi Clamp This part replaces 512059403. |
| 25 |
512059695 |
CABLE ASSY, 300 MM - Call your local BRP dealership |
| 26 |
512059696 |
Cable Ass’y, 375 mm |
| 27 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 28 |
207066044 |
Hex. Screw M6 X 60 |
| 29 |
234061410 |
Flat Washer 6 mm |
| 30 |
232561414 |
Elastic Stop Nut M6 |
| 31 |
512059776 |
THREADED ROD - Call your local BRP dealership |
