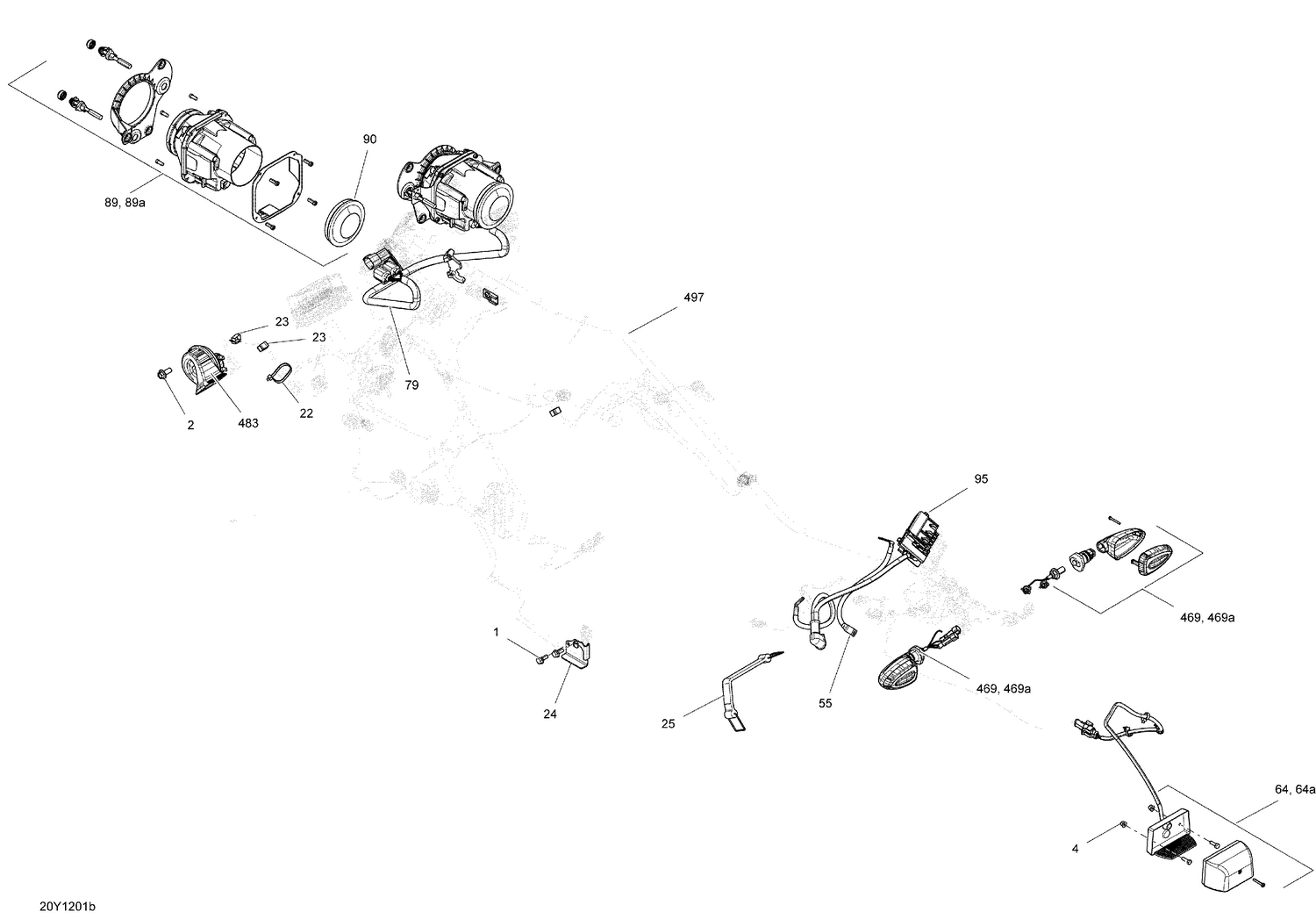

| Ref | Part Number | Description |
|---|
| 1 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 4 |
233251494 |
Elastic Flange Nut M5 |
| 22 |
414115200 |
Tie-Rap 180 mm |
| 23 |
414227300 |
Clip |
| 24 |
420251565 |
REVERSE CABLE SUPPORT - Call your local BRP dealership |
| 25 |
515176044 |
Battery Strap |
| 55 |
710000830 |
Battery/Frame Ground Cable Ass'y |
| 64 |
710001994 |
Licence Light |
| 64a |
415129261 |
Bulb 12V 10W |
| 79 |
710000792 |
BEAM HARNESS ASS'Y - Call your local BRP dealership |
| 89 |
710004951 |
RH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership This part replaces 710002411. |
| 89 |
710004952 |
LH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership This part replaces 710002412. |
| 90 |
219400070 |
Cap |
| 95 |
710002079 |
POSITIVE CABLE (BAT/SOL/FUS) - Call your local BRP dealership |
| 469 |
710001290 |
LH Rear Turn Signal Ass'y |
| 469 |
710001337 |
RH Rear Turn Signal Ass'y |
| 469a |
219800039 |
Bulb 12V/10W, Amber |
| 483 |
710004229 |
HORN - Call your local BRP dealership This part replaces 710002318. |
| 497 |
710001730 |
WIRING HARNESS_CHASSIS - Call your local BRP dealership |
